PTFE Coated Fabrics

Glassy or kevlar fabrics which are coated with PTFE which greatly improves the properties, especially strength and durability. The fabrics are supplied by the meter or in rolls. PTFE Coated Fabrics combine mechanical strength with the benefitting properties of PTFE surfaces to provide long-lasting solutions to the most demanding applications.

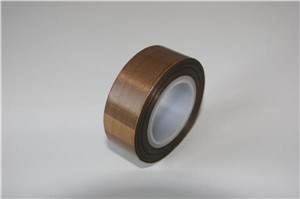

Skloteflonová folie samolepící  Skloteflonová folie  Skloteflonová folie páska








Areas of application:

PTFE foils may be connected to endless conveyor belts, which are used for packaging machines, food processing machines, for welding plastics and vulcanization and other transportation purposes.

Type of

foil

Thickness

[mm]

Weight

[gr/m²]

Standard roll

width [mm]

Non self-adhesive
nk08-135 0,08 135 1000/1300
nk08p-155* 0,08 155 1000
nk13-255 0,13 255 1000/1500
nk13p-270* 0,13 270 1000
nk15-296 0,15 296 1000
nk15p-316* 0,15 316 1000
nk25-490 0,25 490 1000/1500
nk25p-530* 0,25 530 1000/2000/2600
nk28p-580* 0,28 580 1000
nk35-650 0,35 650 1000/1500/2000/2600
nk36p-720* 0,46 880 1000/1500/2000

* premium - non-standard type, on order

Bold fields types are standard and they are usually in stock

Selfadhesive
sk08-135 0,08 135 1000
sk13-255 0,13 255 1000
sk15-296 0,15 296 1000
sk25-490 0,25 490 1000
sk35-650 0,35 650 1000
Antistatic black - Non self-adhesive
nk08-155as 0,08 146 1000
nk13-255as 0,13 255 1000
nk25-490as 0,25 490 1000/1500/2600
nk35-670as 0,35 670 1000/1500/2000/2600
Antistatic black - Self-adhesive
sk13-255as 0,13 255 1000
sk25-470as 0,25 470 1000















Properties :

  • temperature resistant from -170 ° to + 260 ° C (up to 500 ° F)
  • Self-adhesive film from -70 ° C to + 260 ° C, non-flammable!
  • high chemical resistance, acid resistance, gasoline, oil etc.
  • resistance to mildew, UV, infrared and high frequency radiation
  • possibility of use in contact with food
  • adhesive surface, non-stick, low friction coefficient
  • very long service life, resistance to aging
  • easy washability, stain surface

0.08 × 1000 mm - Non-Adhesive

0.08 × 1000 mm - Non-Adhesive

PTFE Coated Fabric

In stock: yes

19.54 without VAT

23.64 including VAT

0.08 × 1000 mm - Self-Adhesive

0.08 × 1000 mm - Self-Adhesive

PTFE Coated Fabric

In stock: yes

33.56 without VAT

40.61 including VAT

0.13 × 1000 mm - Non-Adhesive

0.13 × 1000 mm - Non-Adhesive

PTFE Coated Fabric

In stock: yes

23.95 without VAT

28.97 including VAT

0.13 × 1000 mm - Self-Adhesive

0.13 × 1000 mm - Self-Adhesive

PTFE Coated Fabric

In stock: yes

34.19 without VAT

41.37 including VAT

PTFE folie 0.13x50mm samolepící/selbsklebend (60% teflonu)

PTFE folie 0.13x50mm samolepící/selbsklebend (60% teflonu)

PTFE Coated Fabric

In stock: yes

1.93 without VAT

2.33 including VAT

0.25 × 1000 mm - Non-Adhesive

0.25 × 1000 mm - Non-Adhesive

PTFE Coated Fabric

In stock: yes

48.23 without VAT

58.35 including VAT

0.25 × 1000 mm - Self-Adhesive

0.25 × 1000 mm - Self-Adhesive

PTFE Coated Fabric

In stock: yes

55.97 without VAT

67.73 including VAT
