CONTI SYNCHRODRIVE N10 Polyurethane Open-Ended Nubbed Belts

CONTI SYNCHRODRIVE N10 (Nubbed) belts are polyurethane open-ended belts.

This is a very special type of belt, which does not have classic teeth like other timing belts, but has cylindrical protrusions offset alternately by half the pitch.

The pulley must have the same shape so that the protrusions fit exactly into it. This ensures synchronous operation and, in addition, the self-tracking of the belt. Inside the belt, there are again steel tension member, in special cases kevlar or stainless steel. The open-ended belts can also be heat welded into endless belts.

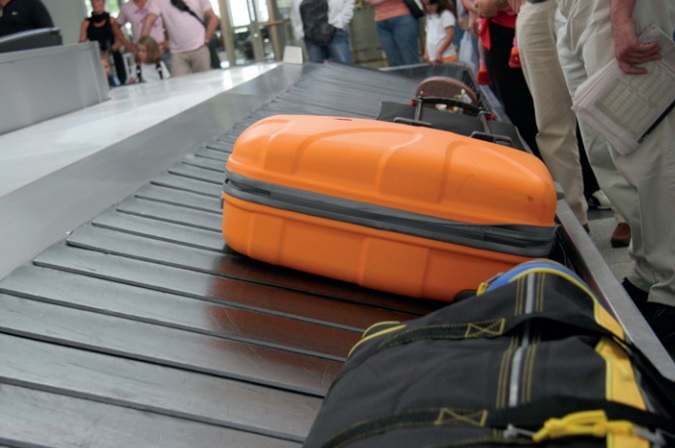

CONTI SYNCHRODRIVE N10 - Practical Use

If you submit the form, we will use your personal data (name, surname, email) to reply to your inquiry or question. All important information can be found in the Privacy Policy.

Belts Construction

CONTI SYNCHRODRIVE N10 Belt Structure

    1. Polyurethane nubs (fabric cover on teeth upon request)
    2. Tension member/steel cord
    3. Polyurethane backing (fabric cover on backing upon request)

Belts Fields of Use

The belts are used in special applications where the self-guiding property of the belt drive and the low pulley width are required and when pulleys with flanges cannot be used.

The belts also reduce vibrations generated by the so-called polygon effect.

Belts Characteristics

  • High transmitted power and long service life
  • Self-conducting properties
  • Resistant to oil, petrol, benzene, UV radiation and ozone
  • Abrasion resistance
  • Maintenance-free
  • Temperature range, depending on application, from -30 °C to +80 °C

Belt Code Description

Example:
N10 - 60 CONTI SYNCHRODRIVE

Code Part Description
N10

Profile

60

Belt width in mm

CONTI SYNCHRODRIVE

Type of belt

Caution

Pay attention to the need to use special pulleys for the N10 knob profile.

Optional Belt Surface Layers

The choice of the surface layer depends on the type of machine, the ambient temperature, the size of the pulleys, etc. Specifying the surface layer is determined by the material and the thickness of the layer.

Layer Name Material Layer Illustration
PAZ (NFT) - nylon fabric on teeth
Low coefficient of friction
Nylon PAZ (nylon fabric on teeth)
PAR (NFB) - nylon fabric on back
Surface protection
Nylon PAZ (nylon fabric on back)
PAZ + PAR (NFT + NFB) - fabric on teeth and back
Low coefficient of friction and surface protection
Nylon PAZ PAR (fabric on teeth and back)

The fabric on teeth and back can be combined with all other layers. A complete range of belt surface layers
