10B-3-16 TB 1210 (5/8 × 3/8, Steel)
Sprocket
Sprocket Parameters
Profile:
10B-3
No. of grooves/teeth:
z=16
No. of grooves/teeth
V-pulleys and Poly-V pulleys number of grooves, timing pulleys and sprockets number of teeth.
V-pulleys and Poly-V pulleys number of grooves, timing pulleys and sprockets number of teeth.
Bore:
TB 1210
Brand:
-
Brand: -
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Pitch diameter Dw (mm):
81,37
Width (mm):
42,10
Width (mm)
Face width.
Face width.
Material:
Steel
Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Sprocket Description

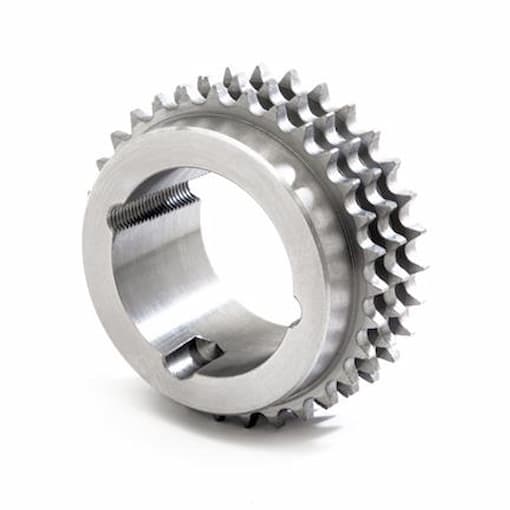

10B-3-16 TB 1210 (5/8 × 3/8, Steel) taper bored sprockets are an essential part of chain transmissions for all roller chain types according to DIN 8187 – European B series. Theese sprockets are triplex.
Sprocket Fields of Use
10B-3 taper bored sprockets are designed for general use in light and heavy industry.
They are used in drives, but can also be used for lifting or transporting material.
Sprocket Material
Steel C43.
Other materials on request.
Documents for Download
Dimensions and Parameters of 10B Taper Bored Sprockets for DIN 8187 Roller Chains
TYMA CZ Data Sheets
Czech and English (PDF 182.93 kB)
