22 - Plate Connector

Connector Open-Ended V-Belt

Price for you :

Price without VAT: 2.83

Price including VAT: 3.43 with VAT

Catalogue price excluding VAT:
2.88

At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Belt Parameters

Profile: 22/C Profile
Multiple belts: profile – no. of ribs. Caution! The number of ribs refers to the number of belt protrusions = the number of teeth on the pulley!
Délka L2 (mm): - Length L
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
Brand: - Brand: -
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Weight (kg): 0.020
Length Ld (mm): 1,00
Width (mm): 22,00
Material: Steel Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.

Belt Description

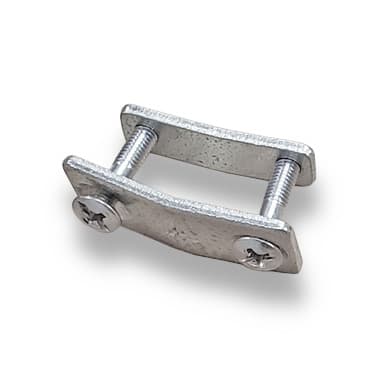

22 - Plate Connector is a punched open-ended V-belts that can be connected by mechanical connectors to endless belts of any length.

Belt Construction

Connector Open-Ended Belt Structure

  1. Belt perforation
  2. Spiral tension member
  3. Natural rubber

Belt Fields of Use

Connector Open-Ended V-belts are used where conventional endless V-belts cannot be used due to technical reasons, where it is necessary to mount the belt directly on the machine. They are suitable as spare belts, which can replace any length of V-belt. They are also used in conveyor systems.

Belt Characteristics

  • Transfer about 50% of the performance of a classical V-belt
  • High flexibility, couplings directly on the machine
  • Use of standardized SPZ, SPA, SPB, SPC pulleys
  • Temperature resistance from −40 °C to +70 °C
  • Possibility of delivery of any length from roll
  • Moderate oil-resistant
  • Electrically conductive according to ISO 9563

Documents for Download

Dimensions and Parameters of Connector Open-Ended V-Belts - Preview

Dimensions and Parameters of Connector Open-Ended V-Belts

TYMA CZ Data Sheets

Czech and English (PDF 173.52 kB)

Drive Belts - Preview

Drive Belts

TYMA CZ Catalogue

Czech and English (PDF 4.54 MB)
