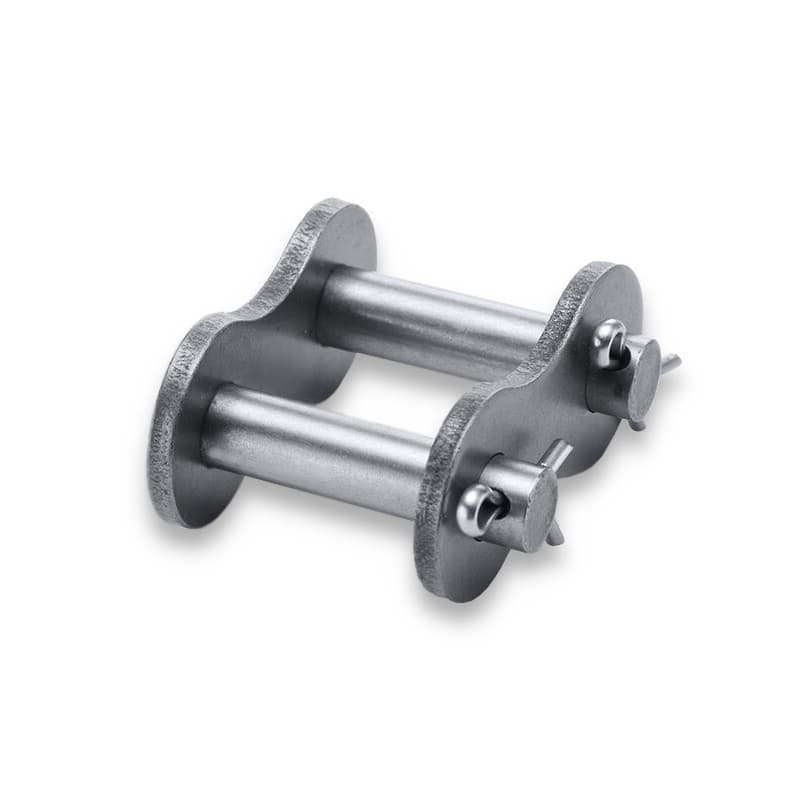

24B-1-MF KettenWulf LF Straight Connecting Link (1 1/2” × 1”, DIN 8187)
Roller Chain
Chain Parameters
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Chain Description
24B-1-MF KettenWulf LF Straight Connecting Link (1 1/2” × 1”, DIN 8187) is intended for 24B-1 simplex maintenance-free drive chains, which are standardized according to ISO 606 (DIN 8187), meaning they belong to the European B-series.
The chain consists of outer links with pins and inner links with bushes, on which freely rotating rollers are mounted. The chain is made of steel, while the bushes are made of a special sintered metal impregnated with lubricant.
KettenWulf LF
KettenWulf LF series chains are designed for applications where lubrication is difficult, undesirable, or impossible. They combine long service life with maintenance-free operation.
They are particularly suited for applications with limited maintenance access or where lubricant contamination of the surrounding environment must be avoided – such as food processing, pharmaceuticals, paint shops, or packaging lines.
The key design feature is a special sintered bush impregnated with lubricant, which releases oil only under increased friction and heat. This ensures that lubricant reaches exactly where it is needed – and only when necessary. To provide the required corrosion resistance, all components are nickel-plated. The operating temperature range is from −30 °C up to +160 °C. Higher temperature variants can be supplied upon request.
For even higher load capacity and environmental resistance, maintenance-free chains based on the reinforced TGI series are also available.
Chain Construction
- Inner link
- Outer link
- Wear-resistant chromed pin
- High-strength sintered metal bush impregnated with lubricant
- Corrosion-resistant nickel-plated roller
Chain Fields of Use
24B-1 maintenance-free roller chains according to DIN 8187 are intended for demanding applications where relubrication is not possible or where operating conditions do not allow the use of standard roller chains.
They are most commonly used as drive chains but can also be fitted with attachments or other auxiliary components for material handling and lifting applications.
Chain Material
Steel. Chain bushes are made of a special sintered metal impregnated with lubricant.
