Sliding Chain Guides for Separate Mounting

Sliding chain guides are standard sliding guides fixed separately directly on the machines. They reduce noise, friction and stress on the machine, as well as requirements for lubricants. They reduce the stress on the chain and increase its service life.

Chain sliding guides are made of special highly resistant plastic.

1T Sliding Guides for Roller Chains - Preview

1T

Sliding chain guides for separate assembly
T-profiles for single-row roller chains according to DIN 8187
Chain size: 06B-1 to 32B-1
2T Sliding Guides for Roller Chains - Preview

2T

Sliding chain guides for separate assembly
T-profiles for double-row roller chains according to DIN 8187
Chain size: 06B-2 to 32B-2
3T Sliding Guides for Roller Chains - Preview

3T

Sliding chain guides for separate assembly
T-profiles for triple-row roller chains according to DIN 8187
Chain size: 06B-3 to 16B-3
1E Sliding Guides for Roller Chains - Preview

1E

Sliding chain guides for separate assembly
T-profiles for single-row roller chains according to DIN 8187
Chain size: 06B-1 to 16B-1
2E Sliding Guides for Roller Chains - Preview

2E

Sliding chain guides for separate assembly
T-profiles for double-row roller chains according to DIN 8187
Chain size: 06B-2 to 16B-2
1BL Sliding Guides for Roller Chains - Preview

1BL

Sliding chain guides for separate assembly
T-profiles for single-row roller chains according to DIN 8187
Chain size: 06B-1 to 32B-1
1U Sliding Guides for Roller Chains - Preview

1U

Sliding chain guides for separate assembly
T-profiles for single-row roller chains according to DIN 8187
Chain size: 06B-1 to 16B-1

Chain Guides Construction

Sliding Chain Guide Construction

  1. Open chain guide
  2. Single-row roller chain

Chain Guides Fields of Use

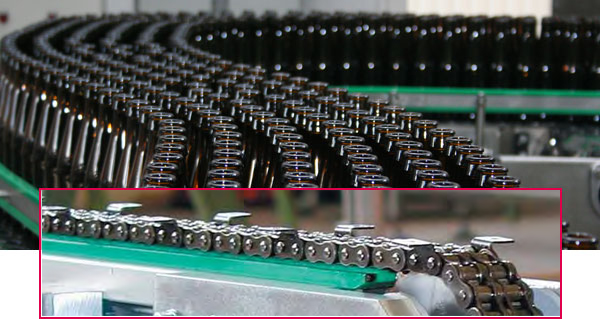

Sliding chain guides are used in many industries, in the food, woodworking, glass, ceramic industries, on all kinds of conveyors, in distribution centers, on packaging machines, etc.

Chain Guides Characteristics

  • High wear resistance
  • Excellent sliding properties, without the need for lubrication
  • High chemical and temperature resistance
  • Vibration damping
  • No need for maintenance, no corrosion
  • Temperature resistance up to +80 °C
  • Possibility of use in the food industry

Chain Guides Material

Special highly resistant PE-1000 plastic, standard in green design.

PE-1000 (PE-UHMW) is a polyethylene with very high molecular weight used in applications requiring a low coefficient of friction as well as extremely high durability, abrasion resistance, high impact strength and resistance to chemicals. It is characterized by very good machinability and is a suitable material for the production of sliding friction guides.

Chain Guide Code Description

Example:
1T (10B-1) - 20 × 20 mm (PE-1000, L = 2000 mm)

Code Part Description
1T

Guide type

10B-1

Roller chain type

20 × 20 mm

Basic dimensions b × h (width × height)

PE-1000

Guide material

L = 2000 mm

Standard guide length

Documents for Download

Dimensions and Parameters of Sliding Chain Guides - Preview

Dimensions and Parameters of Sliding Chain Guides

TYMA CZ Data Sheets

Czech and English (PDF 1.53 MB)
