1CB (12B-1) - 28 × 41.5 mm for C-5 Profile (PE-1000, L = 2000 mm)
Chain Guide
Price without VAT: 44.26€
Price including VAT: 53.55€ with VAT
Catalogue price excluding VAT:
45.15€
At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Chain Guide Parameters
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation PE-1000.
Chain Guide Description

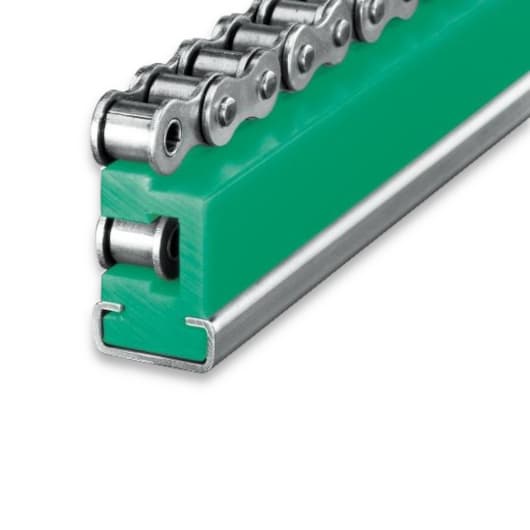

1CB (12B-1) - 28 × 41.5 mm for C-5 Profile (PE-1000, L = 2000 mm) are standard 1CB type sliding guides fixed using standardized metal C-profiles directly on the machines. They reduce noise, friction and stress on the machine, as well as requirements for lubricants. They reduce the stress on the chain and increase its service life.
Chain sliding guides are made of special highly resistant plastic.
Caution
Plastic guides for C-profiles are supplied without these C-profiles. You can find them in the Metallic C-Profiles Eshop category. Choose the size of the profile according to the information given for the type of guide.
Chain Guide Construction

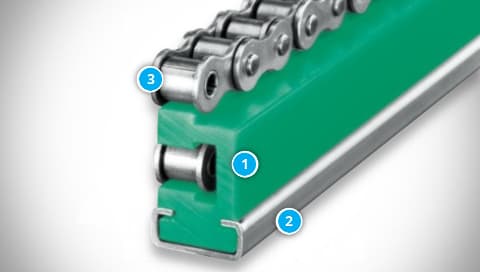

- Open/closed chain guide
- C-profile – galvanized steel profile in the shape of "C" for mounting on the machine
- Single-row roller chain
Chain Guide Fields of Use
Sliding chain guides are used in many industries, in the food, woodworking, glass, ceramic industries, on all kinds of conveyors, in distribution centers, on packaging machines, etc.
Chain Guide Characteristics
- High wear resistance
- Excellent sliding properties, without the need for lubrication
- High chemical and temperature resistance
- Vibration damping
- No need for maintenance, no corrosion
- Temperature resistance up to +80 °C
- Possibility of use in the food industry
Chain Guide Material
Special highly resistant PE-1000 plastic, standard in green design.
PE-1000 (PE-UHMW) is a polyethylene with very high molecular weight used in applications requiring a low coefficient of friction as well as extremely high durability, abrasion resistance, high impact strength and resistance to chemicals. It is characterized by very good machinability and is a suitable material for the production of sliding friction guides.
Documents for Download
Dimensions and Parameters of 1CB Sliding Chain Guides
TYMA CZ Data Sheets
Czech and English (PDF 152.67 kB)
Dimensions and Parameters of C-Profiles for Sliding Guides
TYMA CZ Data Sheets
Czech and English (PDF 180.31 kB)
Related Products
Metallic C-Profiles
Standardized metal profiles for attaching plastic chain or belt guides to the machine.
Drive Roller Chains (DIN 8187)
06B, 08B, 10B, 12B ... 72B roller chains DIN 8187 - B series (european) - simplex, duplex or triplex and many other special types.
Universal Chain Tensioners
Sliding blocks, sprockets with screw and idler sprockets for tensioning of industrial roller chains during operation.
