RAPPLON QUICKSPLICE Flat Belts for Folder-Gluer Lines
Easy replacement within 6 minutes, high edge stability, long service life and energy savings. Swiss made. We maintain selected types in stock.

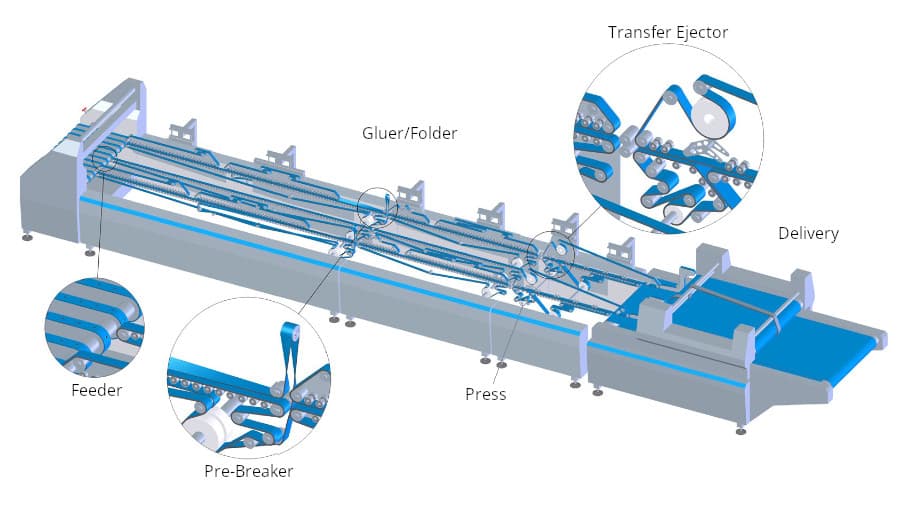

With this article, we head to Switzerland. This is where the high-performance RAPPLON flat belts from the Ammeraal Beltech portfolio are manufactured. A wide range of types and designs is available. However, we will focus on their use in Folder-Gluer machines – production lines for carton box folding and gluing.
RAPPLON QUICKSPLICE Flat Belts for Carton Folding and Gluing
In the packaging industry, modern production lines for folding and processing die-cut cartons place high demands on drive components – and therefore require belts capable of exceptional performance.
Line speeds of over 10 m/s are now standard. Absolute precision and reliability are essential, even at production volumes once considered unthinkable. The belts run in guide rails between flanges. Machine design involves frequent flexing and twisting around small-diameter pulleys. When a belt needs to be replaced, installation time is absolutely critical.
RAPPLON QUICKSPLICE belts for carton folding lines are engineered to meet these challenges. They are easy to install and do not require re-tensioning. They track reliably, run very quietly, and show no edge fraying. Fast splicing helps minimize downtime.
High-Performance RAPPLON QUICKSPLICE Flat Belts in the TYMA CZ Eshop
To ensure the shortest possible lead times, we have decided to keep selected belt rolls in stock. With our own dedicated QUICKSPLICE joining equipment, we produce endless RAPPLON belts with exceptional joint strength and precision.
Advantages of RAPPLON for Folder-Gluer Machines – at a Glance:
-
Fast Installation
Thanks to compact tools, RAPPLON belts with QUICKSPLICE technology can be replaced within 6 minutes. -
Edge Stability
The belts provide excellent resistance to edge wear and fraying. -
Long Service Life
High-quality XNBR rubber covers ensure excellent grip on paper, high abrasion resistance and extended service life without unwanted surface glazing. -
Flexibility and Energy Efficiency
RAPPLON belts handle complex belt paths without difficulty. According to manufacturer tests, they have demonstrated up to 40% lower energy losses caused by repeated flexing and twisting within the drive system compared to competing belts.
Innovative QUICKSPLICE Joining System
The modern belt design simplifies both splicing and installation. The process is fast, precise and reliable. No specific running direction needs to be observed. Splicing can be carried out directly on the machine, without the use of adhesives and without the need for extensive operator training.
In brief: QUICKSPLICE is based on a belt construction prepared for a finger splice, the use of dedicated splicing equipment and adherence to a simple procedure. The result is a high-strength joint with precisely defined geometry and controlled thickness.

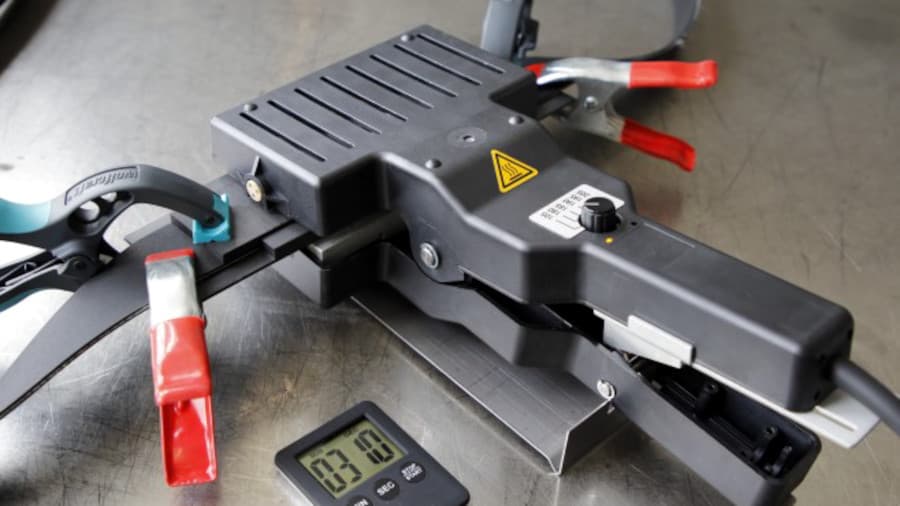

At TYMA CZ, we use a RAPPLON QSP 60 LF PLUS splicing unit for the production of endless RAPPLON QUICKSPLICE belts in any required length and in widths up to 50 mm.
RAPPLON GG E10.30 RRQ FG in Stock at TYMA CZ
Special belts for carton packaging lines are available either in open length or joined to the exact length required for a specific machine.

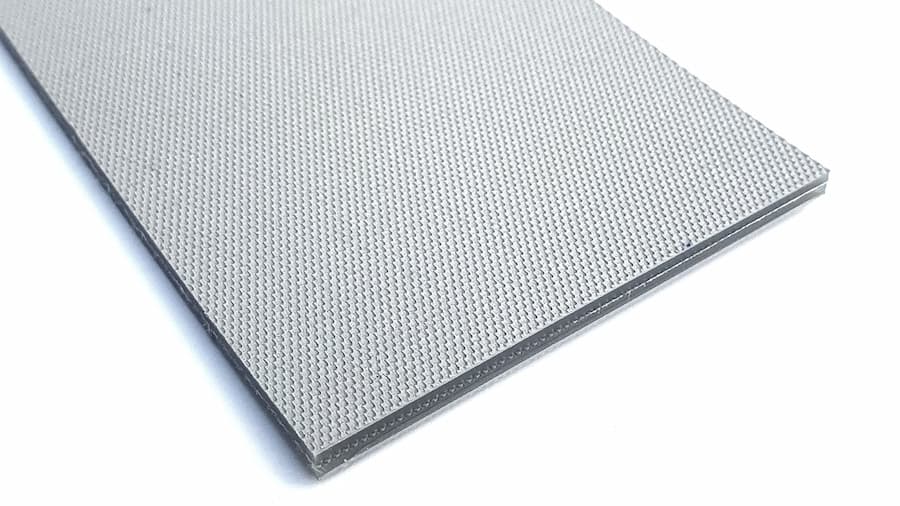

For immediate production and dispatch, we keep RAPPLON GG E10.30 RRQ FG belt rolls in stock – product code: FBGG054659.
These belts are classified by the manufacturer as Folder / Transport belts. They have a thickness of 3 mm and are designed for pulleys with a minimum diameter of 30 mm. The tensile core consists of polyester fabric, while the cover layers are made of grey XNBR rubber with a uniform rough surface finish.
The belts provide excellent grip and are suitable for use in food-industry applications. They comply with relevant EU regulations (EC 1935/2004 and EU 10/2011) and meet FDA requirements for food-contact materials. They are antistatic.
RAPPLON Belts in the TYMA CZ Eshop
High-Performance RAPPLON Flat Belts

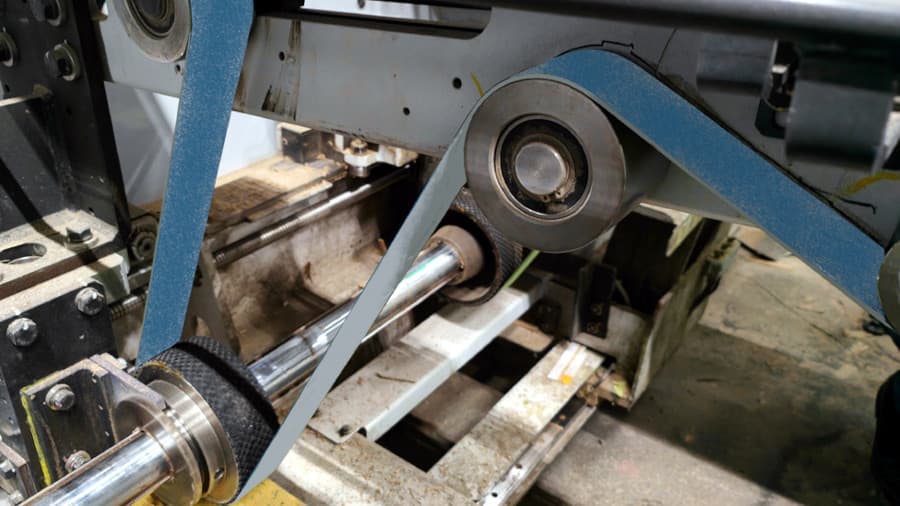

RAPPLON flat belts are designed for power transmission, process applications, and roller conveyor drives. Their product range is extensive, offering suitable solutions even for highly specific applications. This broad scope is reflected in the wide variety of available designs.
The belt construction is based on a tensile fabric or foil, coated on both sides. Depending on the belt type, the tensile member is made of polyamide, polyester or aramid, or of flexible thermoplastic elastomers or polyurethane.
The cover materials are even more diverse. Available options include natural or synthetic rubber, chrome-tanned leather, and various thermoplastics in a range of surface finishes. Nonwoven surface materials are also available.
Depending on the belt type, RAPPLON belts are joined either by the classic method (skived and adhesive-bonded joint) or by the advanced QUICKSPLICE method.
Currently in stock at TYMA CZ:
-
RAPPLON GG E10.30 RRQ FG (product code: FBGG054659)
For carton folding and gluing machines -
RAPPLON TG E04.12 RQ (product code: FBTG054624)
For mail sorting centers, paper processing, and printing applications -
RAPPLON GG E08.20 RRQ (product code: FBGG054614)
For roller conveyors in logistics centers and for textile-industry applications
RAPPLON Belts in the TYMA CZ Eshop
Swiss Made

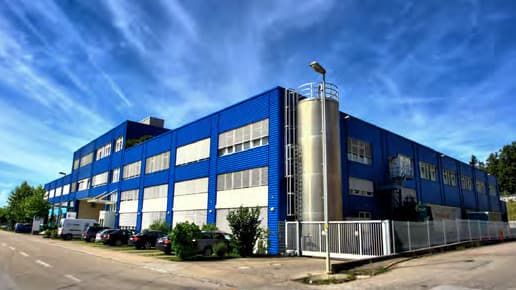

The origins of RAPPLON flat belt manufacturing date back to the late 1950s.
At that time, Leder & Co. AG began producing modern polyamide drive belts in Rapperswil-Jona, in the canton of St. Gallen, Switzerland.
The modern production facility is still located there, employing approximately 100 people and covering 2,800 m2 of production space. Since 2000, it has been part of the Ammeraal Beltech Group.
RAPPLON belts proudly carry the Swiss Made designation.
Not Sure Which Belt Is the Right Choice?
We will be happy to help you find the optimal solution for your specific machine.
We are an authorized distributor of Ammeraal Beltech and its regional service partner.
