Sliding Guides for Flat Belts (PC Type)
Sliding flat belt guides (PC type) are standard sliding guides fixed using standardized metal C-profiles directly on the machines. They reduce noise, friction and stress on the machine, as well as requirements for lubricants. They reduce the stress on the flat belt and increase its service life.
The sliding belt guides are made of a special highly resistant plastic.
Caution
Plastic guides for C-profiles are supplied without these C-profiles. You can find them in the Metallic C-Profiles Eshop category. Choose the size of the profile according to the information given for the type of guide.
Products are sorted by name in ascending order.
PC - 20 × 10 mm for C-3 Profile (PE-1000, L = 2000 mm)
Belt Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
15.23€ excl. VAT
18.43€ incl. VAT
PC - 20 × 15 mm for C-3 Profile (PE-1000, L = 2000 mm)
Belt Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
19.19€ excl. VAT
23.22€ incl. VAT
PC - 20 × 20 mm for C-3 Profile (PE-1000, L = 2000 mm)
Belt Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
23.84€ excl. VAT
28.84€ incl. VAT
PC - 28 × 10 mm for C-5 Profile (PE-1000, L = 2000 mm)
Belt Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
19.19€ excl. VAT
23.22€ incl. VAT
PC - 28 × 15 mm for C-5 Profile (PE-1000, L = 2000 mm)
Belt Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
23.84€ excl. VAT
28.84€ incl. VAT
PC - 28 × 20 mm for C-5 Profile (PE-1000, L = 2000 mm)
Belt Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Price on Request The belt guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.
PC - 38 × 10 mm for C-9 Profile (PE-1000, L = 2000 mm)
Belt Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
23.84€ excl. VAT
28.84€ incl. VAT
PC - 38 × 15 mm for C-9 Profile (PE-1000, L = 2000 mm)
Belt Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
29.80€ excl. VAT
36.06€ incl. VAT
PC - 38 × 20 mm for C-9 Profile (PE-1000, L = 2000 mm)
Belt Guide
At Supplier
On Request The delivery time will be determined after receiving information about up-to-date availability from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. Estimated time of shipping will be answered along with the price by email.
Price on Request The belt guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.
Products are sorted by name in ascending order.

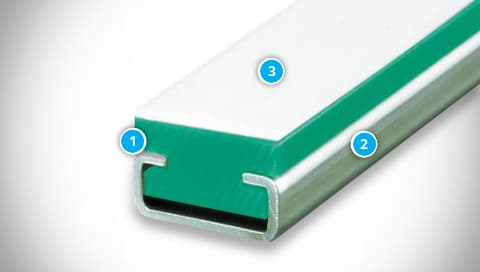

Belt Guides Construction
- Open belt guide
- C-profile – galvanized steel profile in the shape of "C" for mounting on the machine
- Flat belt
Belt Guides Fields of Use
Sliding belt guides for C-profiles are intended for all types of flat belts.
They are most often used for conveyors in the glass, food, woodworking, ceramic industries, sorting and distribution centers, airports or the automotive industry, etc.
Belt Guides Material
Special highly resistant PE-1000 plastic, standard in green design.
PE-1000 (PE-UHMW) is a polyethylene with very high molecular weight used in applications requiring a low coefficient of friction as well as extremely high durability, abrasion resistance, high impact strength and resistance to chemicals. It is characterized by very good machinability and is a suitable material for the production of sliding friction guides.
Belt Guide Code Description
Example:
PC - 20 × 20 mm for C-3 Profile (PE-1000, L = 2000 mm)
| Code Part | Description |
|---|---|
| PC |
Flat belt guide type |
| 20 × 20 mm |
Basic dimensions b × h (width × height) |
| C-3 |
The size of the corresponding C-profile |
| PE-1000 |
Guide material |
| L = 2000 mm |
Standard guide length |
Documents for Download
Dimensions and Parameters of PC Sliding Belt Guides
TYMA CZ Data Sheets
Czech and English (PDF 132.04 kB)
Dimensions and Parameters of C-Profiles for Sliding Guides
TYMA CZ Data Sheets
Czech and English (PDF 180.31 kB)
