ContiTech Air Actuators
ContiTech air actuators are made of special highly durable rubber. The complete air spring is made of a rubber-textile bellows and connecting parts with an opening for air supply.
They enable handling of equipment, machines and their parts while ensuring pneumatic suspension and isolation of vibrations and shocks.
The broad product range is designed for a variety of pneumatic applications from 0.5 kN to 440 kN lifting power using pneumatic bellows with diameters of 60 mm to 950 mm and a stroke of up to 455 mm.
Typical Applications
ContiTech air actuators are used in a variety of industrial applications.
They are used mainly in conveyors and motor vehicles, in agricultural, food, textile or paper machines, in saws, presses and many other machines.
Properties
- Low construction height
- Possibility of angular movement
- Low wear
- Long service life, no maintenance required
- High lateral stability
- Low cost and easy installation
Air Actuator Product Series
To find a specific product, please use the official ContiTech Airspring Catalog.
Depending on the size and model range, there is a choice of single, double or triple bellows.
| Model | Description | Illustration |
|---|---|---|

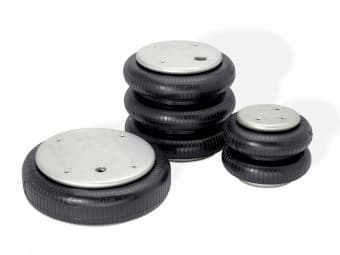

Series C |
Air actuators with permanently mounted connection parts. |
 |

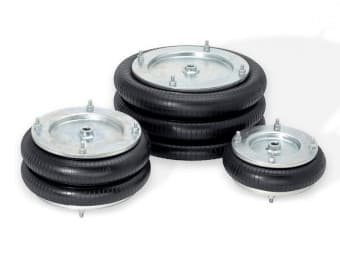

Series D |
Air actuators with removable connecting parts. |
 |

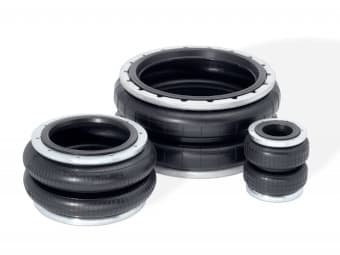

Series R |
Air actuators with bead ring connecting parts. |
 |

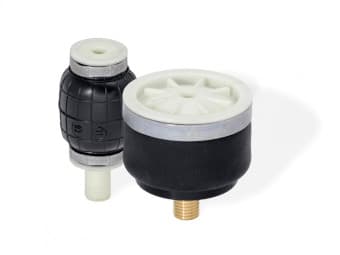

Series S |
Rolling lobe actuator with plastic connection parts. |
 |
Documents for Download
Related Products
ContiTech SCHWINGMETALL and MEGI Buffers
Buffers, springs, impact mounts, combined elements and special hydro mounts for flexible mounting of machines and their parts.
ContiTech ROTAFRIX Friction Wheels, Rings and Pulleys
Friction drive and anti-vibration wheels and rubber rings for driving cylinders, drums and other equipment.
Questions about This Air Actuator Category?
Don’t hesitate to contact us with any questions about products in this category.
Air Actuator Manufacturer Profile
Continental ContiTech is a global technology company focused on the development and manufacture of industrial solutions for power transmission, material handling, and other key areas of modern industry. It is an important partner across a wide range of industrial sectors – from the automotive industry and rail vehicles to aviation and industrial machinery.
ContiTech is a part of the Continental AG group, which, with dozens of production sites and tens of thousands of employees worldwide, ranks among the largest European industrial companies.
We are an authorized distributor and a preferred partner of Continental ContiTech Industrial Solutions within the Partner of Choice program.
