Data Center Hoses
Data center hoses are designed for the distribution of coolant in Direct-to-Chip liquid cooling systems for servers, used where air cooling is no longer sufficient – from the coolant supply between the building’s distribution system and the server rack to the cold plate on the chip (CPU/GPU).
The hoses are manufactured from peroxide-cured EPDM, which reduces the risk of media contamination, with either braided textile or spiral wire reinforcement, and a flame-resistant outer cover rated UL 94 HB or UL 94 V-0. Hose diameter decreases progressively through the system, from the coolant source to the chip. Key selection parameters include the hose’s position in the system (supply line, in-rack distribution, or direct chip connection), coolant compatibility, working pressure, and temperature range.
The Complete Continental Industrial Hose Range
The Continental industrial hose portfolio comprises three independent product lines. Two of them focus primarily on rubber hoses and are geographically referred to as EMEA and AMERICAS. The third pillar is the thermoplastic hose range, formerly known under the Merlett brand.
The full current range, including detailed product descriptions and individual data sheets, is available through the online hose finders:
- Continental Industrial Hoses (EMEA)
- Continental Industrial Hoses (AMERICAS)
- Continental Thermoplastic Hoses (formerly Merlett)
We supply products from all three product lines listed above.
Example Hose Types
The data center liquid cooling hose range currently covers single-phase solutions (without a phase change of the coolant).
Source Line Hoses (Source → Manifold)
| Designation | Description | Preview |
|---|---|---|

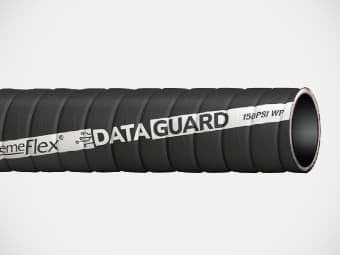

EXTREMEFLEX DATAGUARDSpecialty |
Ultra-flexible supply hose with the largest diameters, vacuum resistance, and flame resistance rated UL 94 HB Tube: peroxide-cured EPDM, reinforcement: spiral-plied synthetic fabric with a double steel wire helix, cover: EPDM Temperature range: −40 °C to +93 °C |
 |
DATAGUARD UL 94 HBSpecialty |
Hose rated UL 94 HB for flame resistance, for coolant supply between the building’s distribution system and the rack Tube: peroxide-cured EPDM, reinforcement: braided synthetic yarn, cover: EPDM Temperature range: −40 °C to +99 °C |
 |
DATAGUARD UL 94 V-0Specialty |
Supply hose with a higher flame-resistance class for the cover: UL 94 V-0 Tube: peroxide-cured EPDM, reinforcement: braided synthetic yarn, cover: CPE Temperature range: −40 °C to +99 °C |
|
In-Rack Distribution Hoses (Manifold → Blade → Chip)
| Designation | Description | Preview |
|---|---|---|
FLEXCOOL JUMPERSpecialty |
Hose rated UL 94 V-0 for flame resistance, for distributing the medium from the manifold to the individual server blades Tube: peroxide-cured EPDM, reinforcement: braided synthetic yarn, cover: CPE Temperature range: −40 °C to +88/+99 °C (depending on the connection method) |
 |

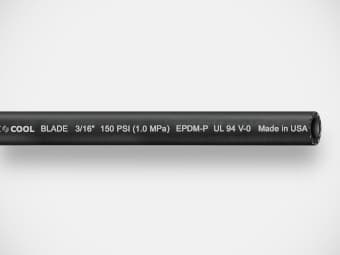

FLEXCOOL BLADESpecialty |
The smallest hose in the system, rated UL 94 V-0 for flame resistance, carrying coolant directly to the cold plate on the chip (CPU/GPU) Tube: peroxide-cured EPDM, reinforcement: braided synthetic yarn, cover: CPE Temperature range: −40 °C to +82/+99 °C (depending on the connection method) |
 |
Typical Applications

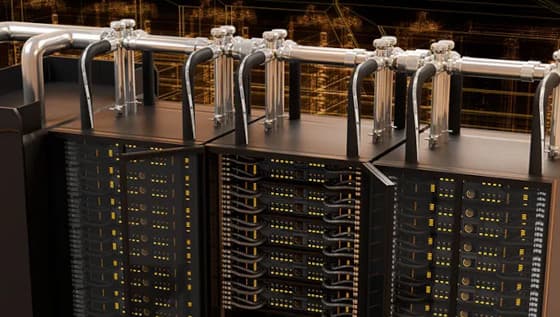

This solution is used for high-performance servers and computing equipment (AI, HPC) in hyperscale data centers and AI factories, when air cooling is insufficient to remove heat from extremely high-load chips. Given the enclosed nature of the system and its operating conditions, the hoses are designed to minimize media contamination while also meeting demanding fire-safety requirements.
The hoses carry the coolant throughout the entire data center – from the source, through the chiller, to the Coolant Distribution Unit (CDU), and onward into the server racks. Within the rack, the hoses then distribute coolant between the manifold and the individual server blades, inside which the smallest hoses in the system deliver coolant to the cold plates fitted on the chips (CPU/GPU).
Packaging and Available Lengths
Industrial hoses are supplied in original manufacturer coils. We do not cut hoses or customize them to specific lengths.
Available coil lengths will be provided in response to your inquiry. You can also find them in the manufacturer's online hose finders: Continental Hose Range.
Documents for Download
Questions about This Hose Category?
Don’t hesitate to contact us with any questions about products in this category.
Hose Manufacturer Profile
Continental ContiTech is a global technology company focused on the development and manufacture of industrial solutions for power transmission, material handling, and other key areas of modern industry. It is an important partner across a wide range of industrial sectors – from the automotive industry and rail vehicles to aviation and industrial machinery.
The portfolio also includes a range of thermoplastic hoses, formerly known under the traditional Italian Merlett brand, which has been part of Continental since 2019.
ContiTech is a part of the Continental AG group, which, with dozens of production sites and tens of thousands of employees worldwide, ranks among the largest European industrial companies.
We are an authorized distributor and a preferred partner of Continental ContiTech Industrial Solutions within the Partner of Choice program.
