Extraction, Ventilation and Ducting Hoses
Industrial hoses for extraction, ventilation, and ducting are used for removing dust, sawdust, and bulk materials from machine tools, extracting fumes, vapors, and hot air in industrial facilities, and for air distribution in HVAC and ventilation systems.
Ducting hoses are manufactured exclusively from thermoplastic materials – most commonly PVC, PU, or EVA; for high-temperature applications, neoprene or silicone on a fiberglass carrier – with spiral reinforcement or without reinforcement. Key selection parameters include the type of medium being extracted, temperature range, and requirements for antistatic properties or chemical resistance.
The Complete Continental Industrial Hose Range
The Continental industrial hose portfolio comprises three independent product lines. Two of them focus primarily on rubber hoses and are geographically referred to as EMEA and AMERICAS. The third pillar is the thermoplastic hose range, formerly known under the Merlett brand.
The full current range, including detailed product descriptions and individual data sheets, is available through the online hose finders:
- Continental Industrial Hoses (EMEA)
- Continental Industrial Hoses (AMERICAS)
- Continental Thermoplastic Hoses (formerly Merlett)
We supply products from all three product lines listed above.
Example Hose Types
The range of ducting hoses is extensive. To help you navigate it, we have selected a few representative hose types for each of the main applications.
Dust, Chip and Material Extraction Hoses
| Designation | Description | Preview |
|---|---|---|

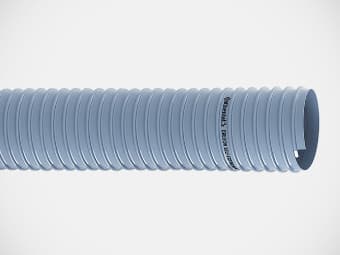

OREGONEntry Level |
General-purpose hose for extracting dust, sawdust, and light dry bulk materials Tube: PVC, reinforcement: rigid PVC spiral, cover: PVC Temperature range: −10 °C to +60 °C |
 |

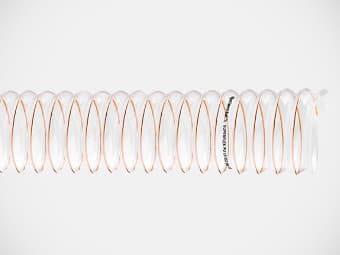

SUPERFLEX PU LRMid-Range |
Polyurethane hose for extraction and conveying of abrasive materials Tube: PU, reinforcement: copper-plated steel spiral, cover: PU Temperature range: −40 °C to +90 °C |
 |

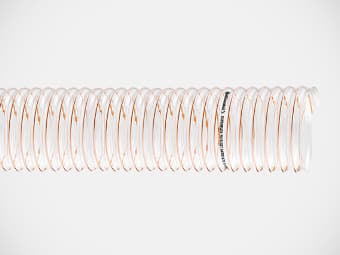

SUPERFLEX PU R ASPremium |
Permanently antistatic hose for extracting abrasive materials in demanding operations Tube: PU, reinforcement: copper-plated steel spiral encased in PU, cover: PU Temperature range: −40 °C to +90 °C |
 |

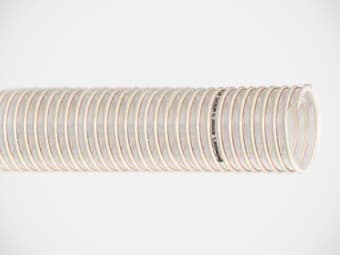

NOVIVENT PU ANTISTATICSpecialty |
Specialty antistatic hose for abrasive materials and dry food products Tube: PU, reinforcement: rigid PVC spiral and copper antistatic wire, cover: PU Temperature range: −25 °C to +85 °C |
 |
Air and Fume Extraction Hoses
| Designation | Description | Preview |
|---|---|---|

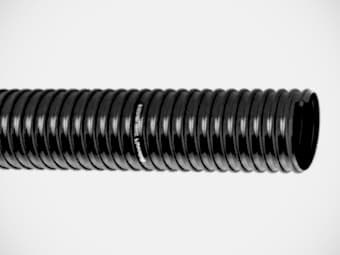

GUAINA VINILFLEX NEntry Level |
General-purpose hose for extracting air, fumes, and light particles Tube: PVC, reinforcement: PVC spiral, cover: PVC Temperature range: −10 °C to +60 °C |
 |

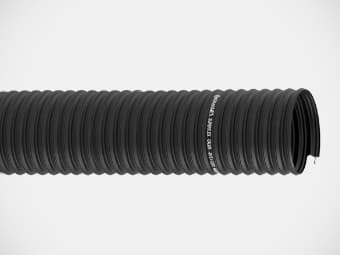

SUPERFLEX CALORMid-Range |
Hose for extracting hot air and acid fumes up to +125 °C Tube: TPV, reinforcement: galvanized steel spiral, cover: TPV Temperature range: −25 °C to +125 °C |
 |

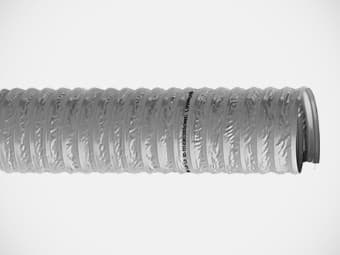

TERMORESISTENTE KLL 125Premium |
Heat-resistant hose with fire rating for extracting hot air and fumes Tube: PVC-coated polyester fabric, reinforcement: galvanized steel spiral, cover: PVC-coated polyester fabric Temperature range: −5 °C to +80 °C (short-term up to +110 °C) |
 |

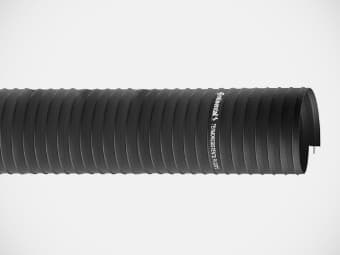

TERMORESISTENTE PU 200°CSpecialty |
Specialty high-temperature hose for extracting hot air and fumes Tube: PU-coated polyester fabric, reinforcement: galvanized steel spiral, cover: PU-coated polyester fabric Temperature range: −40 °C to +200 °C |
 |
Ventilation Hoses
| Designation | Description | Preview |
|---|---|---|

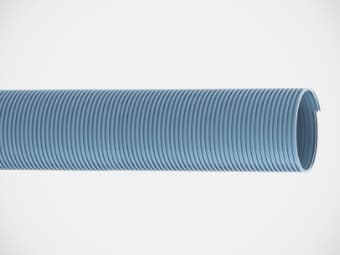

EVA INDUSTRIALEntry Level |
General-purpose hose for ventilation and extraction of air, dust, and gases Tube: EVA, reinforcement: spiral-formed EVA (no separate reinforcement), cover: EVA Temperature range: −30 °C to +60 °C |
 |

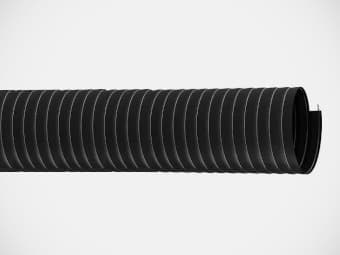

TERMOFLEX 150°CMid-Range |
Heat-resistant ventilation hose for hot air and fumes Tube: CR, reinforcement: galvanized steel spiral, cover: CR Temperature range: −50 °C to +150 °C |
 |

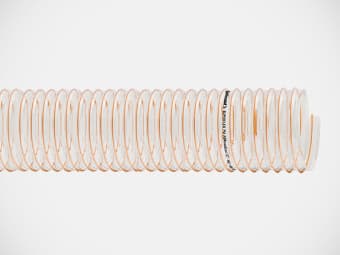

SUPERFLEX PU ALLROUNDDUCTPremium |
Antistatic ventilation hose for combined extraction and ventilation in demanding operations Tube: PU, reinforcement: copper-plated steel spiral, cover: PU Temperature range: −40 °C to +90 °C |
 |

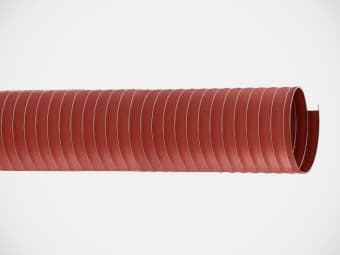

TERMOFLEX 300°CPremium |
Specialty high-temperature ventilation hose for extremely hot air and fumes Tube: silicone-coated fiberglass fabric, reinforcement: galvanized steel spiral, cover: silicone-coated fiberglass fabric Temperature range: −85 °C to +300 °C |
 |
Typical Applications
Industrial extraction and ventilation hoses are used in facilities where air, dust, fumes, vapors, or hot air must be removed – wherever maintaining a clean and safe working environment is a condition of operation.

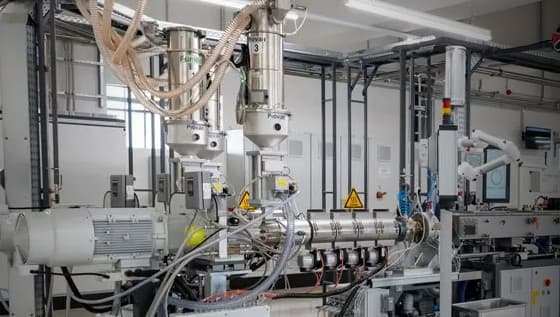

In woodworking and joinery, they are used for extracting sawdust, wood shavings, and fine wood dust from machine tools. In welding shops, paint booths, and chemical processing facilities, they are used for removing fumes, vapors, and aggressive substances, where antistatic or chemically resistant versions are required. In industrial HVAC and air conditioning of halls and process installations, flexible ducting hoses are used for air distribution. For extremely hot air, exhaust gases, and furnace applications, heat-resistant hoses with neoprene or silicone surfaces on a fiberglass carrier are used, capable of handling temperatures up to 300 °C.
Documents for Download
Questions about This Hose Category?
Don’t hesitate to contact us with any questions about products in this category.
Hose Manufacturer Profile
Continental ContiTech is a global technology company focused on the development and manufacture of industrial solutions for power transmission, material handling, and other key areas of modern industry. It is an important partner across a wide range of industrial sectors – from the automotive industry and rail vehicles to aviation and industrial machinery.
The portfolio also includes a range of thermoplastic hoses, formerly known under the traditional Italian Merlett brand, which has been part of Continental since 2019.
ContiTech is a part of the Continental AG group, which, with dozens of production sites and tens of thousands of employees worldwide, ranks among the largest European industrial companies.
We are an authorized distributor and a preferred partner of Continental ContiTech Industrial Solutions within the Partner of Choice program.
