Food and Beverage Hoses
Industrial food and beverage hoses are designed for suction and discharge of beverages and food liquids, as well as for direct contact with food products in food processing facilities; others are intended for sanitation and pressure washing of food processing lines and equipment. In all cases, these are applications subject to strict hygiene requirements for materials and product safety.
Food and beverage hoses are manufactured from thermoplastic materials, most commonly PVC-based – including phthalate-free (PHF) versions and versions with FDA certification – with steel or PVC spiral and textile reinforcement. Sanitation hoses are made from rubber compounds with a cover resistant to hot water and animal fats, also available with Microban antimicrobial additive. Key selection parameters include the type of medium, required certification, working pressure, and temperature range.
The Complete Continental Industrial Hose Range
The Continental industrial hose portfolio comprises three independent product lines. Two of them focus primarily on rubber hoses and are geographically referred to as EMEA and AMERICAS. The third pillar is the thermoplastic hose range, formerly known under the Merlett brand.
The full current range, including detailed product descriptions and individual data sheets, is available through the online hose finders:
- Continental Industrial Hoses (EMEA)
- Continental Industrial Hoses (AMERICAS)
- Continental Thermoplastic Hoses (formerly Merlett)
We supply products from all three product lines listed above.
Example Hose Types
The range of food and beverage hoses is extensive. To help you navigate it, we have selected a few representative hose types for each of the main applications.
- Light Food and Beverage Hoses
- Reinforced Food and Beverage Suction & Discharge Hoses
- Food Industry Washdown Hoses
Light Food and Beverage Hoses
| Designation | Description | Preview |
|---|---|---|

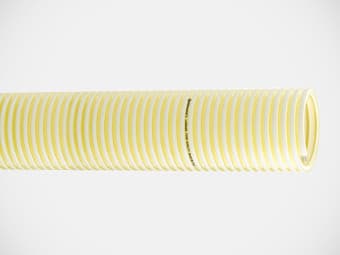

LUISIANAEntry Level |
Spiral hose for suction and discharge of food-grade liquids Tube: PVC, reinforcement: rigid PVC spiral, cover: PVC Temperature range: −5 °C to +60 °C |
 |

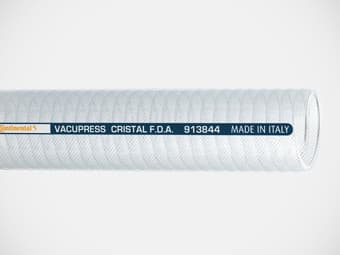

VACUPRESS CRISTAL FDAMid-Range |
Suction and discharge hose for food-grade media and dry additives, ortho-phthalate-free (PHF) Tube: PVC, reinforcement: galvanized steel spiral and polyester yarn, cover: PVC Temperature range: −5 °C to +65 °C |
 |

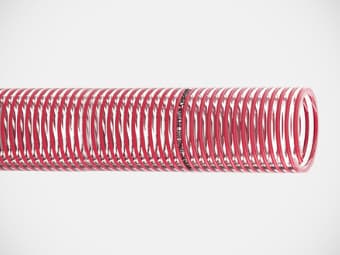

NEVADA PHFSpecialty |
Heavy-duty hose for wineries and liquids with up to 20 % alcohol content, ortho-phthalate-free (PHF) Tube: PVC, reinforcement: rigid PVC spiral, cover: PVC Temperature range: −5 °C to +60 °C |
 |
Reinforced Food and Beverage Suction & Discharge Hoses
| Designation | Description | Preview |
|---|---|---|

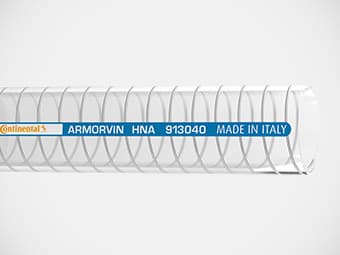

ARMORVIN HNAEntry Level |
Suction and discharge hose for liquid food products Tube: PVC, reinforcement: galvanized steel spiral, cover: PVC Temperature range: −5 °C to +65 °C |
 |

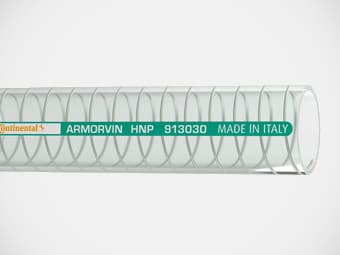

ARMORVIN HNPMid-Range |
Heavy-duty suction and discharge hose for food-grade liquids in demanding applications Tube: PVC, reinforcement: galvanized steel spiral, cover: PVC Temperature range: −5 °C to +65 °C |
 |

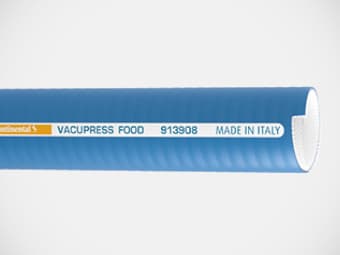

VACUPRESS FOODPremium |
Multi-layer suction and discharge hose for liquids including liquid food-grade products per FDA requirements Tube: TPV, reinforcement: steel spiral and polyester yarn, cover: TPV Temperature range: −25 °C to +80 °C |
 |

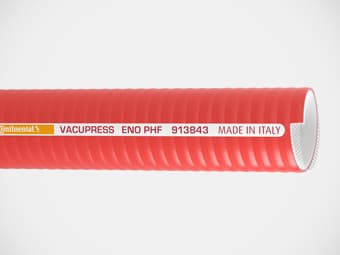

VACUPRESS ENO PHFSpecialty |
Reinforced hose for wine and beverages up to 20 % alcohol with outstanding flexibility, ortho-phthalate-free (PHF) Tube: PVC, reinforcement: steel spiral and polyester yarn, cover: PVC Temperature range: −25 °C to +60 °C |
 |
Food Industry Washdown Hoses
| Designation | Description | Preview |
|---|---|---|

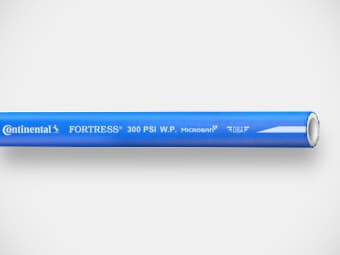

FORTRESS 300Entry Level |
Heavy-duty hose for hot water washdown in food processing Tube: NBR, reinforcement: spiral synthetic yarn, cover: Carbryn/Microban or Chemivic Temperature range: −29 °C to +99 °C |
 |

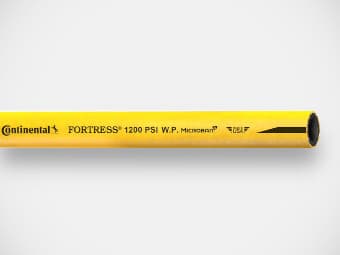

FORTRESS 1200Premium |
High-pressure washdown hose for food processing facilities Tube: NBR, reinforcement: braided synthetic yarn, cover: Carbryn/Microban Temperature range: −29 °C to +99 °C |
 |
Typical Applications

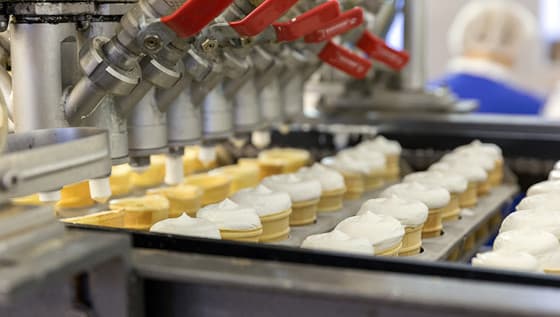

Food and beverage hoses are used in production facilities where they come into direct contact with food or beverages. Other hoses in this category are designed for sanitation of food processing lines and equipment.
In dairy, brewing, and beverage production, they are used for transferring milk, whey, beer, and other beverages between tanks, processing lines, and filling equipment. In winemaking and distilling, phthalate-free hoses are used that do not affect the taste or aroma of the product. In meat and fish processing, they are used for pumping marinades, brines, and other food liquids.
For pressure washing and sanitation of food processing facilities – dairies, slaughterhouses, breweries, and canneries – specialized hoses with antimicrobial cover are available, resistant to hot water, oils, and animal fats.
Documents for Download
Questions about This Hose Category?
Don’t hesitate to contact us with any questions about products in this category.
