Oil and Fuel Hoses
Industrial hoses for oils and fuels are designed for the safe transfer of petroleum products – from lubricating and hydraulic oils through fuels to heating oils – in industrial and agricultural applications as well as in marine environments. The range includes hoses for pumping and dispensing oils and fuels, along with specialized hoses for applications with higher demands on safety and operational reliability.
Oil and fuel hoses are manufactured from rubber or thermoplastic compounds with an inner layer resistant to petroleum products, and with spiral or braided reinforcement providing mechanical strength. Key selection parameters include the type of medium being conveyed, working pressure, inner diameter, temperature range, and antistatic requirements – these determine the hose’s suitability for a given application and operational safety.
The Complete Continental Industrial Hose Range
The Continental industrial hose portfolio comprises three independent product lines. Two of them focus primarily on rubber hoses and are geographically referred to as EMEA and AMERICAS. The third pillar is the thermoplastic hose range, formerly known under the Merlett brand.
The full current range, including detailed product descriptions and individual data sheets, is available through the online hose finders:
- Continental Industrial Hoses (EMEA)
- Continental Industrial Hoses (AMERICAS)
- Continental Thermoplastic Hoses (formerly Merlett)
We supply products from all three product lines listed above.
Example Hose Types
The range of oil and fuel hoses is extensive. To help you navigate it, we have selected a few representative hose types for each of the main applications.
Oil Hoses
| Designation | Description | Preview |
|---|---|---|
VACUPRESS OILEntry Level |
Suction and discharge hose for oils and diesel fuel Tube: PVC/PU/NBR, reinforcement: galvanized steel spiral and polyester yarn, cover: PVC/PU/NBR Temperature range: −25 °C to +55 °C |
 |

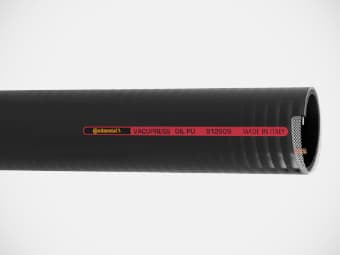

VACUPRESS OIL PUMid-Range |
Antistatic suction and discharge hose for oils and diesel fuel, abrasion resistant Tube: PVC/PU/NBR, reinforcement: galvanized steel spiral, polyester yarn and copper braid, cover: PU Temperature range: −25 °C to +55 °C |
 |
ORTACPremium |
General-purpose hose with maximum abrasion resistance – non-conductive Tube: NBR, reinforcement: spiral synthetic yarn, cover: Carbryn Temperature range: −29 °C to +99 °C |
 |
ARMORVIN TOTAL PU OIL TPHFSpecialty |
Polyurethane suction and discharge hose for abrasives, oils, and fatty food products Tube: PU, reinforcement: steel spiral, cover: PU Temperature range: −25 °C to +90 °C |
 |
Fuel Hoses
| Designation | Description | Preview |
|---|---|---|
AGGIE GASEntry Level |
Hose for fuel dispensing from barrel pumps where certification is not required Tube: NBR, reinforcement: spiral synthetic yarn, cover: Chemivic Temperature range: −34 °C to +60 °C |
 |
PACERMid-Range |
Lightweight flexible hose for dispensing gasoline (E10) and diesel (B5) Tube: NBR, reinforcement: spiral synthetic yarn and conductive grounding wire, cover: Chemivic Temperature range: −40 °C to +60 °C |
 |

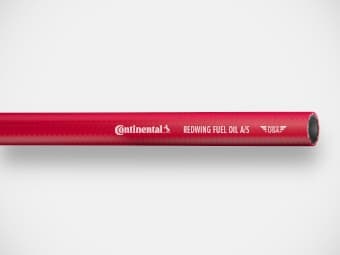

REDWING FUEL OILPremium |
Hose for heating oil transfer and delivery with durable braided construction Tube: NBR, reinforcement: 2-layer spiral synthetic yarn and conductive grounding wire, cover: Chemivic Temperature range: −40 °C to +60 °C |
 |

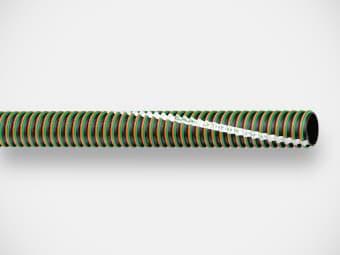

INFINITY FUEL DROPSpecialty |
Lightweight flexible hose for industrial fuel and biofuel dispensing Tube: NBR, reinforcement: 2-layer spiral synthetic yarn, cover: Chemivic with PVC and conductive grounding wire braid Temperature range: −34 °C to +71 °C |
 |
Marine Fuel Hoses
| Designation | Description | Preview |
|---|---|---|
MARINE FUEL LINEEntry Level |
Hose for fuel feed and tank ventilation on recreational vessels (ISO 7840 A1 / SAE J1527 / USCG) Tube: NBR, reinforcement: spiral synthetic yarn, cover: Chemivic Temperature range: −18 °C to +46 °C |
 |
Typical Applications
Oil and fuel hoses are designed for the safe transfer of petroleum products – from machine and hydraulic oils to fuels and heating oils – in industrial, agricultural, and marine applications.

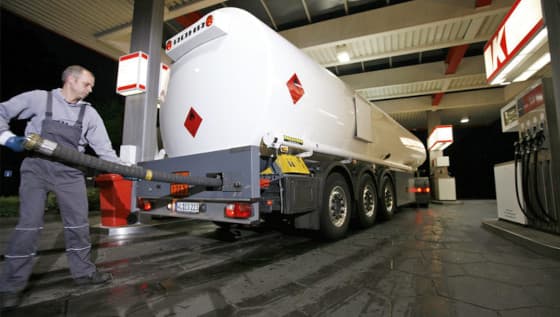

They are used for pumping lubricating and hydraulic oils during fluid changes, filling aggregates, and supplying lubrication circuits in industrial maintenance and mechanical engineering. In agriculture and construction, they are used for mobile diesel dispensing from tank trucks or barrel pumps directly into tractors, construction machinery, and generators. For heating oil delivery and dispensing, hoses with low-temperature resistance and antistatic properties are used – for example, when filling storage tanks in residential or industrial boiler rooms. On vessels and in marine transport, hoses complying with applicable standards are used for fueling vessel tanks and handling fuels during engine room service operations.
Documents for Download
Questions about This Hose Category?
Don’t hesitate to contact us with any questions about products in this category.
Hose Manufacturer Profile
Continental ContiTech is a global technology company focused on the development and manufacture of industrial solutions for power transmission, material handling, and other key areas of modern industry. It is an important partner across a wide range of industrial sectors – from the automotive industry and rail vehicles to aviation and industrial machinery.
The portfolio also includes a range of thermoplastic hoses, formerly known under the traditional Italian Merlett brand, which has been part of Continental since 2019.
ContiTech is a part of the Continental AG group, which, with dozens of production sites and tens of thousands of employees worldwide, ranks among the largest European industrial companies.
We are an authorized distributor and a preferred partner of Continental ContiTech Industrial Solutions within the Partner of Choice program.
