CONTI Conveyor Belts Automotive
CONTI Conveyor Belts Automotive are rubber conveyor and elevator belts for the automotive industry. They are made of special high-resistant rubber and steel tension member. The belts are capable of transmitting very high tensile forces, and have excellent flexibility and wear resistance.
They are available in various types and widths in whole rolls or in lengths according to customer requirements.

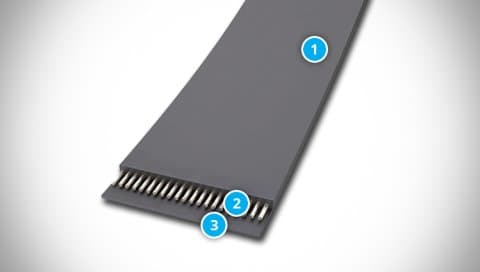

Belt Construction
- Synthetic rubber pulley side
- Steel cord tension member
- Synthetic rubber backing
Typical Applications

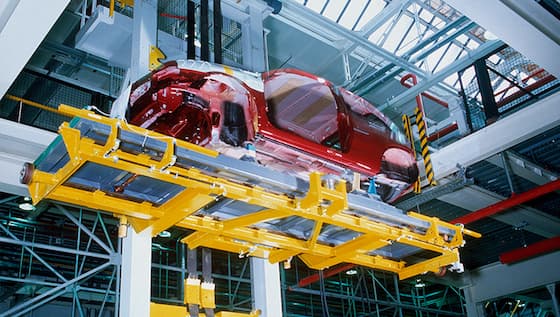

ContiTech conveyor belts for the automotive industry are designed for use in elevators, vertical and horizontal conveyors in the automotive industry. They are used to lift and transport bodiyshells, pallets and finished vehicles on assembly lines.
Properties
- Long service life, low wear
- Smooth operation
- Low-noise
- No or little maintenance required
- Secure against overload
- Easy on the back thanks to rubber damping
Belt Types and Specifications
| Type Code Description |
Nominal Tensile Strength | Nominal Breaking Force | Breaking Elongation | Width | Thickness | Weight | Tensile Member: Steel Cables | Pulley Diameter | Splice Length |
|---|---|---|---|---|---|---|---|---|---|
| Sliding Belt S 501 GL-43CE-VSK S 502 GL |
500 N/mm | 33.2 / 49.8 / 66.4 / 99.6 kN | cca 2 % | 55 / 80 / 110 / 160 mm | cca 10 mm | cca 14.05 kg/m2 | ø 2.8 mm | > 230 mm | 400 mm |
| Supporting Belt S 125 T-53CE-GIK |
1250 N/mm | 68.5 / 96.2 / 123.7 kN | cca 2 % | 55 / 80 / 100 mm | cca 12 mm | cca 17.6 kg/m2 | ø 3.85 mm | > 280 mm | 1000 mm |
| Skid Queuing S 125 PH-35CE-GIK S 125 PN-35CE-GIK |
1250 N/mm | 68.5 / 96.2 / 123.7 kN | cca 2 % | 55 / 80 / 100 mm | cca 12 mm | cca 17.6 kg/m2 | ø 3.85 mm | > 280 mm | 1000 mm |
| Lifting Belt S 125 SX-33CE-GIK |
1250 N/mm | 116 … 546 kN | cca 2 % | 75 … 360 mm | cca 8.75 mm | cca 14.1 kg/m2 | ø 2.8 mm | > 300 mm | - |
| Track Belt S … QST/GL-SS-CE-VSK |
500 … 2000 N/mm | - | cca 2 % | 250 … 2000 mm | cca 14 - 18 mm | cca 21.5 - 28 kg/m2 | ø 2.8 - 4.8 mm | > 355 mm | 520 … 1200 mm |
| Worker Conveyance Belt S … QST/GL-SS-CE-VSK |
500 … 2000 N/mm | - | cca 2 % | 1000 - 5000 mm | cca 14 - 18 mm | cca 21.5 - 28 kg/m2 | ø 2.8 - 4.8 mm | > 355 mm | 400 mm + 0.3 B |
Cover
Black. 57 Shore A. KTL-proof. Conditionously oil – and grease resistant.
Silicone-free.
Documents for Download
CONTI Conveyor Belts for the Automotive Industry
ContiTech Product Overview
English (PDF 1.43 MB)
Questions about This Belt Category?
Don’t hesitate to contact us with any questions about products in this category.
Belt Manufacturer Profile
Continental ContiTech is a global technology company focused on the development and manufacture of industrial solutions for power transmission, material handling, and other key areas of modern industry. It is an important partner across a wide range of industrial sectors – from the automotive industry and rail vehicles to aviation and industrial machinery.
ContiTech is a part of the Continental AG group, which, with dozens of production sites and tens of thousands of employees worldwide, ranks among the largest European industrial companies.
We are an authorized distributor and a preferred partner of Continental ContiTech Industrial Solutions within the Partner of Choice program.
