CONTI-V MULTIRIB DUAL Double-Sided Poly-V-Belts
CONTI-V MULTIRIB DUAL double-sided V-ribbed belts in DPJ, DPK and DPL profiles for transmissions with small pulley diameters, large transmission ratio, high speeds, where there is also a need to provide a change in the sense of rotation. The profiles are compliant with ISO 9982 (DIN 7867).
The belts combine the high flexibility of flat belts with the first-rate power transmission of V-belts. The belts are used in transmissions where it is necessary to use both sides of the V-belt for drive. The symmetrical design allows the power transmission to be distributed to both sides of the belt.
Low electrical conductivity – for compliance with requirements to ISO 1813.

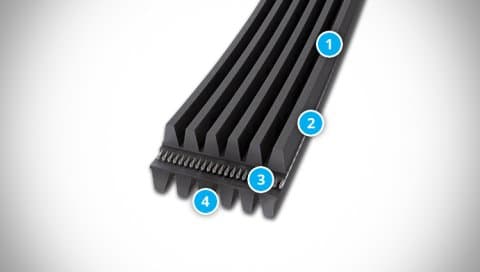

Belts Construction
- Synthetic rubber ribs
- Embedding compound
- Polyester tension member
- Synthetic rubber ribs
Belts Fields of Use
The CONTI-V MULTIRIB DUAL double-sided poly-V-belts are used for transmissions with more than two pulleys where fully synchronous rotation is not required.

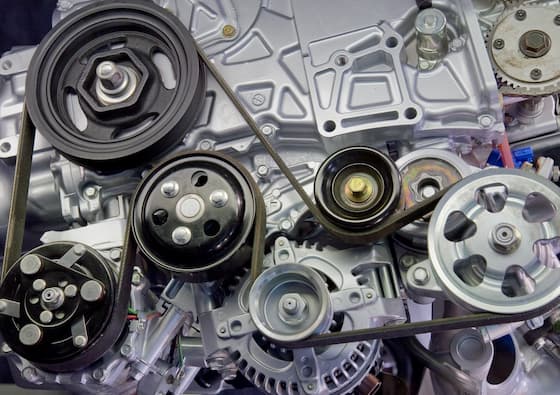

The most common application is as a drive belt in compact drives with higher peripheral speeds and small pulley diameters in serpentine drives, in agricultural machinery, in domestic appliances and in the automotive industry.
Belts Characteristics
- High transmission power and long life, almost vibration-free operation
- High permissible peripheral speed up to 60 m/s
- Implementation of large gear ratios
- Temperature resistance from −30 °C to +80 °C
- Antistatic properties according to ISO 1813
Belts Code Description
Example:
1100 DPK - 6 CONTI-V MULTIRIB DUAL
| Code Part | Description |
|---|---|
| 1100 |
Belt length in mm |
| DPK |
Profile |
| 6 | Number of ribs The number of ribs means number of elevations on the belt = number of grooves on the pulley. |
| CONTI-V MULTIRIB DUAL |
Type of double-sided belt |
Belts Certification
- Factory Electrical Conductivity Certificate of Belts According to ISO 1813 and ISO 9563 (pdf, 104.90 kB)
- ContiTech Explanation of ATEX Certification (pdf, 11.96 kB)
Notice
General factory certificates are not sufficient for belts used in potentially explosive atmospheres.
If a test report according to ISO 1813 and ISO 9563 is required for the application, it is necessary to inform us of the request for delivery of belts including the certificate when ordering them (when ordering belts via Eshop, please write this request in the "Note" field before by sending the order). The certificate is issued by ContiTech after the test in the production plant.
