Polyurethane Poly-V-Belts

Special polyurethane V-ribbed belts are intended for smaller drives especially for special applications.

The belts are made of polyurethane with a polyester tension member.

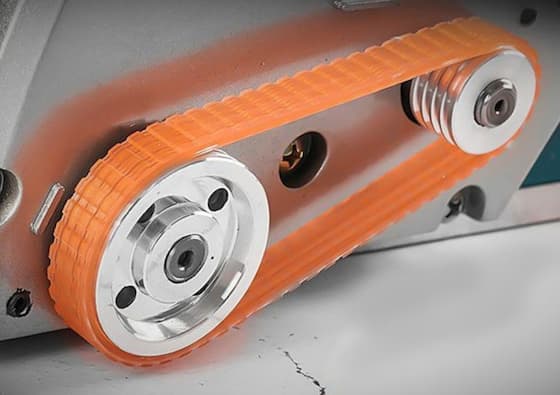

Polyurethane poly-V-belt in use

If you submit the form, we will use your personal data (name, surname, email) to reply to your inquiry or question. All important information can be found in the Privacy Policy.

Belts Construction

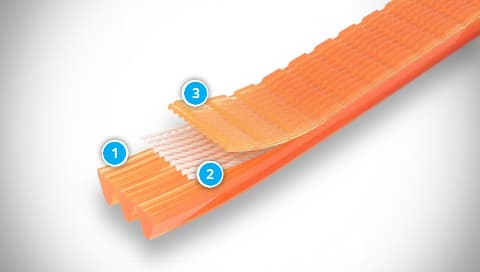

Polyurethane Belt Structure

  1. Polyurethane rubber ribs
  2. Embedding compound
  3. Polyester tension member
  4. Polyurethane backing

Belts Fields of Use

The polyurethane V-ribbed belts are used mainly in hand tools, in household appliances, washing machines and other special applications where large series are produced.

Belts Characteristics

  • Long life, almost vibration-free operation
  • Resistance to UV and ozone
  • Realization of large gear ratios
  • Temperature resistance from −30 °C to +80 °C
  • High tensile strength

Belts Code Description

Example:
6 PJ 304 PU

Code Part Description
6

Number of ribs

PJ

Profile

304

Belt length in mm

PU

Belt material

Notice

The number of ribs means number of elevations on the belt = number of grooves on the pulley.

Documents for Download

Dimensions and Parameters of  Polyurethane Poly-V-Belts - Preview

Dimensions and Parameters of Polyurethane Poly-V-Belts

TYMA CZ Data Sheets

Czech and English (PDF 172.55 kB)

Drive Belts - Preview

Drive Belts

TYMA CZ Catalogue

Czech and English (PDF 4.54 MB)
