Variable Speed Taper Lock Pulleys with a Fixed Speed Setting
Variable speed pulleys with a fixed speed setting are the simplest type of pulley with the possibility of changing the speed. It is used to fix the speed using a V-belt. It is made of gray cast iron.
These are a special type of V-belt pulleys that consist of a fixed and a movable rotating part. They thus enable adjusting the position of the wedge groove, thus pulley distance and belt position. The result is a gear, where the gear ratio can be set and fixed at rest, and thus also the speed of the output shaft.
The drive pulley width control is mechanical. It is performed using a thread on the movable part of the pulley. After setting the necessary diameter, the position is fixed and secured with a locking screw.
The pulleys are attached to the shafts by Taper Lock bushings, thanks to which they are not only fixed on the shaft with a keyway, but also axially secured against displacement.
Products are sorted by name in ascending order.
PV 084 Z1 TB 1108
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
22.63€ excl. VAT
27.38€ incl. VAT
PV 095 Z1 TB 1108
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
25.67€ excl. VAT
31.06€ incl. VAT
PV 100 Z1 TB 1108
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
27.16€ excl. VAT
32.86€ incl. VAT
PV 108 A1 TB 1210
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
32.75€ excl. VAT
39.62€ incl. VAT
PV 108 Z1 TB 1210
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
30.77€ excl. VAT
37.24€ incl. VAT
PV 120 A1 TB 1210
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
37.40€ excl. VAT
45.25€ incl. VAT
PV 120 A2 TB 1215
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
63.62€ excl. VAT
76.98€ incl. VAT
PV 129 A1 TB 1210
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
40.56€ excl. VAT
49.08€ incl. VAT
PV 129 A2 TB 1215
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
69.61€ excl. VAT
84.23€ incl. VAT
PV 139 A1 TB 1610
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
45.19€ excl. VAT
54.68€ incl. VAT
PV 139 A2 TB 1615
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
79.35€ excl. VAT
96.02€ incl. VAT
PV 146 A1 TB 1610
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
47.06€ excl. VAT
56.94€ incl. VAT
PV 146 A2 TB 1615
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
83.35€ excl. VAT
100.85€ incl. VAT
PV 156 A1 TB 1610
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
51.51€ excl. VAT
62.33€ incl. VAT
PV 156 A2 TB 1615
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
91.94€ excl. VAT
111.25€ incl. VAT
PV 164 A1 TB 1610
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
54.95€ excl. VAT
66.49€ incl. VAT
PV 164 A2 TB 1615
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
98.49€ excl. VAT
119.18€ incl. VAT
PV 177 A1 TB 2012
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
63.67€ excl. VAT
77.04€ incl. VAT
PV 177 A2 TB 2012
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
114.17€ excl. VAT
138.14€ incl. VAT
PV 178 B1 TB 2012
Variable Speed Pulley
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
68.60€ excl. VAT
83.01€ incl. VAT
Products are sorted by name in ascending order.

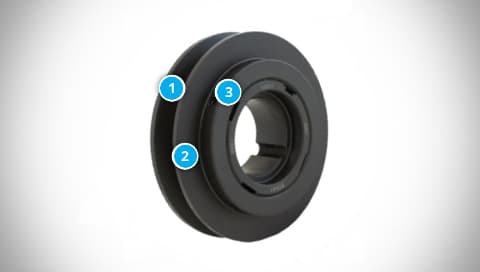

Pulley Construction
- Inner fixed part
- Outer rotating movable part
- Locking screw to fix the position
Typical Applications
Variable speed pulleys with fixed speed settings are designed for simple applications in various industries. This is an undemanding drive solution where frequent and smooth speed changes are not required.
It is typically used in the repair of old agricultural machinery or conveyors in the ceramic and woodworking industries. Nowadays, they are very often replaced by another solution for setting the required revolutions.
Materials
Gray cast iron.
Pulley Code Description
Example:
PV 108 A1 TB 1210
| Code Part | Description |
|---|---|
| PV |
Variable speed pulley – adjustable pulley |
| 108 |
External pulley diameter (De) |
| A | SPA or 13/A type of V-belt |
| 1 |
Number of grooves |
| TB |
Taper Lock bush |
| 1210 |
Type of Taper Lock bush |
Documents for Download
Dimensions and Parameters of Variable Speed Pulleys for Taper Lock Bushes
TYMA CZ Data Sheets
Czech and English (PDF 317.17 kB)
