ATK5 Polyurethane Open-Ended Timing Belts

Polyurethane open-ended timing belts with V-guides in ATK5 profile are made from thermoplastic polyurethane, which has high dimensional stability and wear resistance, and steel tensile fiber, in special cases aramid or stainless steel.

The open-ended belts can be welded into endless belts.

display product filter

Products are sorted by name in ascending order.

ATK5 - 25 Open-Ended Timing Belt

ATK5 - 25

Open-Ended Timing Belt

At Supplier

Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

We usually made this product from a semi-finished product during the first working day after the order.

Price on Request The belt price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

ATK5 - 32 Open-Ended Timing Belt

ATK5 - 32

Open-Ended Timing Belt

At Supplier

Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

We usually made this product from a semi-finished product during the first working day after the order.

Price on Request The belt price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

ATK5 - 50 Open-Ended Timing Belt

ATK5 - 50

Open-Ended Timing Belt

At Supplier

Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

We usually made this product from a semi-finished product during the first working day after the order.

Price on Request The belt price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

ATK5 - 75 Open-Ended Timing Belt

ATK5 - 75

Open-Ended Timing Belt

At Supplier

Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

We usually made this product from a semi-finished product during the first working day after the order.

Price on Request The belt price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

ATK5 - 100 Open-Ended Timing Belt

ATK5 - 100

Open-Ended Timing Belt

At Supplier

Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

We usually made this product from a semi-finished product during the first working day after the order.

Price on Request The belt price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

ATK5 - 150 Open-Ended Timing Belt

ATK5 - 150

Open-Ended Timing Belt

At Supplier

Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

We usually made this product from a semi-finished product during the first working day after the order.

Price on Request The belt price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

Products are sorted by name in ascending order.


Belts Construction

Open-Ended Polyurethane Timing Belt Structure

  1. Polyurethane teeth
  2. Steel cord tension member
  3. Polyurethane backing

Belts Fields of Use

Polyurethane timing belts are used in all areas, from miniature drives, high-precision positioning and sorting mechanisms, small handheld machines to high-performance drives for building and woodworking machines.

Belts Characteristics

  • High transmission power and long life
  • Resistant to oil, fuel, benzol, UV radiation and ozone
  • Wear-resistant
  • Temperature range, depending on application, from −30 °C to +80 °C
  • Maintenance-free

Belts Code Description

Example:
ATK5 - 50

Code Part Description
ATK

Profile

5

Tooth pitch in mm

50

Belt width in mm

Optional Belt Surface Layers

The choice of the surface layer depends on the type of machine, the ambient temperature, the size of the pulleys, etc. Specifying the surface layer is determined by the material and the thickness of the layer.

Layer Name Material Layer Illustration
PAZ (NFT) - nylon fabric on teeth
Low coefficient of friction
Nylon PAZ (nylon fabric on teeth)
PAR (NFB) - nylon fabric on back
Surface protection
Nylon PAZ (nylon fabric on back)
PAZ + PAR (NFT + NFB) - fabric on teeth and back
Low coefficient of friction and surface protection
Nylon PAZ PAR (fabric on teeth and back)

The fabric on teeth and back can be combined with all other layers. A complete range of belt surface layers

Documents for Download

Dimensions and Parameters of Polyurethane Open-Ended Timing Belts - Preview

Dimensions and Parameters of Polyurethane Open-Ended Timing Belts

TYMA CZ Data Sheets

Czech and English (PDF 903.91 kB)

Drive Belts - Preview

Drive Belts

TYMA CZ Catalogue

Czech and English (PDF 4.54 MB)

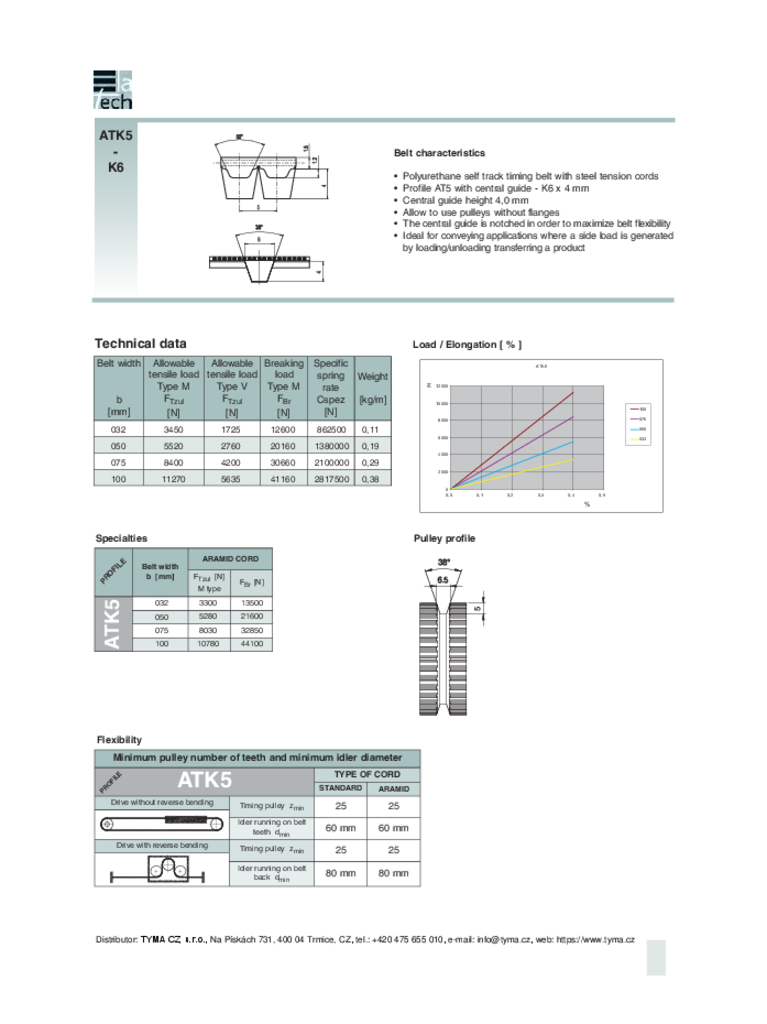

Technical Data and Characteristics of ATK5 - K6 Belts - Preview

Technical Data and Characteristics of ATK5 - K6 Belts

Elatech Data Sheets

English (JPG 191.88 kB)
