Causes of V-Belts Failure and the Solution
This unique troubleshoot guide makes it easier for you to identify possible causes of your V-belt transmission failure.
You can find main potential causes of drive belt failure that are possibly damaging your V-belt, shortening its lifespan, etc. Simultaneously, presented here are instructions on how such problems may be solved.
Symptoms of a V-Belt Failure
- Hardened, Polished Flanks
- Uneven Wear on Ribs
- Running Noises from Belt
- Cracks/Separations in Belt Body/Ribs
- Crack in the Belt after a Short Running Time
- Dirt Accumulation on the Belt
- Hardened, Polished Flanks (Different Tension Values for Belts of Sets)
- Excessive Wear on Flanks / Flanks Brittle
Do You Need a New V-Belt?
Order your V-belt right in our eshop!

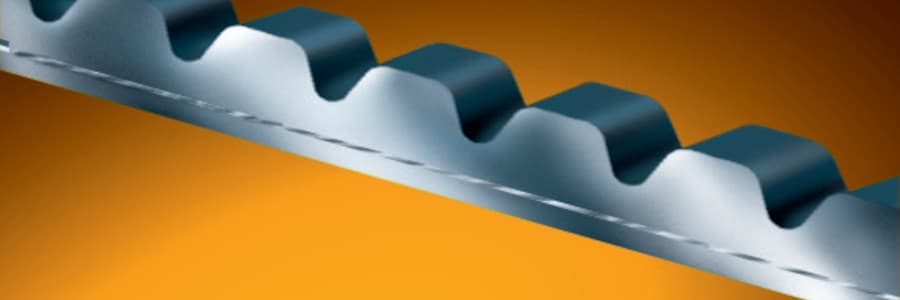

Hardened, Polished Flanks
| Diagnosis | Solution |
|---|---|
| Incorrect tensioning | Change the belt, adjust tension correctly |
| Tension member of belt damaged by incorrect fitting | Change belt, fit properly |

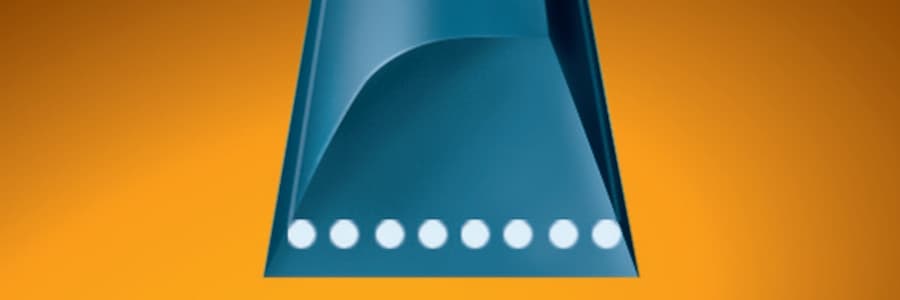

Uneven Wear on Ribs
| Diagnosis | Solution |
|---|---|
| Pulleys are not aligned | Examine the drive. Line up or, if necessary, replace any non-aligned pulleys, change the belt |
| Substantial belt vibrations | Check the tension. If necessary, tighten or change the belt |
Running Noises from Belt
| Diagnosis | Solution |
|---|---|
| Insufficient tension | Tighten or change the belt |
| Belt past its useful life | Change the belt |

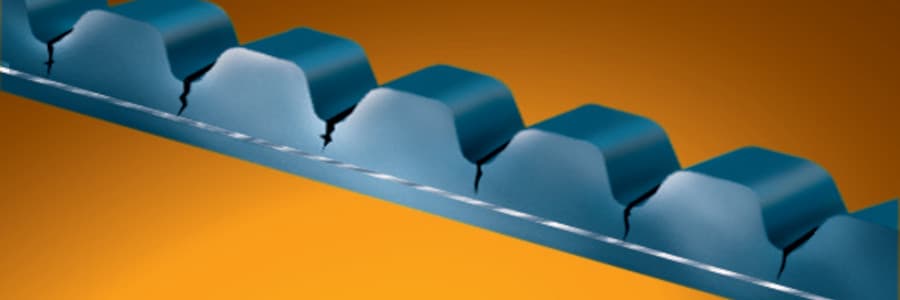

Cracks/Separations in Belt Body/Ribs
| Diagnosis | Solution |
|---|---|
| Belt tension is too high/low | Change the belt, adjust tension correctly |
| Belt past its useful life | Change the belt |
| Foreign matter | Change the belt |

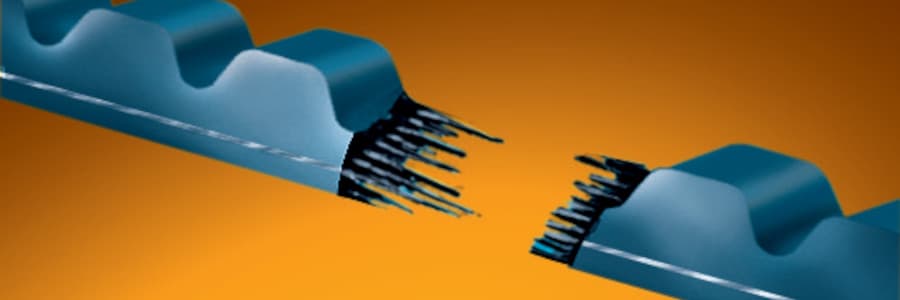

Crack in the Belt after a Short Running Time
| Diagnosis | Solution |
|---|---|
| Tension members damaged as a result of incorrect fitting | Change the belt, fitting it correctly |
| Belt excessively tensioned | Change the belt, adjust tension correctly |

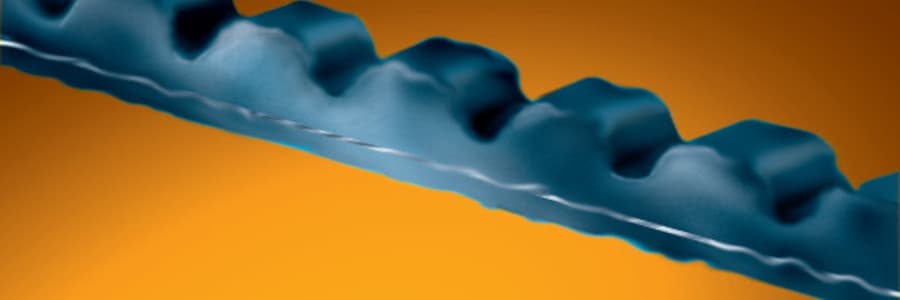

Dirt Accumulation on the Belt
| Diagnosis | Solution |
|---|---|
| Leaks in the engine or engine compartment (e.g. escape of oil, antifreeze etc.) | Repair leak(s), change the belt |
Hardened, Polished Flanks (Different Tension Values for Belts of Sets)
| Diagnosis | Solution |
|---|---|
| Pulleys not aligned | Examine the drive, line up non-aligned pulleys and fit a new set of belts |
| Tension member of belt damaged by incorrect fitting | Change the belt, fitting it correctly |
| Mismatching of belts | Always replace a complete set of belts |

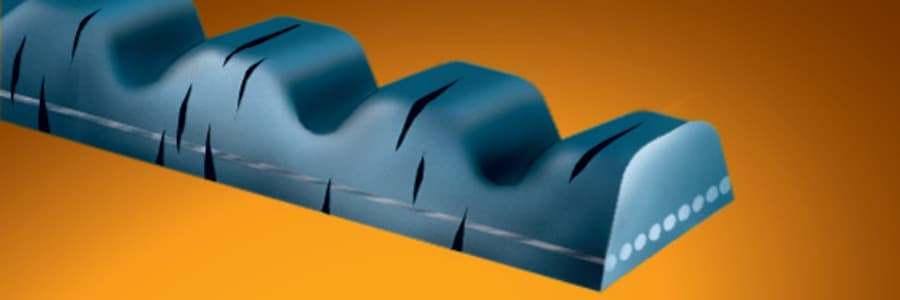

Excessive Wear on Flanks / Flanks Brittle
| Diagnosis | Solution |
|---|---|
| Excessive slip | Change the belt, adjust the tension correctly |
| Pulleys not aligned | Examine the drive, line up or, if necessary, replace any non-aligned pulleys |
| Pulley grooves with uneven wear | Line up or, if necessary, replace any non-aligned pulleys |
Need a New V-Belt and Do Not Know Exactly Which One?
We honestly understand you. Marking on a broken belt is sometimes not easily seen. Thus, we have prepared a guide for you to identify different sorts and types of belts.
Documents for Download
Causes of Failures - Problem - Diagnosis - Solution
ContiTech User Guide
Czech and English (pdf 463.81 kB)
