DSTD DS8M-656-85 CXP CONTI SYNCHROTWIN
Double-Sided Timing Belt
Antistatic – for compliance with requirements to ISO 9563.
The trendsetters with less polycyclic aromatic hydrocarbons (PAH) for clean operation and protection of persons in case of long-term contact with the belt.
Price without VAT: 390.70€
Price including VAT: 472.75€ with VAT
Catalogue price excluding VAT:
398.67€
The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.
At supplier,
we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
Belt Parameters
Pitch length of the belt. It is commonly denoted as Lp or Lp.
In the TYMA Product Catalogues you can find this material also described with the abbreviation CR.
Belt Description

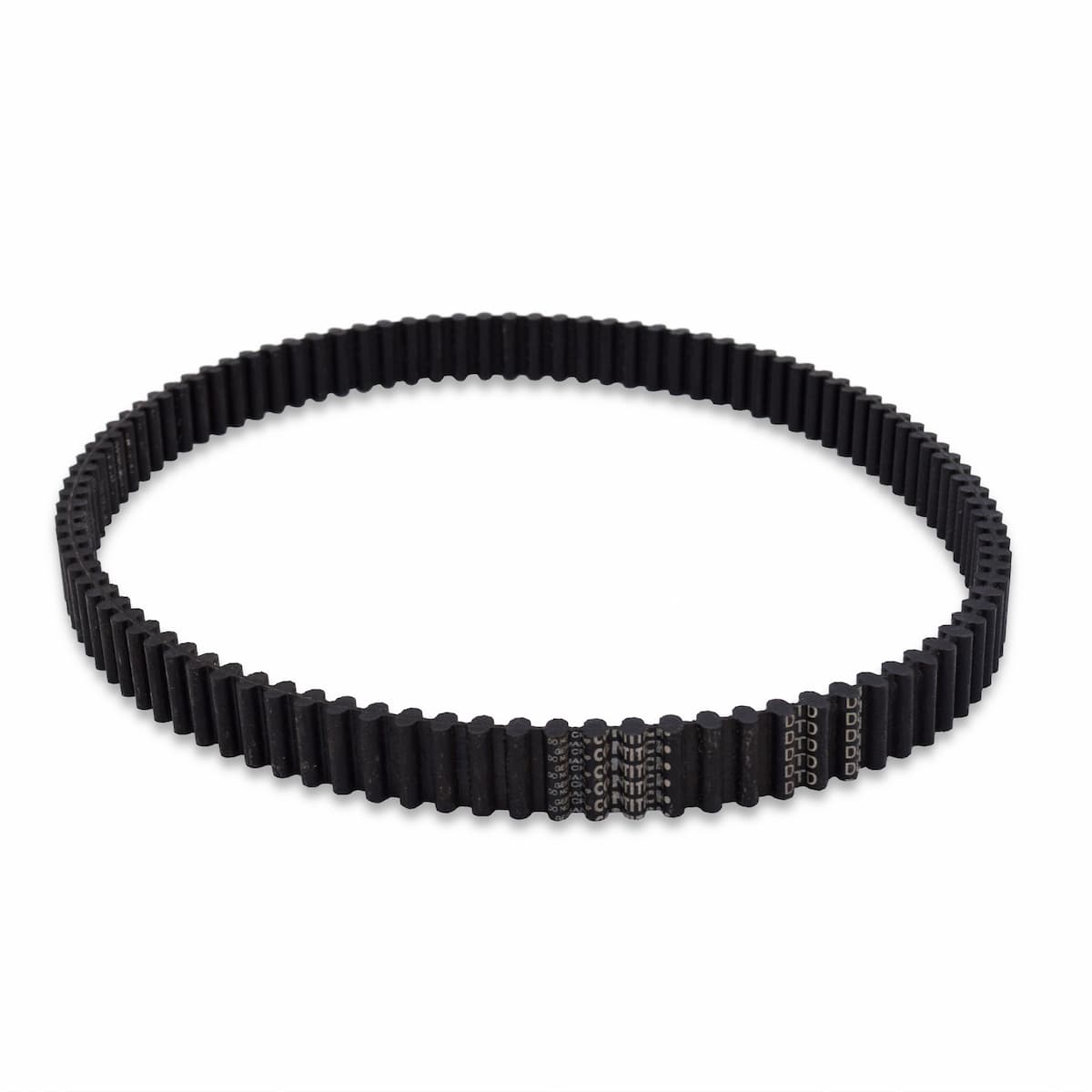

DSTD DS8M-656-85 CXP CONTI SYNCHROTWIN is double-sided timing belt intended for drives with change of direction of rotation. It is manufactured according to ISO 9563.
The CXP version has been designed for high power and speed.
Belt Construction
- Polyamide fabric
- Synthetic rubber teeth
- Glass cord tension member
- Synthetic rubber backing
Belt Fields of Use
The double-sided timing belts are suitable for synchronous drives with same-sense and counterrotating motion. They allow compact space and weight-saving drives with an efficiency of up to 98 %.
The CONTI SYNCHROFORCE CXP timing belts meet the highest requirements of modern drive technology and are used in all areas of mechanical engineering.
Belt Characteristics
- High transmission power and long life
- Antistatic in accordance with ISO 9563
- Conditionally resistant to oil
- Suitable for tropical climates
- Temperature range depending on application, from −20 °C to +100 °C
- With less content of polycyclic aromatic hydrocarbons (PAH) for clean operation and protection of persons in case of long-term contact with the belt
Belt Certification
- Factory Electrical Conductivity Certificate of Belts According to ISO 1813 and ISO 9563 (pdf, 104.90 kB)
- ContiTech Explanation of ATEX Certification (pdf, 11.96 kB)
Notice
General factory certificates are not sufficient for belts used in potentially explosive atmospheres.
If a test report according to ISO 1813 and ISO 9563 is required for the application, it is necessary to inform us of the request for delivery of belts including the certificate when ordering them (when ordering belts via Eshop, please write this request in the "Note" field before by sending the order). The certificate is issued by ContiTech after the test in the production plant.
