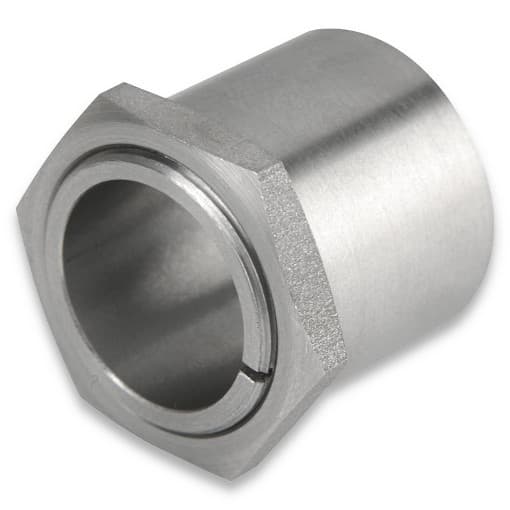

KLQX 09 - 9 × 14 mm (Stainless Steel)

Locking Bush

Price for you :

Price without VAT: 18.33

Price including VAT: 22.18 with VAT

Catalogue price excluding VAT:

At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Bush Parameters

Profile: KLQX
No. of grooves/teeth: - No. of grooves/teeth
V-pulleys and Poly-V pulleys number of grooves, timing pulleys and sprockets number of teeth.
Bore (mm): 9
Brand: - Brand: -
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Weight (kg): 0.100
Pitch diameter Dw (mm): 14,00
Width (mm): 22,00 Width (mm)
Face width.
Material: Stainless Steel Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation SS.

Bush Description

KLQX 09 - 9 × 14 mm (Stainless Steel) is a stainless steel self-centering cylindrical clamping element with a cylindrical inner bore for lower loads with very small external dimensions.

They provide a tight and economical connection of the shaft to the hub as an alternative to key, wedge and groove connections.

The friction joint eliminates the joint clearance and provides more precise rotation of the clamped part. Once fixed, the component is capable of transmitting torque while being secured against axial displacement.

Bush Construction

KLQX Locking Bush Construction

  1. Tapered internal ring
  2. Tapered external ring
  3. Tightening nut

Bush Fields of Use

KLQX bushes are designed for general industrial use. They are used for fastening small and medium types of pulleys, sprockets, shaft couplings and many other components.

They are particularly suitable for use in the food, chemical and pharmaceutical industries, in demanding operating conditions and in the outdoor environment, as well as for all applications where it is mandatory by law to use corrosion-resistant materials.

Bush Material

Stainless steel (1.4301 type).
