RCK 16 Locking Bushes (KLAB)

RCK 16 (KLAB) are self-centering cylindrical clamping elements with an inner cylindrical bore for medium load.

They provide a tight and economical connection of the shaft to the hub as an alternative to key, wedge and groove connections. They are produced from steel.

The friction joint eliminates the joint clearance and provides more precise rotation of the clamped part. Once fixed, the component is capable of transmitting torque while being secured against axial displacement.

Products are sorted by name in ascending order.

RCK 16 - 100 × 145 mm (KLAB 100)

Locking Bush

At Supplier

Within 2 Weeks

42.40 excl. VAT

51.31 incl. VAT

RCK 16 - 110 × 155 mm (KLAB 110)

Locking Bush

At Supplier

Within 2 Weeks

43.91 excl. VAT

53.14 incl. VAT

RCK 16 - 120 × 165 mm (KLAB 120)

Locking Bush

At Supplier

Within 2 Weeks

49.53 excl. VAT

59.93 incl. VAT

RCK 16 - 130 × 180 mm (KLAB 130)

Locking Bush

At Supplier

Within 2 Weeks

71.09 excl. VAT

86.01 incl. VAT

RCK 16 - 140 × 190 mm (KLAB 140)

Locking Bush

At Supplier

Within 2 Weeks

73.97 excl. VAT

89.50 incl. VAT

RCK 16 - 150 × 200 mm (KLAB 150)

Locking Bush

At Supplier

Within 2 Weeks

85.35 excl. VAT

103.27 incl. VAT

RCK 16 - 160 × 210 mm (KLAB 160)

Locking Bush

At Supplier

Within 2 Weeks

93.74 excl. VAT

113.43 incl. VAT

RCK 16 - 170 × 225 mm (KLAB 170)

Locking Bush

At Supplier

Within 2 Weeks

118.65 excl. VAT

143.57 incl. VAT

RCK 16 - 180 × 235 mm (KLAB 180)

Locking Bush

At Supplier

Within 2 Weeks

132.19 excl. VAT

159.95 incl. VAT

RCK 16 - 18 × 47 mm (KLAB 18)

Locking Bush

At Supplier

Within 2 Weeks

5.64 excl. VAT

6.82 incl. VAT

RCK 16 - 190 × 250 mm (KLAB 190)

Locking Bush

At Supplier

Within 3 Weeks

157.06 excl. VAT

190.04 incl. VAT

RCK 16 - 19 × 47 mm (KLAB 19)

Locking Bush

At Supplier

Within 2 Weeks

5.64 excl. VAT

6.82 incl. VAT

RCK 16 - 200 × 260 mm (KLAB 200)

Locking Bush

At Supplier

Within 3 Weeks

Price on Request

RCK 16 - 20 × 47 mm (KLAB 20)

Locking Bush

In Stock

5.64 excl. VAT

6.82 incl. VAT

RCK 16 - 22 × 47 mm (KLAB 22)

Locking Bush

At Supplier

Within 2 Weeks

5.64 excl. VAT

6.82 incl. VAT

RCK 16 - 24 × 50 mm (KLAB 24)

Locking Bush

At Supplier

Within 2 Weeks

6.15 excl. VAT

7.44 incl. VAT

RCK 16 - 25 × 50 mm (KLAB 25)

Locking Bush

In Stock

6.54 excl. VAT

7.91 incl. VAT

RCK 16 - 28 × 55 mm (KLAB 28)

Locking Bush

At Supplier

Within 2 Weeks

6.93 excl. VAT

8.38 incl. VAT

RCK 16 - 30 × 55 mm (KLAB 30)

Locking Bush

In Stock

6.93 excl. VAT

8.38 incl. VAT

RCK 16 - 32 × 60 mm (KLAB 32)

Locking Bush

At Supplier

Within 2 Weeks

7.77 excl. VAT

9.40 incl. VAT

Products are sorted by name in ascending order.

Total 2 pages

Bushes Construction

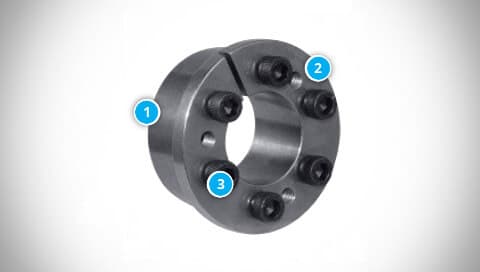

RCK 16 Locking Bush Construction

  1. Tapered external ring
  2. Tapered internal ring
  3. Clamping bolts

Bushes Fields of Use

The RCK 16 clamping elements are used in a variety of industrial applications.

They are used to fix all types of V-belt, timing and flat pulleys, sprockets, TB hubs, shaft coupling, drums, flywheels and many other components.

Bushes Characteristics

  • Clearance elimination provides more accurate rotation of the clamped part
  • Even load distribution over the entire circuit
  • Simplify synchronization between components that are involved and act as a file
  • Increasing the resistance of the drive part of the shaft
  • Easy of assembly and disassembly offer the user the opportunity to optimize the assembly and reduce its costs
  • Maintenance without having to stop the machine
  • Easy availability of spare parts

Bushes Material

Steel C43.

Bushes Code Description

Example:
RCK 16 - 60 × 90 mm (KLAB 60)

Code Part Description
RCK 16

Type of clamping element

60

Inner diameter of the clamping element - hole size in mm

90

Outer diameter of the clamping element in mm

KLAB

Second type of clamping element marking

60

Inner diameter of the clamping element - hole size in mm

Documents for Download

Dimensions and Parameters of RCK 16 Clamping Elements

TYMA CZ Data Sheets

Czech and English (PDF 124.03 kB)

Pulleys and Clamping Bushes

TYMA CZ Catalogue

Czech and English (PDF 3.64 MB)
