RCK 60 Locking Bushes (KLRR)
RCK 60 (KLRR) are self-centering compact cylindrical clamping elements with an inner cylindrical bore.
They provide a tight and economical connection of the shaft to the hub as an alternative to key, wedge and groove connections. They are produced from steel.
The friction joint eliminates the joint clearance and provides more precise rotation of the clamped part. Once fixed, the component is capable of transmitting torque while being secured against axial displacement.
Products are sorted by name in ascending order.
RCK 60 - 20 × 47 mm (KLRR 20)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
5.83€ excl. VAT
7.06€ incl. VAT
RCK 60 - 22 × 47 mm (KLRR 22)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
5.90€ excl. VAT
7.14€ incl. VAT
RCK 60 - 24 × 50 mm (KLRR 24)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
6.45€ excl. VAT
7.81€ incl. VAT
RCK 60 - 25 × 50 mm (KLRR 25)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
6.45€ excl. VAT
7.81€ incl. VAT
RCK 60 - 30 × 55 mm (KLRR 30)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
7.23€ excl. VAT
8.75€ incl. VAT
RCK 60 - 35 × 60 mm (KLRR 35)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
8.09€ excl. VAT
9.79€ incl. VAT
RCK 60 - 38 × 65 mm (KLRR 38)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
8.63€ excl. VAT
10.44€ incl. VAT
RCK 60 - 40 × 65 mm (KLRR 40)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
10.55€ excl. VAT
12.76€ incl. VAT
RCK 60 - 42 × 75 mm (KLRR 42)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.75€ excl. VAT
14.22€ incl. VAT
RCK 60 - 45 × 75 mm (KLRR 45)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.81€ excl. VAT
14.29€ incl. VAT
RCK 60 - 50 × 80 mm (KLRR 50)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
12.59€ excl. VAT
15.23€ incl. VAT
RCK 60 - 55 × 85 mm (KLRR 55)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
14.35€ excl. VAT
17.36€ incl. VAT
RCK 60 - 60 × 90 mm (KLRR 60)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
15.00€ excl. VAT
18.14€ incl. VAT
RCK 60 - 65 × 95 mm (KLRR 65)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
16.74€ excl. VAT
20.25€ incl. VAT
RCK 60 - 70 × 110 mm (KLRR 70)
Locking Bush
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
24.72€ excl. VAT
29.91€ incl. VAT
Products are sorted by name in ascending order.

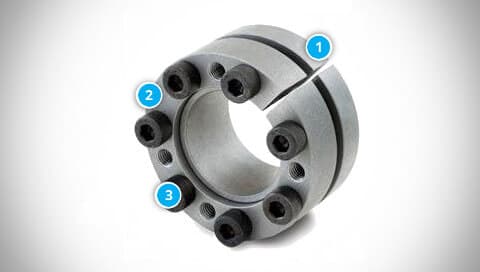

Bushes Construction
- Tapered internal ring
- Tapered external ring
- Clamping bolts
Bushes Fields of Use
The RCK 60 clamping elements are used in a variety of industrial applications.
They are used to fix all types of V-belt, timing and flat pulleys, sprockets, TB hubs, shaft coupling, drums, flywheels and many other components.
Bushes Material
Steel C43.
Bushes Advantages
- Clearance elimination provides more accurate rotation of the clamped part
- Even load distribution over the entire circuit
- Simplify synchronization between components that are involved and act as a file
- Increasing the resistance of the drive part of the shaft
- Easy of assembly and disassembly offer the user the opportunity to optimize the assembly and reduce its costs
- Maintenance without having to stop the machine
- Easy availability of spare parts
Bushes Code Description
Example:
RCK 60 - 35 × 60 mm (KLRR 35)
| Code Part | Description |
|---|---|
| RCK 60 |
Type of clamping element |
| 35 |
Inner diameter of the clamping element - hole size in mm |
| 60 |
Outer diameter of the clamping element in mm |
| KLRR |
Second type of clamping element marking |
| 35 |
Inner diameter of the clamping element - hole size in mm |
Documents for Download
Dimensions and Parameters of RCK 60 Clamping Elements
TYMA CZ Data Sheets
Czech and English (PDF 116.98 kB)
