Berges BECKER Asymmetrical Pulleys with Variable Speed Adjustment

Berges asymmetrical variable speed pulleys with continuous speed change – BECKER system – are used to continuously change the speed using a V-belt or variator – wide V-belt. It is made of aluminum alloy.

These are special pulleys that allow you to change the width setting and thus the position of the belt. The result is a transmission with a smooth change of speed and gear ratio without the need to stop the transmission. Controlling the width of the drive pulley, or speed changes, can be mechanical, hydraulic or electronic.

The BECKER system is a special asymmetrical version of the variable speed pulley, where each side of the belt has a different pitch angle. One side of the variator has an angle of inclination of 3 degrees and the other side of 17 degrees. This asymmetrical design enables better distribution of forces, less stress on the shaft and bearings, greater rigidity and longer service life.

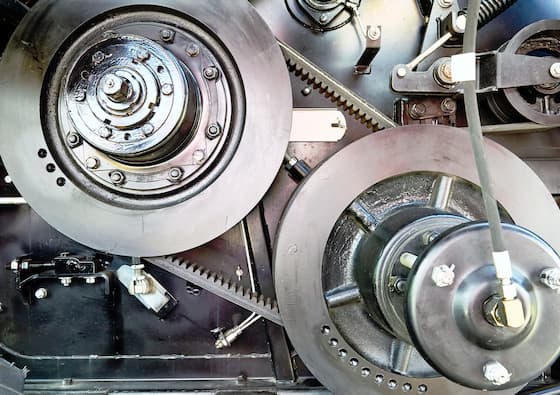

BECKER asymmetrical variable speed pulley in use

If you submit the form, we will use your personal data (name, surname, email) to reply to your inquiry or question. All important information can be found in the Privacy Policy.

Pulleys Construction

Variable Speed Pulley Drive Construction

  1. Drive pulley
  2. Spring pulley
  3. Belt
  4. Speed adjustment device

Pulleys Fields of Use

Berges BECKER asymmetric variable speed pulleys are intended for applications, where the transmission is realized by a special asymmetric variator belt. Power from up to 150 kW can be transmitted using variator transmissions.

They are typically used in machines where the change of speed is provided mechanically, especially in presses, single-purpose machines, agricultural machines and other applications.

Pulleys Characteristics

  • Higher lateral stiffness
  • Reduction of centrifugal forces
  • Lower operating temperature of the belt
  • Higher load capacity and longer V-belt life
  • Easier pulley installation and alignment

Pulleys Material

Aluminum alloy.

Documents for Download

Asymmetrical Variable Speed Pulleys - Preview

Asymmetrical Variable Speed Pulleys

Berges Catalogue

English (PDF 5.18 MB)


Question about the Pulleys Category

Do not hesitate to contact us with any questions about products in this category.

Ask Our Specialists
Antispam

If you submit the form, we will use your personal data (name, surname, email) to reply to your inquiry or question. All important information can be found in the Privacy Policy.

Manufacturer Profile

BERGES

Berges is a leading global supplier of a wide range of variable speed pulleys covering power range of 0.25 to 200 kW. In addition to variable speed pulleys, the company also supplies remote controls and accessories of variable speed drives, complete variable speed transmissions, friction wheels, etc.

Berges acquired theasymmetrical BECKER pulley technologyin 2003 and made itself world’s unique specialist in the construction of symmetrical and asymmetrical pulleys.

TYMA CZ is an authorized regional distributor of Berges.
