EAGLE 14M Polyurethane Open-Ended Timing Belts

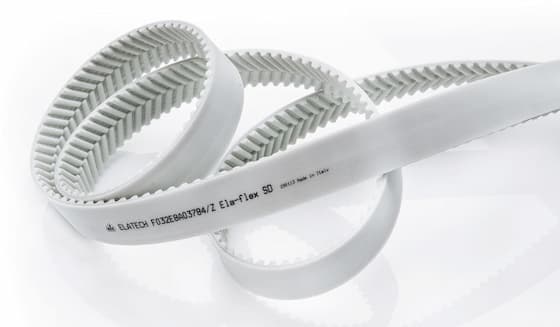

Polyurethane self-guiding open-ended EAGLE timing belts with H.O.T. 14M profile are made from thermoplastic polyurethane, which has high dimensional stability and wear resistance, and steel tensile fiber, in special cases aramid or stainless steel tensile fiber.
The open-ended belts can be welded into endless belts.
Products are sorted by name in ascending order.
EAGLE 14M-35 PAZ (White)
Open-Ended Timing Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
77.68€ excl. VAT
93.99€ incl. VAT
EAGLE 14M-52.5 PAZ (White)
Open-Ended Timing Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
124.21€ excl. VAT
150.30€ incl. VAT
EAGLE 14M-70 PAZ (White)
Open-Ended Timing Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
199.17€ excl. VAT
241.00€ incl. VAT
EAGLE 14M-105 PAZ (White)
Open-Ended Timing Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
279.80€ excl. VAT
338.56€ incl. VAT
Products are sorted by name in ascending order.
Belt Construction
- Polyurethane helical offset teeth
- Steel tension member
- Polyurethane back
- Nylon covering fabric on the teeth
Typical Applications
EAGLE 14M polyurethane timing belts are used in specialized applications where a self-guiding belt is required, without alignment by a guide track or pulley flanges. Additionally, these belts offer significantly lower noise and vibration compared to other profiles with straight-cut teeth.
They are commonly used in high-precision positioning and sorting applications, as well as in single-purpose machines, woodworking, packaging, and food processing equipment.
Properties
- High transmitted power and long life
- Resistant to oil, petrol, benzene, UV radiation and ozone
- Abrasion resistance
- Temperature resistance, depending on the method of use, from −30 °C to +80 °C
- Up to 19 dB noise reduction compared to straight tooth timing belts
- Arrow gearing has self-guiding capabilities, no belt guidance is necessary
- Very quiet operation and extremely low vibration
- Aging and ozone resistance
Belt Code Description
Example:
EAGLE 14M-35 PAZ (White)
| Code Part | Description |
|---|---|
| EAGLE |
Type of polyurethane helical offset tooth timing belts (SILENTSYNC) |
| 14M |
Belt profile and tooth pitch in mm |
| 35 |
Belt width in mm |
| PAZ |
Belt surface layer |
| White |
Belt color |
Color
Polyurethane self-guiding open-ended EAGLE timing belts are produced as standard in white with gray fabric on the teeth (PAZ). The exception is the belts in the EAGLE 5M profile, which are produced in black with black fabric on the teeth (PAZ).
Nylon fabric on the teeth (PAZ) is automatically standard on EAGLE helical offset tooth timing belts. It serves to protect the teeth and reduce the coefficient of friction.
Documents for Download
Dimensions and Parameters of Polyurethane Open-Ended Timing Belts
TYMA CZ Data Sheets
Czech and English (PDF 903.91 kB)
Related Products
EAGLE 14M Timing Pulleys for SILENTSYNC Belts
EAGLE Clamping Plates for Polyurethane Timing Belts
5M, 8M, 10M and 14M profile for polyurethane self-guided timing belts with H.O.T. profile (for EAGLE and SILENTSYNC belts).
Belt Manufacturer Profile
Elatech S.r.l. is fully dedicated to the research, development, and manufacturing of polyurethane timing belts and flat belts for industrial applications – whether for power transmission, linear motion, lifting, or conveying functions requiring precise synchronous movement. It offers extensive customization options to adapt supplied components to specific applications.
Together with SIT S.p.A. and other companies, Elatech S.r.l. is part of the Scaglia Group. The Group operates in Europe, North America, and Asia, and comprises 7 manufacturing facilities and 6 subsidiaries with more than 1,000 employees. As part of the Group, the individual companies benefit from shared technologies and innovations, providing financial stability and sustainable growth.
We are an authorized distributor of polyurethane timing belts and conveyor belts from Elatech S.r.l., as well as shaft couplings, bushes, sprockets, and pulleys from SIT S.p.A.
