ZIPGUIDE Special Open-Ended V-Belts
ZIPGUIDE conveyor V-belts, featuring a premium top layer and ZIPLINK connection technology, were originally designed for the ceramic tile industry.
Their key advantage is the exceptionally quick and simple joining process – carried out directly on the conveyor, with no need for special tools, qualified personnel or external service. The resulting joint is not prone to further failures.
ZIPGUIDE belts are manufactured as open-ended lengths in standard profiles: 13 × 8 (13/A), 17 × 11 (17/B), and 22 × 14 (22/C).

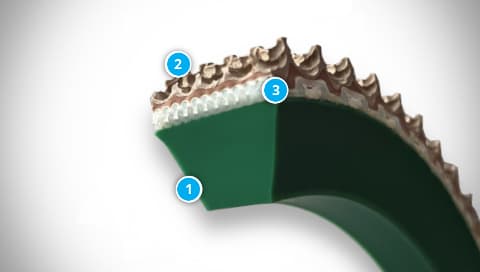

Belt Construction
- PVC V-guide body
- Functional top layer
- ZIPLINK connecting layer – spiral structure
Typical Applications
The most common application of ZIPGUIDE V-belts is as conveyor belts in the ceramic tile industry.
They’re designed for conveying tiles throughout the ceramic production process – from kiln loading to handling and final packaging.
Properties
- Secure and stable joint with no weak points
- Easy installation with no special tools required
- High grip
- Excellent abrasion resistance
- Resistant to high temperatures
- Resistant to chemicals (including acids, oils, solvents, and alkalis)
Materials
V-Guide
PVC in green with 60 Shore A hardness and excellent shape memory (the ability to stretch and return to its original form) – no permanent deformation.

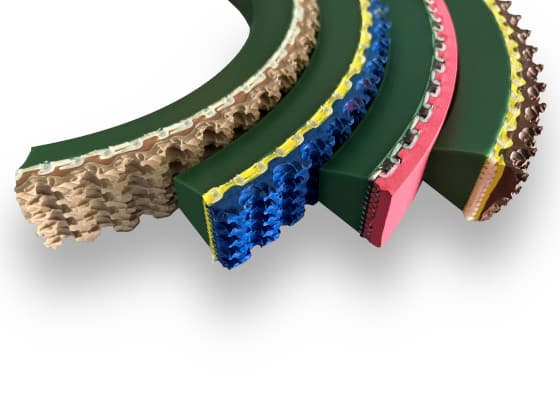

Top Layer
| Material | Color | Properties | Surface Structure |
|---|---|---|---|
| Natural rubber | Red | Excellent grip | Smooth |
| Nitrile BX | Blue | High wear resistance | C37 Rough Top / Supergrip |
| Natural rubber | Natural | Excellent grip | C37 Rough Top / Supergrip |
| Nitrile | Brown | High grip / High wear resistance | C37 Rough Top / Supergrip |
Belt Joints
According to the manufacturer, switching to ZIPGUIDE can reduce service effort and belt replacement time by more than 50%.
Let’s watch a short video at how the replacement is done in practice:
