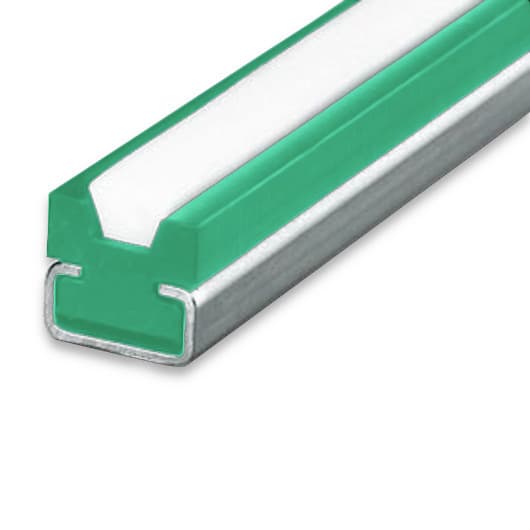

VC (10/Z) - 20 × 15 mm for C-3 Profile (PE-1000, L = 2000 mm)
Belt Guide
Price without VAT: 20.50€
Price including VAT: 24.80€ with VAT
Catalogue price excluding VAT:
20.89€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Specifications
Standard length.

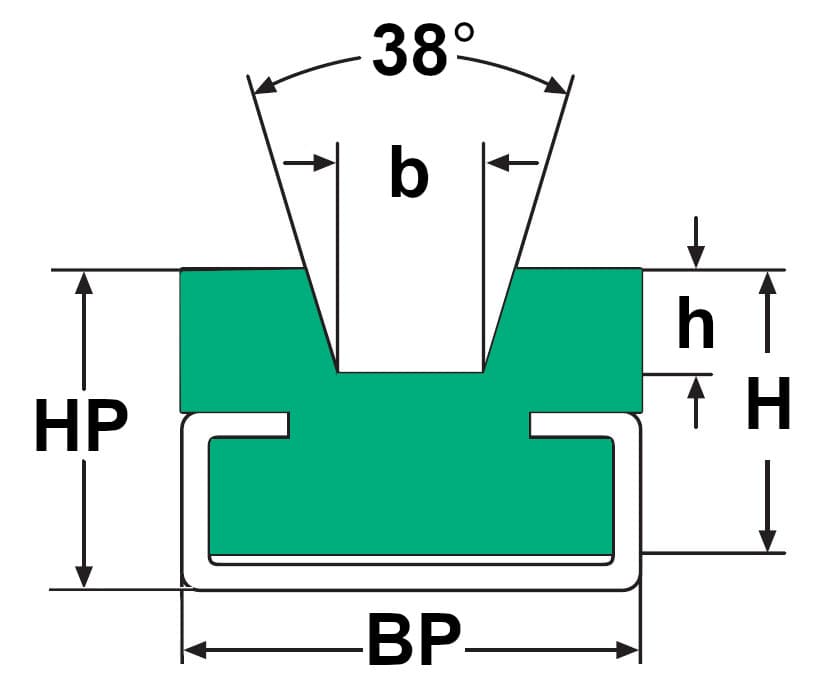

Dimensions of the cross-sectional profile. B represents the width, and H represents the height.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation PE-1000.
Belt Guide Description
VC (10/Z) - 20 × 15 mm for C-3 Profile (PE-1000, L = 2000 mm) are standard VC type sliding guides fixed using standardized metal C-profiles directly on the machines. They reduce noise, friction and stress on the machine, as well as requirements for lubricants. They reduce the stress on the V-belt and increase its service life.
The sliding belt guides are made of a special highly resistant plastic.
Caution
Plastic guides for C-profiles are supplied without these C-profiles. You can find them in the Metallic C-Profiles Eshop category. Choose the size of the profile according to the information given for the type of guide.

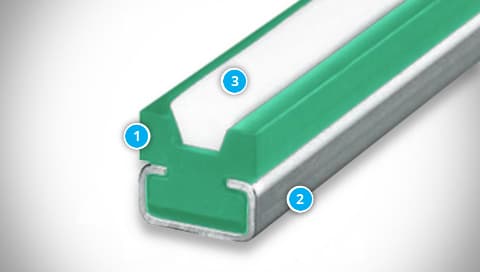

Construction
- Open belt guide
- C-profile – galvanized steel profile in the shape of "C" for mounting on the machine
- V-belt
Typical Applications
Sliding belt guides for C-profiles are intended for all types of V-belts.
They are most often used for conveyors in the glass, food, woodworking, ceramic industries, sorting and distribution centers, airports or the automotive industry, etc.
Materials
Special highly resistant PE-1000 plastic, standard in green design.
PE-1000 (PE-UHMW) is a polyethylene with very high molecular weight used in applications requiring a low coefficient of friction as well as extremely high durability, abrasion resistance, high impact strength and resistance to chemicals. It is characterized by very good machinability and is a suitable material for the production of sliding friction guides.
Documents for Download
Dimensions and Parameters of VC Sliding Belt Guides
TYMA CZ Data Sheets
Czech and English (PDF 135.56 kB)
Dimensions and Parameters of C-Profiles for Sliding Guides
TYMA CZ Data Sheets
Czech and English (PDF 180.31 kB)
Related Products
Metallic C-Profiles
Standardized metal profiles for attaching plastic chain or belt guides to the machine.
V-Belts
V-belts are used to transmit power, respectively revolutions from the driving to the driven pulley. V-belt transmissions are prone to slippage.
Belt Tensioners
Rollers with screw and tensioning pulleys for tensioning of common smaller profiles industrial V-belts during operation.
Questions about This Product?
Don’t hesitate to contact us – our specialists will be happy to help with any questions about this belt guide.
