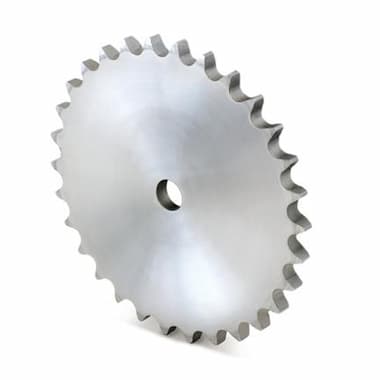

04-1-32-P (6 × 2.8 mm) - 32 Teeth, without Hub (Steel)
Sprocket
Specifications
Type:
04-1
Diameter d0 (mm):
61.21
No. of teeth:
32
Width bf1 (mm):
2.60
Bore d1 (mm):
8.00
Bore d1
Diameter of the sprocket. For sprockets, it is often denoted as d1 or d1.
Diameter of the sprocket. For sprockets, it is often denoted as d1 or d1.
Brand:
-
Brand: -
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Material:
Steel
Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Weight (kg):
0.040
Sprocket Description
04-1-32-P (6 × 2.8 mm) - 32 Teeth, without Hub (Steel) plate wheels (flat sprockets) are designed for drives with all types of 04-1 (6 mm × 2.8 mm) simplex roller chains of the so-called European series (B-series), standardized to ISO 606 (DIN 8187).
Typical Applications
The 04-1 plate wheels are designed for general use in light and heavy industry.
They are used in drives, but can also be used for lifting or transporting material.
Materials
C43 steel.
Other materials on request.
Documents for Download
Dimensions and Parameters of 04-1 Plate Wheels for DIN 8187 Roller Chains
TYMA CZ Data Sheets
Czech and English (PDF 206.58 kB)
