10/Z Link ACCU-LINK (3L, Green)

Link Open-Ended V-Belt

Price on Request The price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form. The price and delivery conditions will be answered by email.

In Stock We update the stock availability information every 2 hours.

The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.

If you submit the form, we will use your personal data (name, surname, email) to reply to your inquiry or question. All important information can be found in the Privacy Policy.

Parameters

Profile: 10/Z Profile
Multiple belts: profile – no. of ribs. Caution! The number of ribs refers to the number of belt protrusions = the number of teeth on the pulley!
Délka L2 (mm): role Length L
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
Brand: - Brand: -
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Weight (kg): 0.060
Length Ld (mm): 1,00
Width (mm): 10,00
Material: Polyamide Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation PA.

Description

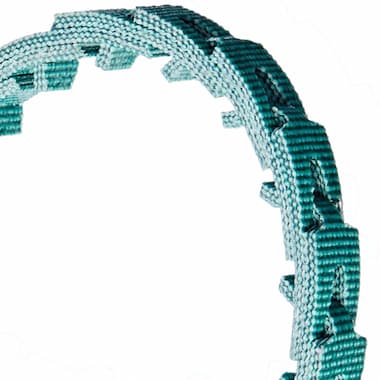

10/Z Link ACCU-LINK (3L, Green) are the link V-Belts linked from individual links into endless belts of any length.

The belts have a special construction, the individual links are made of custom polyurethane elastomers reinforced with multiple plies of polyester fabric. The belts are characterized by long service life, high temperature and chemical resistance.

Construction

Link V-Belts Structure

  1. Polyurethane elastomer
  2. Reinforced with multiple plies of polyester fabric

Fields of Use

Link V-belts are used where conventional endless V-Belts cannot be used due to technical reasons, where it is necessary to mount the belt directly on the machine. They are suitable as spare belts, which can replace any length of V-Belt.

They are also used in conveyor systems and equipment where specific temperature or chemical resistance is required.

Characteristics

  • High power transmission
  • High durability, low maintenance costs
  • Use of standardized SPZ, SPA, SPB, SPC pulleys
  • Resistant to oil and various chemicals
  • Temperature resistance from −40 °C to +105 °C
  • Possibility of delivery of any length from the roll
