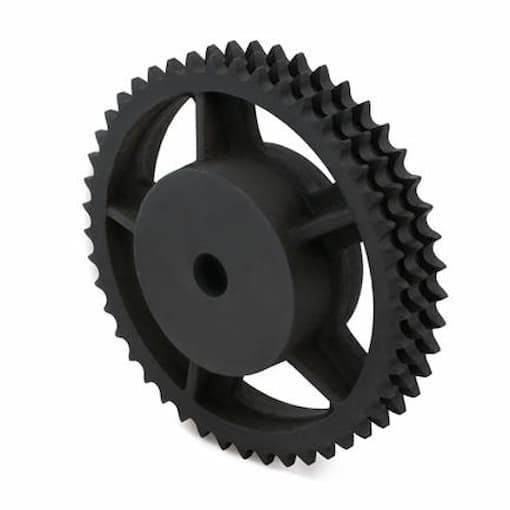

16B-3-70-N-GG (1” × 17.02 mm) - 70 Teeth, with Hub (Cast Iron)
Sprocket
Sprocket Parameters
Type:
16B-3
Diameter d0 (mm):
566.15
No. of teeth:
70
Width L (mm):
110.00
Width L
Overall width of the sprocket, including the hub. For sprockets with a hub, it is commonly denoted as L.
Overall width of the sprocket, including the hub. For sprockets with a hub, it is commonly denoted as L.
Bore d1 (mm):
44.00
Bore d1
Diameter of the sprocket. For sprockets, it is often denoted as d1 or d1.
Diameter of the sprocket. For sprockets, it is often denoted as d1 or d1.
Brand:
-
Brand: -
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Material:
Grey Cast Iron
Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation GG.
In the TYMA Product Catalogues you can find this material also described with the abbreviation GG.
Weight (kg):
180.000
Sprocket Description
16B-3-70-N-GG (1” × 17.02 mm) - 70 Teeth, with Hub (Cast Iron) sprockets are designed for drives with all types of 16B-3 (1″ × 17.02 mm) triplex roller chains of the so-called European series (B-series), standardized to ISO 606 (DIN 8187).
Sprocket Fields of Use
The 16B-3 sprockets with hub are designed for use especially in medium industry.
They are used in drives, but can also be used for lifting or transporting material.
Sprocket Material
Grey cast iron.
Documents for Download
Dimensions and Parameters of 16B Sprockets with Hub for DIN 8187 Roller Chains
TYMA CZ Data Sheets
Czech and English (PDF 147.74 kB)
Dimensions and Parameters of 16B Cast Iron Sprockets for DIN 8187 Roller Chains
TYMA CZ Data Sheets
Czech and English (PDF 156.64 kB)
