1CP Sliding Guides for Roller Chains

1CP sliding chain guides are standard sliding guides fixed using standardized metal C-profiles directly on the machines. They reduce noise, friction and stress on the machine, as well as requirements for lubricants. They reduce the stress on the chain and increase its service life.

Chain sliding guides are made of special highly resistant plastic.

Caution

Plastic guides for C-profiles are supplied without these C-profiles. You can find them in the Metallic C-Profiles Eshop category. Choose the size of the profile according to the information given for the type of guide.

display product filter

Products are sorted by name in ascending order.

1CP (06B-1) - 30 × 24 mm for Profile C-10 (PE-1000, L = 2000 mm) Chain Guide

1CP (06B-1) - 30 × 24 mm for Profile C-10 (PE-1000, L = 2000 mm)

Chain Guide

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Price on Request The chain guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

1CP (08B-1) - 30 × 24 mm for Profile C-10 (PE-1000, L = 2000 mm) Chain Guide

1CP (08B-1) - 30 × 24 mm for Profile C-10 (PE-1000, L = 2000 mm)

Chain Guide

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Price on Request The chain guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

1CP (10B-1) - 30 × 24 mm for Profile C-10 (PE-1000, L = 2000 mm) Chain Guide

1CP (10B-1) - 30 × 24 mm for Profile C-10 (PE-1000, L = 2000 mm)

Chain Guide

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Price on Request The chain guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

1CP (12B-1) - 30 × 24 mm for Profile C-10 (PE-1000, L = 2000 mm) Chain Guide

1CP (12B-1) - 30 × 24 mm for Profile C-10 (PE-1000, L = 2000 mm)

Chain Guide

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Price on Request The chain guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

1CP (16B-1) - 45 × 40 mm for Profile C-11 (PE-1000, L = 2000 mm) Chain Guide

1CP (16B-1) - 45 × 40 mm for Profile C-11 (PE-1000, L = 2000 mm)

Chain Guide

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Price on Request The chain guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

Products are sorted by name in ascending order.


Chain Guides Construction

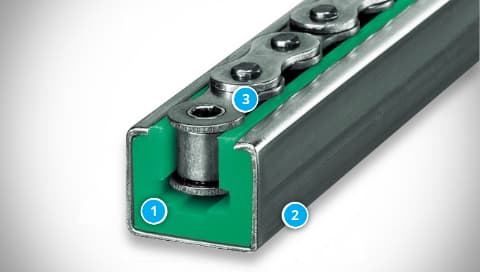

1CP Sliding Chain Guide Construction

  1. Closed chain guide
  2. C-profile – galvanized steel profile in the shape of "C" for mounting on the machine
  3. Single-row roller chain

Chain Guides Fields of Use

Sliding chain guides are used in many industries, in the food, woodworking, glass, ceramic industries, on all kinds of conveyors, in distribution centers, on packaging machines, etc.

Chain Guides Characteristics

  • High wear resistance
  • Excellent sliding properties, without the need for lubrication
  • High chemical and temperature resistance
  • Vibration damping
  • No need for maintenance, no corrosion
  • Temperature resistance up to +80 °C
  • Possibility of use in the food industry

Chain Guides Material

Special highly resistant PE-1000 plastic, standard in green design.

PE-1000 (PE-UHMW) is a polyethylene with very high molecular weight used in applications requiring a low coefficient of friction as well as extremely high durability, abrasion resistance, high impact strength and resistance to chemicals. It is characterized by very good machinability and is a suitable material for the production of sliding friction guides.

Chain Guide Code Description

Example:
1CP (10B-1) - 30 × 24 mm for C-10 Profile (PE-1000, L = 2000 mm)

Code Part Description
1CP

Guide type

10B-1

Roller chain type

30 × 24 mm

Basic dimensions b × h (width × height)

C-10 The size of the corresponding C-profile
PE-1000

Guide material

L = 2000 mm

Standard guide length

Documents for Download

Dimensions and Parameters of 1CP Sliding Chain Guides - Preview

Dimensions and Parameters of 1CP Sliding Chain Guides

TYMA CZ Data Sheets

Czech and English (PDF 165.87 kB)

Dimensions and Parameters of C-Profiles for Sliding Guides - Preview

Dimensions and Parameters of C-Profiles for Sliding Guides

TYMA CZ Data Sheets

Czech and English (PDF 180.31 kB)
