1T Sliding Guides for Roller Chains
1T sliding chain guides are standard sliding guides fixed separately directly on the machines. They reduce noise, friction and stress on the machine, as well as requirements for lubricants. They reduce the stress on the chain and increase its service life.
Chain sliding guides are made of special highly resistant plastic.
Products are sorted by name in ascending order.
1T (06B-1) - 15 × 10 mm (PE-1000, L = 2000 mm)
Chain Guide
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
12.07€ excl. VAT
14.60€ incl. VAT
1T (08B-1) - 20 × 10 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
14.33€ excl. VAT
17.34€ incl. VAT
1T (08B-1) - 20 × 15 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
17.92€ excl. VAT
21.68€ incl. VAT
1T (08B-1) - 20 × 20 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
22.18€ excl. VAT
26.84€ incl. VAT
1T (10B-1) - 20 × 10 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
14.33€ excl. VAT
17.34€ incl. VAT
1T (10B-1) - 20 × 15 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
17.92€ excl. VAT
21.68€ incl. VAT
1T (10B-1) - 20 × 20 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
22.18€ excl. VAT
26.84€ incl. VAT
1T (12B-1) - 25 × 10 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
16.55€ excl. VAT
20.02€ incl. VAT
1T (12B-1) - 25 × 15 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
20.85€ excl. VAT
25.22€ incl. VAT
1T (12B-1) - 25 × 20 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
25.95€ excl. VAT
31.39€ incl. VAT
1T (16B-1) - 40 × 15 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
26.83€ excl. VAT
32.46€ incl. VAT
1T (16B-1) - 40 × 20 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
32.13€ excl. VAT
38.87€ incl. VAT
1T (20B-1) - 45 × 15 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
35.76€ excl. VAT
43.27€ incl. VAT
1T (20B-1) - 45 × 20 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
44.36€ excl. VAT
53.68€ incl. VAT
1T (24B-1) - 60 × 15 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
45.01€ excl. VAT
54.46€ incl. VAT
1T (24B-1) - 60 × 20 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
56.26€ excl. VAT
68.08€ incl. VAT
1T (28B-1) - 75 × 20 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
67.52€ excl. VAT
81.69€ incl. VAT
1T (32B-1) - 80 × 20 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
71.50€ excl. VAT
86.51€ incl. VAT
Products are sorted by name in ascending order.

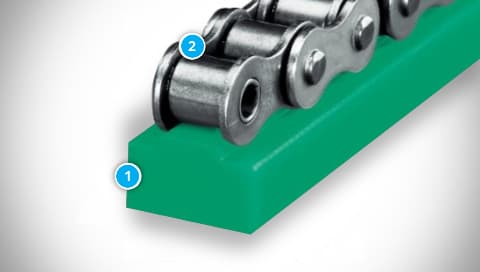

Chain Guides Construction
- Open chain guide
- Single-row roller chain
Chain Guides Fields of Use
Sliding chain guides are used in many industries.
They are commonly found in the food, woodworking, glass, and ceramic industries, as well as on all types of conveyors, in distribution centers, and on packaging machines.
Chain Guides Characteristics
- High wear resistance
- Excellent sliding properties, without the need for lubrication
- High chemical and temperature resistance
- Vibration damping
- No need for maintenance, no corrosion
- Temperature resistance up to +80 °C
- Possibility of use in the food industry
Chain Guides Material
Special highly resistant PE-1000 plastic, standard in green design.
PE-1000 (PE-UHMWUltra High Molecular Weight) is a polyethylene with very high molecular weight used in applications requiring a low coefficient of friction as well as extremely high durability, abrasion resistance, high impact strength and resistance to chemicals. It is characterized by very good machinability and is a suitable material for the production of sliding friction guides.
Chain Guide Code Description
Example:
1T (10B-1) - 20 × 20 mm (PE-1000, L = 2000 mm)
| Code Part | Description |
|---|---|
| 1T |
Guide type |
| 10B-1 |
Roller chain type |
| 20 × 20 mm |
Basic dimensions b × h (width × height) |
| PE-1000 |
Guide material |
| L = 2000 mm |
Standard guide length |
Documents for Download
Dimensions and Parameters of 1T Sliding Chain Guides
TYMA CZ Data Sheets
Czech and English (PDF 149.11 kB)
