2E Sliding Guides for Roller Chains

2E sliding chain guides are standard sliding guides fixed separately directly on the machines. They reduce noise, friction and stress on the machine, as well as requirements for lubricants. They reduce the stress on the chain and increase its service life.

Chain sliding guides are made of special highly resistant plastic.

display product filter

Products are sorted by name in ascending order.

2E (06B-2) - 36 × 15 mm (PE-1000, L = 2000 mm) Chain Guide

2E (06B-2) - 36 × 15 mm (PE-1000, L = 2000 mm)

Chain Guide

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Price on Request The chain guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

2E (08B-2) - 45 × 20 mm (PE-1000, L = 2000 mm) Chain Guide

2E (08B-2) - 45 × 20 mm (PE-1000, L = 2000 mm)

Chain Guide

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Price on Request The chain guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

2E (10B-2) - 50 × 25 mm (PE-1000, L = 2000 mm) Chain Guide

2E (10B-2) - 50 × 25 mm (PE-1000, L = 2000 mm)

Chain Guide

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Price on Request The chain guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

2E (12B-2) - 56 × 25 mm (PE-1000, L = 2000 mm) Chain Guide

2E (12B-2) - 56 × 25 mm (PE-1000, L = 2000 mm)

Chain Guide

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Price on Request The chain guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

2E (16B-2) - 85 × 30 mm (PE-1000, L = 2000 mm) Chain Guide

2E (16B-2) - 85 × 30 mm (PE-1000, L = 2000 mm)

Chain Guide

At Supplier

Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Price on Request The chain guide price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form on the product page. The price and delivery conditions will be answered by email.

Products are sorted by name in ascending order.


Chain Guides Construction

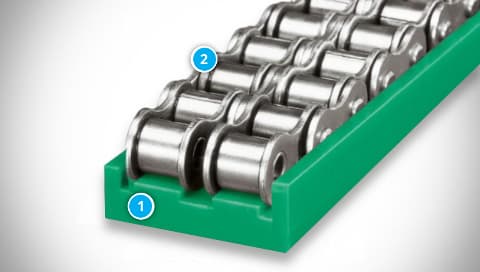

2E Sliding Chain Guide Construction

  1. Open chain guide
  2. Double-row roller chain

Chain Guides Fields of Use

Sliding chain guides are used in many industries, in the food, woodworking, glass, ceramic industries, on all kinds of conveyors, in distribution centers, on packaging machines, etc.

Chain Guides Characteristics

  • High wear resistance
  • Excellent sliding properties, without the need for lubrication
  • High chemical and temperature resistance
  • Vibration damping
  • No need for maintenance, no corrosion
  • Temperature resistance up to +80 °C
  • Possibility of use in the food industry

Chain Guides Material

Special highly resistant PE-1000 plastic, standard in green design.

PE-1000 (PE-UHMW) is a polyethylene with very high molecular weight used in applications requiring a low coefficient of friction as well as extremely high durability, abrasion resistance, high impact strength and resistance to chemicals. It is characterized by very good machinability and is a suitable material for the production of sliding friction guides.

Chain Guide Code Description

Example:
2E (10B-2) - 50 × 20 mm (PE-1000, L = 2000 mm)

Code Part Description
2E

Guide type

10B-2

Roller chain type

50 × 20 mm

Basic dimensions b × h (width × height)

PE-1000

Guide material

L = 2000 mm

Standard guide length

Documents for Download

Dimensions and Parameters of 2E Sliding Chain Guides - Preview

Dimensions and Parameters of 2E Sliding Chain Guides

TYMA CZ Data Sheets

Czech and English (PDF 155.04 kB)
