ATK5 - 100
Open-Ended Timing Belt
Belt Parameters
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation PU+ST.
Belt Description

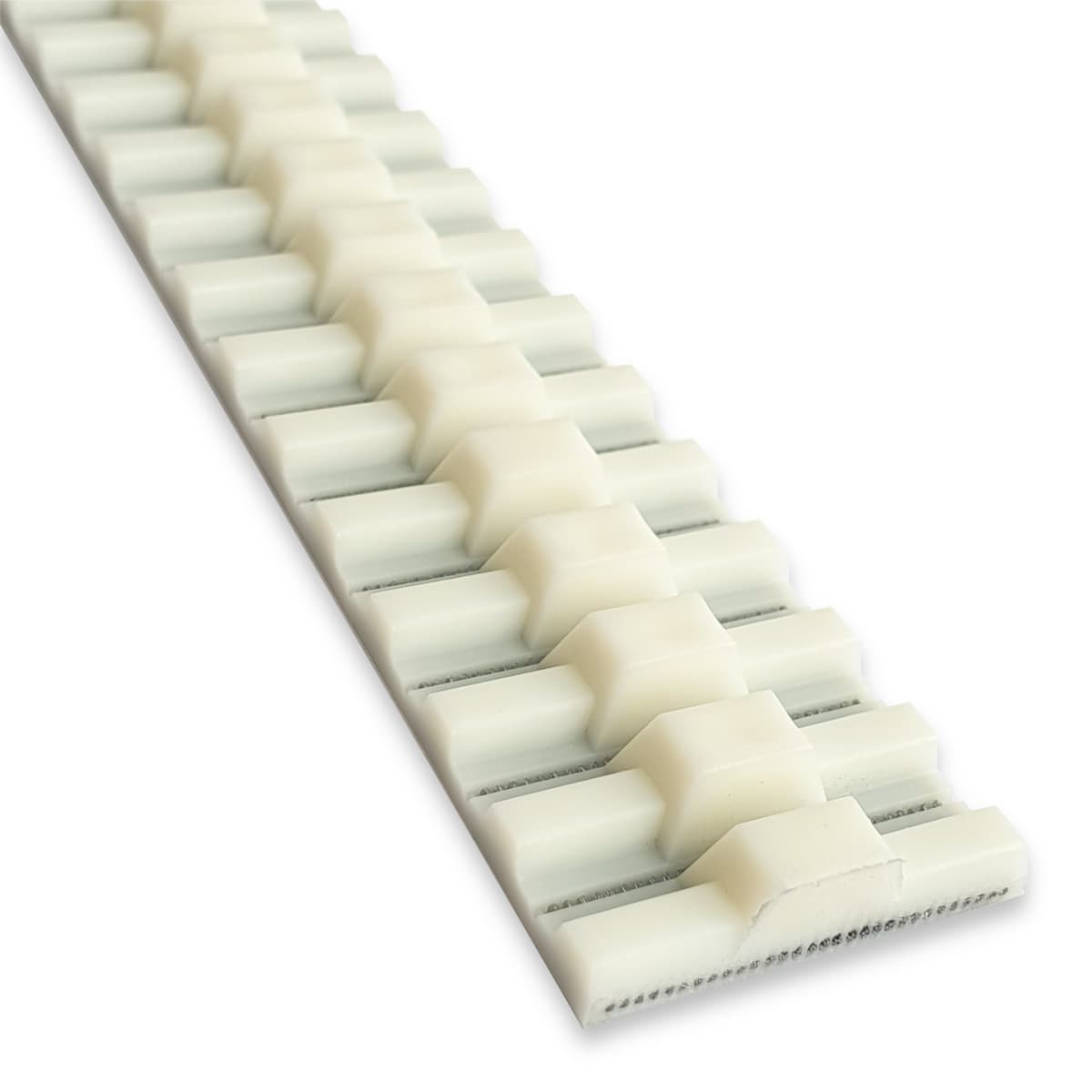

ATK5 - 100 is a polyurethane open-ended timing belt with V-guide. It is manufactured from thermoplastic polyurethane, which has high dimensional stability and wear resistance, and steel tensile fiber.
The open-ended belts can be welded into endless belts.
Belt Construction
- Polyurethane teeth
- Steel cord tension member
- Polyurethane backing
Belt Fields of Use
Polyurethane timing belts are used in all areas, from miniature drives, high-precision positioning and sorting mechanisms, small handheld machines to high-performance drives for building and woodworking machines.
Belt Characteristics
- High transmission power and long life
- Resistant to oil, fuel, benzol, UV radiation and ozone
- Wear-resistant
- Temperature range, depending on application, from −30 °C to +80 °C
- Maintenance-free
