Endless T150, Ne, Pu and Si Belts
Endless T150, Ne, Pu and Si flat belts are drive belts for high speeds and transmissions made without any joint.
The base is made of nylon tensile fabric made exactly to the given length. The fabric is coated with synthetic rubber, polyurethane or silicone.
They are available in various thicknesses and surface variants depending on the type of application.
Standard dimensions are in types T150, others Ne, Pu and Si are only on request with a minimum quantity.
Belt Construction
- Tensile member
- Bottom cover material
- Top cover material

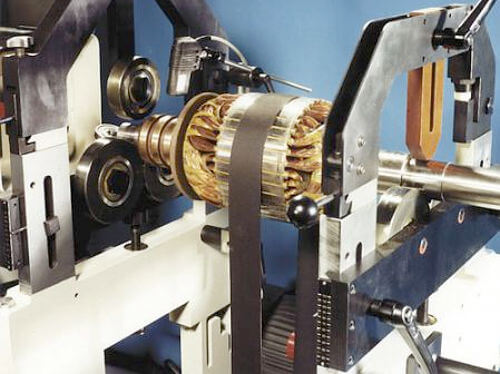

Typical Applications
Endless T150, Ne, Pu and Si flat belts are designed for drive machines in all industries where a homogeneous belt without any joint must be used.
They are used mainly in machine tools, saws, grinders, packaging machines, printing machines and many other machines and equipment.
Properties
- Excellent flexibility, very small pulley diameters
- High coefficient of friction and very high efficiency
- Very low noise
- Transmission of the highest speeds and peripheral speeds up to 80 m/s
- Very precise dimensions, small tolerances
- Possibility to use standardized pulleys according to DIN
Specifications
| T150 Belt Parameter | Value |
|---|---|
| Fabric – top | neoprene |
| Fabric – bottom | neoprene |
| Colour | black |
| Breaking force | 3000 N |
| Elongation for recommended preload | 0.7 % |
| Recommended preload | 400 N per 1 cm width |
| Coefficient of friction | 0.5 / 0.6 |
| Minimum pulley diameter Dp min | 15 mm |
| Temperature |
−30 to +110 °C |
| Antistatic | yes |
| Length range | 200 to 3850 mm |
| Width | 3 to 330 mm |
| Thickness | 0,9 mm +/−0,15 |
For technical parameters of other special types please see the catalogue sheet.
Belt Code Description
Example:
900×50 T150
| Code Part | Description |
|---|---|
| 900 |
Belt length in mm |
| 50 |
Belt width in mm |
| T150 |
Type of belt |
Documents for Download
Dimensions and Parameters of Endless Flat Belts
TYMA CZ Data Sheets
Czech and English (PDF 185.13 kB)
