SOLIFLEX Homogeneous Belts
Homogeneous SOLIFLEX belts are smooth plastic belts made of TPU or TPE.

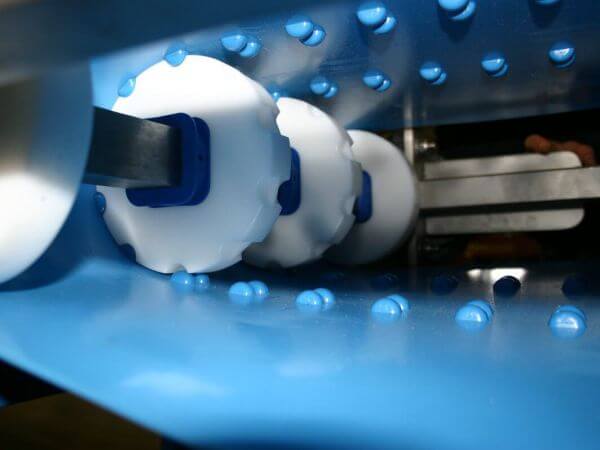

They have a smooth and solid homogeneous surface without any crevices or hinges that could trap bacteria. The belts have no fabric layer. At the bottom of the belt there are regular protrusions that fit exactly into the drive wheels.
They comply with international food standards. The blue color is used to increase food safety.
Belts Fields of Use
SOLIFLEX homogeneous belts are designed for material transport in many industries.
They are used mainly in the food industry in the processing of meat, poultry and fish or in the processing of vegetables. They are also used in bakeries, dairies, freezers, but also on many other machines and equipment.
Belts Presentation Video
Belts Joints
| Joint Type | Description | Illustration |
|---|---|---|

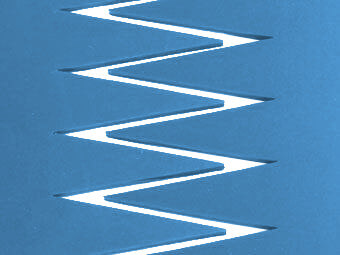

Simple Finger Splice |
A simple punched splice, that is joined into an endless belt by heat on a splicing machine. |
 |

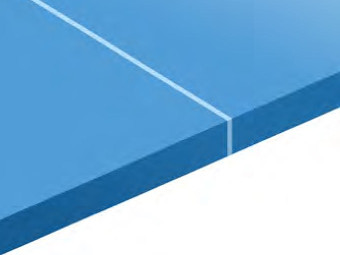

Butt Weld |
The belt is cut straight at both ends and then joined into an endless belt by heat on a welding machine. |
 |

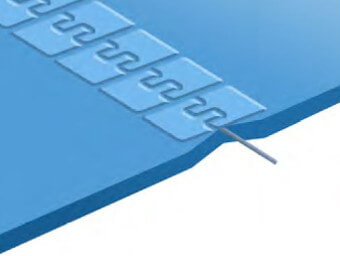

Plastic Clips |
The belt is equipped with plastic clips at both ends and then joined with a plastic pin on the machine. |
 |
Anker Wire Hooks |
The belt is equipped with metal wire hooks at both ends and then joined with a metal wire on the machine. |
 |
Belts Surface Structure

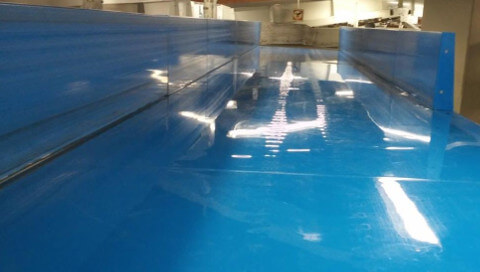

SOLIFLEX conveyor belts have a completely smooth, glossy surface, which facilitates cleaning and represents a perfect hygienically clean solution.
Belts Accessories

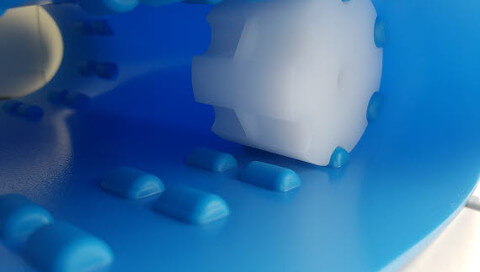

Guides
The SOLIFLEX guide system is designed to allow easy and fast cleaning – with low consumption of water, detergents and in less time. It is thus virtually maintenance-free.
There are various options for lugs or lateral bars positioning.
Standard configurations are DUPLEX (2 pairs of lugs) or QUATTRO (4 pairs of lugs).
| System Type | Description | Illustration |
|---|---|---|

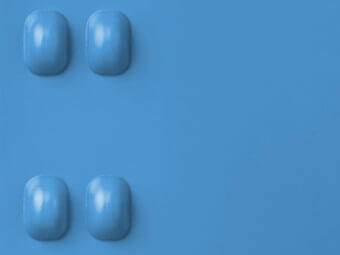

SOLIFLEX PRO |
Self-guiding system for application with a minimum pulley diameter of 94.7 mm. |
 |

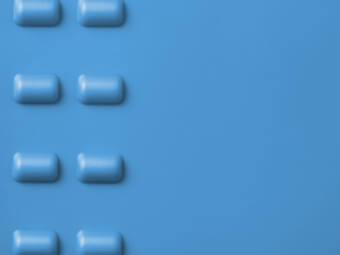

SOLIFLEX PRO MINI |
Self-guiding system for application with a minimum pulley diameter of 47.1 mm. |
 |

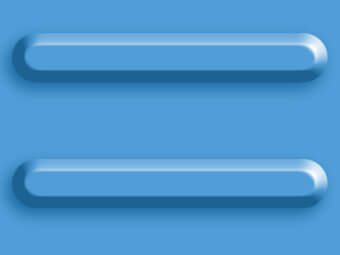

SOLIFLEX CB(Center Bar) |
Synchronous system driven by rows of lateral bars. |
 |

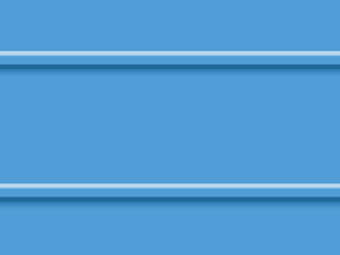

SOLIFLEX FB(Full Bar) |
Synchronous system driven by rows of lateral bars. |
 |

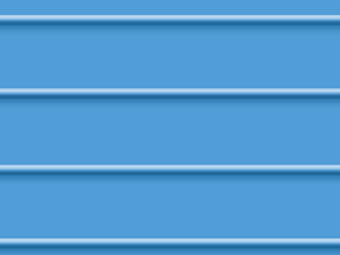

SOLIFLEX FB MINI(Full Bar) |
Synchronous system driven by rows of lateral bars with a minimum pulley diameter of 50.8 mm. |
 |

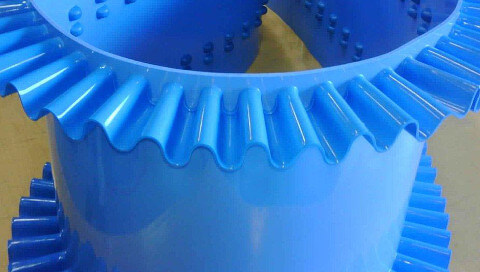

Side Walls
Side walls are made of the same material as SOLIFLEX belts – polyurethane. They are welded on the sides to the top of the belt.
Side walls are used for the transport of bulk materials and for the transport of material at an angle. They prevent spillage or loss of materials.

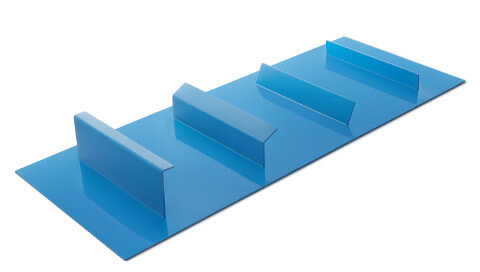

Transverse Cleats
Transverse cleats made of the same material as SOLIFLEX belts – polyurethane. They are welded the on top of a belt for inclined/declined transport. They prevent the material from sliding or falling.
The possibilities of their shapes and fastening are wide and are based on the used material of the belt, as well as on the requirements for optimizing the function of transporting the material or objects.
Documents for Download
.jpg)
Related Products
Synthetic Conveyor Belts
Plastic conveyor belts that are used in almost all industries. They are designed for transport and handling of material mainly in the indoor environment.
Elastomer Conveyor Belts
Applications in difficult operating conditions. They meet high requirements for abrasion, temperature, mechanical and chemical resistance.
ZIPLINK Special Conveyor Belts
High quality belts consisting of a special spiral net with a surface layer. The belts can be connected quickly and easily without special tools or service. It brings lower costs and minimizes production losses.
Modular Belts
Plastic conveyor belts for demanding applications. The modular belts consist of plastic modules which are connected with connecting pins. They are driven by gear wheels, which also have the function of belt guide.
Manufacturer Profile
Founded in 1950, Ammeraal Beltech is a global market leader in the design, manufacturing, fabrication and servicing of high-quality, high-performance process and conveyor belts, available today in 150 countries around the world. You can find their products almost in all industries. They employ over 2,750 people in the business.
They operate 10 manufacturing sites in Europe, the USA, Canada and Asia. They have sales and fabrication centres at over 80 sites worldwide and they have own subsidiaries in more than 25 countries.
Since 2012, our company has been an official distributor.
