Polyethylene and Polyester Conveyor Belts
Conveyor belts made of polyethylene and polyester are designed for use even in cases that require increased resistance of the belt to pyrolysis - when the belt is non-toxic when burning.
We offer a wide range of their different profiles.
Main Types of Belt Materials
The main types of materials for polyethylene and polyester coatings are:
PEFLEXSpecial belts with a polyethylene surface with excellent chemical resistance. They are resistant to pyrolysis. They have a non-stick surface.
POLIFLEXSpecial belts with a polyethylene surface with excellent chemical resistance. They are resistant to pyrolysis. They have a non-stick surface and small bending diameters.
POLIKLEENSpecial belts with a polyethylene surface with excellent chemical resistance. They are resistant to pyrolysis. They have good wear resistance and they are easy to clean.
AMTELSpecial belts with a polyester surface are mechanically very strong, resistant to abrasion and cuts and at the same time flexible at low temperatures. They are resistant to hydrolysis and pyrolysis.
The base of the belt consists of a fabric, which is coated on the top and bottom side with polyethylene – PEFLEX, POLIFLEX or POLIKLEEN or with polyester – AMTEL.
The belt consists of one or more layers that ensure its strength, stability and cut resistance.
- Bottom cover layer
- Inner layer
- Top cover layer
Belts Fields of Use

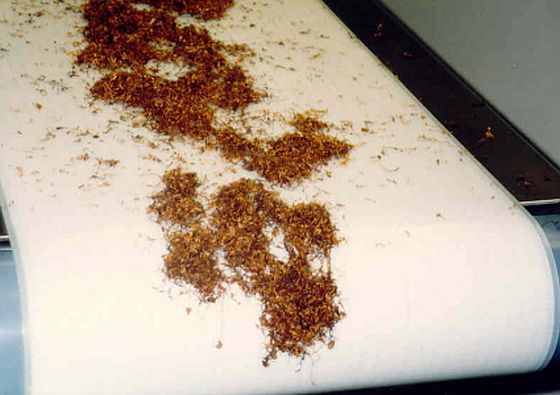

PEFLEX, POLIFLEX and AMTEL conveyor belts are intended for use mainly in the tobacco industry and the food industry.
POLIKLEEN conveyor belts are intended for use mainly in the tobacco industry and in the woodworking industry – for example in painting.
Belts Code Description
PEFLEX ESM10/2 0+02 Transparent M1 AS FG NL
Force at 1% elongation [N/mm]
Number of plies
Bottom side: thickness / type of fabric / type of structure
Top side: thickness / type of fabric / type of structure
|M1 AS FG NL||
Additional information, characteristics:
Joints can be made depending on the material of which the particular belt is made. You will find the exact information in the technical documentation of the selected belt.
Simple Finger Splice
A simple punched splice, that is joined into an endless belt by heat on a splicing machine. It is performed on belts with one fabric layer.
Double Finger Splice
Combined splice. First the belt must be separated into individual layers, which are then prepared separately for splicing. On the splicing machine, the layers are subsequently joined into an endless belt by heat. It is performed on multilayer belts.
Anker A Wire Hooks
Wide range for use in all operations from packaging lines, pharmaceutical industry, food industry, laundries. These are the most used connectors for PVC belts.
Anker G Lacing
Basic connection with lower strength, for which no installation jig is required. Ideal for undemanding joints. It is used especially by customers who do not connect belts too often.
Alligator RS – Ready Set
Easy installation, good strength and possible to use for pulleys with small diameters. Ideal for sorting lines, applications in agriculture, etc.
In addition to the above-mentioned most common types, it is possible to connect belts by other methods according to the requirements of the specific application. Our specialists will be happy to provide you with more information.
Belts Surface Structure
The surface structure ensures the specific properties of the belt. Applications range from easy separation of the product from the belt to the use of surface adhesion in technological processes or for inclined transport.
The surface structures can be on the top or bottom cover layer. The choice of structure depends on the properties of the transported product.
There are many types of structures in the product range. The most common can be found in the Overview of Standard Surface Profiles (PDF file for download).
Guide profiles ensure direct belt guidance and prevent belt movement on the rollers. The result is a smooth guidance without a polygon effect, which is also suitable for higher speeds.
Profiles made of PVC, polyurethane or polyester are welded or glued to the bottom side of the conveyor belt.
The V-profile can also be used as a transverse carrier or side edge for transporting material.
The most common way of guiding the belt is a V-guide.
The smooth, clean design of the wedge is less prone to contamination.
On the bottom side of the belt there is a wedge with pressed teeth, which allow easier bending and thus smaller cylinder diameters than solid wedges.
In addition to the V-profiles, the guide profiles can also be square. However, their use is far from numerous. If you are interested in implementing square guide profiles, please contact us.
BORDOFLEX side walls made of PVC or polyurethane are welded on the sides to the top of the belt.
Side walls are used for the transport of bulk materials and for the transport of material at an angle. They prevent spillage or loss of materials.
Transverse cleats made of PVC, polyurethane or polyester on top of a belt for inclined/declined transport. They prevent the material from sliding or falling.
The possibilities of their shapes and fastening are wide and are based on the used material of the belt, as well as on the requirements for optimizing the function of transporting the material or objects.
Additional Belts Modifications
Punching of conveyor belts is performed for the transport of products using vacuum and for applications with photocell control.
Punching is performed on punching machines, which are able to produce punching in a precisely defined arrangement.
AMSEAL Sealed Edges
The AMSEAL sealed edge system guarantees reliable protection of the belt edges. It prevents fraying and thus prevents the penetration of bacteria, oils and fats into the belt structure.
The AMSEAL edge protection completely seals the edge of the belt with a thermoplastic strip. It increases the safety and hygiene of food production, increases the life of the belt and enables easy cleaning.
It is most often used in the food industry, processing of meat, fish, fruit, milk and other foods, in bakeries and other operations.
Documents for Download
Question about the Belt Category
Do not hesitate to contact us with any questions about products in this category.
