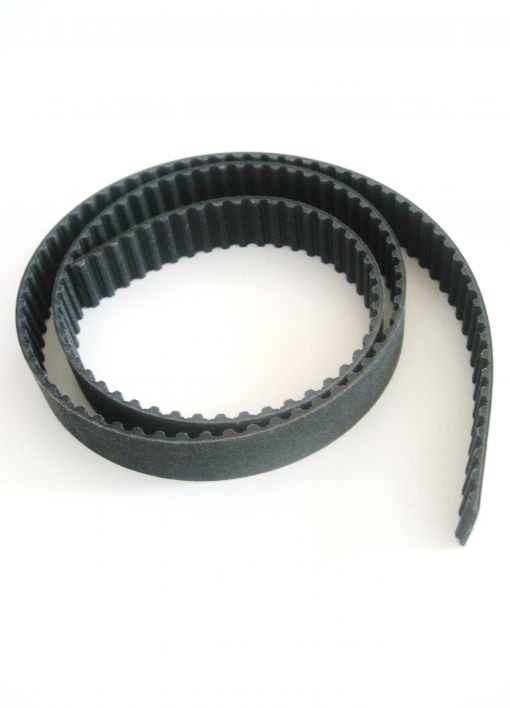

HTD 5M - 9 CXP CONTI SYNCHROLINE (Neoprene, Glass Cord)

Open-Ended Timing Belt

Price on Request The belt price is calculated after receiving information about up-to-date prices from our suppliers. Please, fill in your email address and the required number of pieces and submit the form. The price and delivery conditions will be answered by email.

At supplier, on request The delivery time will be determined after receiving information about up-to-date availability from our suppliers. Please, fill in your email address and the required number of pieces and submit the form. Estimated time of shipping will be answered along with the price by email.

If you submit the form, we will use your personal data (name, surname, email) to reply to your inquiry or question. All important information can be found in the Privacy Policy.

Belt Parameters

Profile: HTD 5M-CXP Profile
Multiple belts: profile – no. of ribs. Caution! The number of ribs refers to the number of belt protrusions = the number of teeth on the pulley!
Délka L2 (mm): - Length L
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
Brand: ContiTech
Weight (kg): 0.120
Length Ld (mm): 1000,00
Width (mm): 9,00
Material: Neoprene with Fiberglass Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation NEO+GLAS.

Belt Description

HTD 5M - 9 CXP CONTI SYNCHROLINE (Neoprene, Glass Cord) is a neoprene open-ended timing belt designed for use in automatic door opening systems.

Their great length stability guarantees high operational reliability and a long maintenance-free service life. The belts have a high resistance to abrasion throughout their lifetime, quiet and smooth operation during long-term operation. Construction, layout and assembly are very simple.

Belt Construction

CONTI SYNCHROLINE Belt Structure

  1. Polyamide fabric
  2. Synthetic rubber teeth
  3. Glass cord tension member
  4. Synthetic rubber backing

Belt Fields of Use

The CONTI SYNCHROLINE timing belts are mainly used in automatic door opening systems, lift doors and garage doors.

Belt Characteristics

  • High transmitted power and long service life
  • Conditionally resistant to oil
  • Suitable for tropical climates
  • Temperature range, depending on application, from −20 °C to +100 °C

Documents for Download

Dimensions and Parameters of CONTI SYNCHROLINE Timing Belts - Preview

Dimensions and Parameters of CONTI SYNCHROLINE Timing Belts

TYMA CZ Data Sheets

Czech and English (PDF 200.91 kB)

Drive Belts - Preview

Drive Belts

TYMA CZ Catalogue

Czech and English (PDF 4.54 MB)

CONTI SYNCHROLINE - Preview

CONTI SYNCHROLINE

ContiTech Product Overview

English and German (PDF 216.98 kB)
