RC18 (18mm) - 28 × 24 mm for C-5 Profile (PE-1000, L = 2000 mm)
Belt Guide
Price without VAT: 30.48€
Price including VAT: 36.88€ with VAT
Catalogue price excluding VAT:
31.08€
At supplier, we usually ship within 3 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Belt Guide Parameters
Standard length.

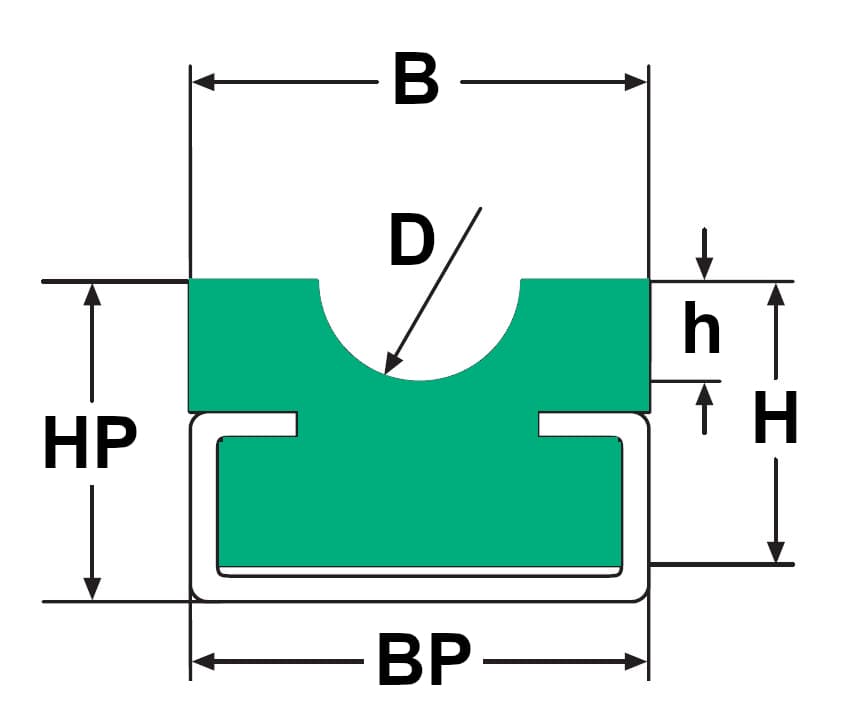

Dimensions of the cross-sectional profile. B represents the width, and H represents the height.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation PE-1000.
Belt Guide Description
RC18 (18mm) - 28 × 24 mm for C-5 Profile (PE-1000, L = 2000 mm) are standard RC type sliding guides fixed using standardized metal C-profiles directly on the machines. They reduce noise, friction and stress on the machine, as well as requirements for lubricants. They reduce the stress on the round belt and increase its service life.
The sliding belt guides are made of a special highly resistant plastic.
Caution
Plastic guides for C-profiles are supplied without these C-profiles. You can find them in the Metallic C-Profiles Eshop category. Choose the size of the profile according to the information given for the type of guide.

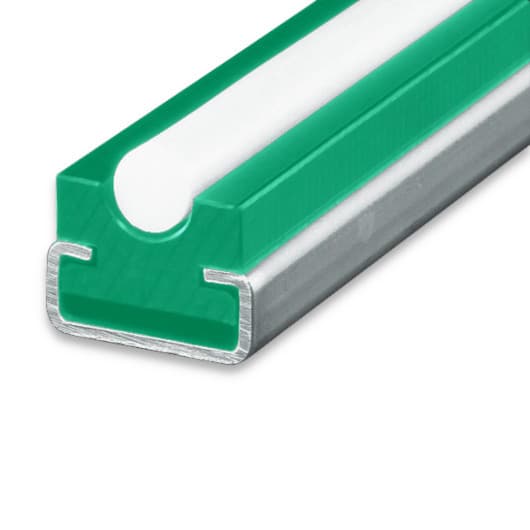

Belt Guide Construction
- Open belt guide
- C-profile – galvanized steel profile in the shape of "C" for mounting on the machine
- Round belt
Belt Guide Fields of Use
Sliding belt guides for C-profiles are intended for all types of round belts.
They are most often used for conveyors in the glass, food, woodworking, ceramic industries, sorting and distribution centers, airports or the automotive industry, etc.
Belt Guide Material
Special highly resistant PE-1000 plastic, standard in green design.
PE-1000 (PE-UHMWUltra High Molecular Weight) is a polyethylene with very high molecular weight used in applications requiring a low coefficient of friction as well as extremely high durability, abrasion resistance, high impact strength and resistance to chemicals. It is characterized by very good machinability and is a suitable material for the production of sliding friction guides.
Documents for Download
Dimensions and Parameters of RC Sliding Belt Guides
TYMA CZ Data Sheets
Czech and English (PDF 138.02 kB)
Dimensions and Parameters of C-Profiles for Sliding Guides
TYMA CZ Data Sheets
Czech and English (PDF 180.31 kB)
