ESCOGEAR S Series Couplings
ESCOGEAR S are spindle gear couplings from ESCO for transmitting high torques at angular misalignments of up to 3°.
Each coupling is custom-engineered to meet the specific operating conditions of the application – from gear geometry and heat treatment to the shaft connection type.
Shaft Coupling Description
ESCOGEAR S series spindle gear couplings are torsionally rigid, double-engagement couplings. They consist of two sleeves with internal straight teeth mounted on the input and output shafts, two hubs with external crowned or MULTICROWN teeth, and a floating shaft connected to both hubs.
Both engagement zones are protected by a specialized sealing system that prevents lubricant leakage and protects the gearing against contamination.
Relubrication with grease or oil is straightforward and supports extended service intervals.
Shaft Coupling Construction
- Input and output shafts
- Sleeve with internal straight teeth
- Hub with external MULTICROWN teeth
- Sealing system
- Floating shaft
Typical Applications
ESCOGEAR S spindle gear couplings are designed for the steel industry.

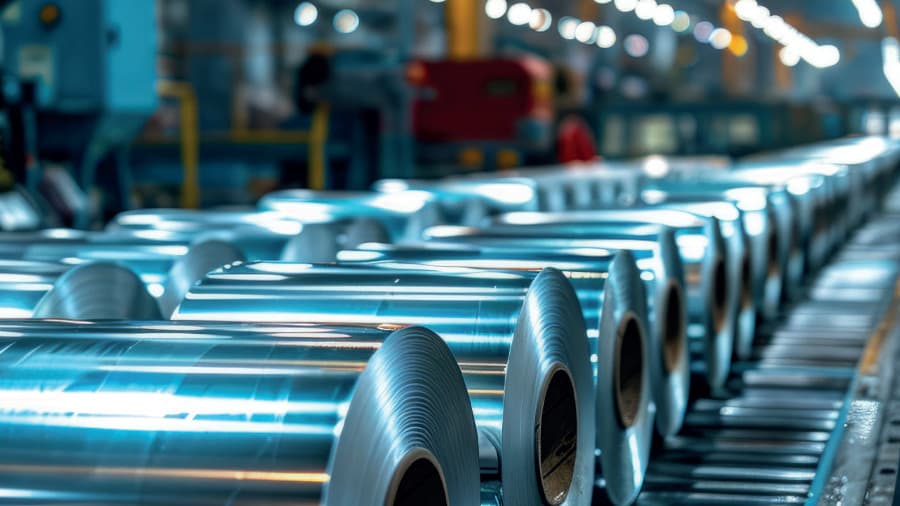

Typical applications include rolling mill drives – for hot and cold rolling, continuous casting installations, straightening presses, and rotary furnaces, as well as Steckel mills, plate mills, and long product rolling mills (bar, wire, billet, sections, and tubes).
Materials
Spindle coupling components are manufactured from high-strength alloy steel with carefully selected heat treatment tailored to the stress levels and required service life.
The optimal heat treatment of the coupling gear teeth ensures the right balance between core hardness and case depth. Nitriding is the standard surface hardening process applied to the gear teeth.
Key Features
- High torque transmission at misalignments of up to 3°
- Custom engineering – each coupling designed for the specific application
- Patented MULTICROWN tooth profile – optimized gear geometry tailored to operating requirements
- Hardened toothing – high wear resistance and long service life
- Flexible lubrication – grease or oil to suit operational requirements
- Compact installation dimensions
- Wide range of shaft connection options
Documents for Download
Related Products
ESCODISC FIL Composite Series Couplings
Questions about This Shaft Coupling Category?
Don’t hesitate to contact us with any questions about products in this category.
We also provide design and calculation of transmission components, including shaft couplings. In the case of your interest in this service, use the detailed Drive or Coupling Calculation Form.
