SIT TRASCO ES GESMC Hubs (Compact Clamping)
GESMC compact clamping hubs are parts designed for SIT TRASCO ES zero-backlash shaft couplings. They are sometimes simply called as compact version of GESM series hubs, or labeled as GESM C or GES MC.
SIT TRASCO ES are torsionally flexible, puncture-proof shaft couplings with two metal hubs with front claws and a polyurethane element. They transmit torque through a high-precision pressure-stressed elastic star-shaped buffer which absorbs shock and torsional vibration. The hubs are manufactured with minimal backlash so that the flexible elements are very tightly inserted into the front teeth to make a so-called zero-backlash coupling. These compact GESMC hubs with reduced overall length are made of aluminium alloy with a clamping joint and tightening screw.
Products are sorted by name in ascending order.
TRASCO ES 7 GESMC (GESMC7F3) - Hub (d = 3F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.68€ excl. VAT
14.13€ incl. VAT
TRASCO ES 7 GESMC (GESMC7F4) - Hub (d = 4F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.68€ excl. VAT
14.13€ incl. VAT
TRASCO ES 7 GESMC (GESMC7F5) - Hub (d = 5F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.68€ excl. VAT
14.13€ incl. VAT
TRASCO ES 7 GESMC (GESMC7F6) - Hub (d = 6F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.68€ excl. VAT
14.13€ incl. VAT
TRASCO ES 7 GESMC (GESMC7F6C) - Hub (d = 6F7, with Keyway, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
13.47€ excl. VAT
16.30€ incl. VAT
TRASCO ES 7 GESMC (GESMC7F7) - Hub (d = 7F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.68€ excl. VAT
14.13€ incl. VAT
TRASCO ES 7 GESMC (GESMC7F7C) - Hub (d = 7F7, with Keyway, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
13.47€ excl. VAT
16.30€ incl. VAT
TRASCO ES 9 GESMC (GESMC9F4) - Hub (d = 4F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.74€ excl. VAT
14.21€ incl. VAT
TRASCO ES 9 GESMC (GESMC9F5) - Hub (d = 5F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.74€ excl. VAT
14.21€ incl. VAT
TRASCO ES 9 GESMC (GESMC9F6) - Hub (d = 6F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.74€ excl. VAT
14.21€ incl. VAT
TRASCO ES 9 GESMC (GESMC9F6C) - Hub (d = 6F7, with Keyway, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
13.52€ excl. VAT
16.36€ incl. VAT
TRASCO ES 9 GESMC (GESMC9F7) - Hub (d = 7F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.74€ excl. VAT
14.21€ incl. VAT
TRASCO ES 9 GESMC (GESMC9F7C) - Hub (d = 7F7, with Keyway, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
13.52€ excl. VAT
16.36€ incl. VAT
TRASCO ES 9 GESMC (GESMC9F8) - Hub (d = 8F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.74€ excl. VAT
14.21€ incl. VAT
TRASCO ES 9 GESMC (GESMC9F8C) - Hub (d = 8F7, with Keyway, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
13.52€ excl. VAT
16.36€ incl. VAT
TRASCO ES 9 GESMC (GESMC9F9) - Hub (d = 9F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
11.74€ excl. VAT
14.21€ incl. VAT
TRASCO ES 9 GESMC (GESMC9F9C) - Hub (d = 9F7, with Keyway, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
13.52€ excl. VAT
16.36€ incl. VAT
TRASCO ES 12 GESMC (GESMC12F10) - Hub (d = 10F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
12.28€ excl. VAT
14.86€ incl. VAT
TRASCO ES 12 GESMC (GESMC12F11) - Hub (d = 11F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
12.28€ excl. VAT
14.86€ incl. VAT
TRASCO ES 12 GESMC (GESMC12F12) - Hub (d = 12F7, Al Alloy)
Shaft Coupling
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
12.28€ excl. VAT
14.86€ incl. VAT
Products are sorted by name in ascending order.

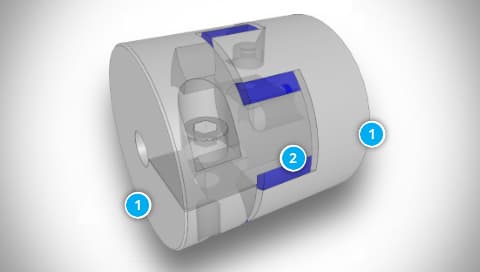

Shaft Coupling Construction
- GESMC compact clamping hubs of reduced length with a clamping joint and tightening screw
- Elastic star-shaped element
Typical Applications
SIT TRASCO ES zero-backlash elastic couplings with GESMC hubs are intended for the highest demands in a wide range of industries where the highest precision and minimum backlash are required.
They are used, for example, in machine tools, testing machines, fine mechanics, dynamometers and many other applications, particularly in the food, chemical, paper, metalworking and automotive industries.
Properties
- Torque transmission without backlash
- Vibration damping from the motor shaft (up to 80%)
- Easy and quick installation
- Couplings are resistant to oil, chemicals and high temperature
- Small size, low moment of inertia
Coupling Code Description
Example:
TRASCO ES 9 GESMC - Hub (d = 9F7, with Keyway, Al Alloy)
| Code Part | Description |
|---|---|
| TRASCO ES |
SIT couplings type |
| 9 |
Coupling size designation |
| GESMC |
Hub type |
| Hub |
Part name |
| d = 9F7 |
Finished hole diameter in mm |
| With Keyway |
Hub design |
| Al Alloy |
Hub material |
Documents for Download
Related Products
SIT TRASCO ES GESM Hubs (Clamping)
SIT TRASCO ES GESA Hubs (Shrink)
SIT TRASCO ES GESS Spacers (Double Shaft)
We also provide design and calculation of transmission components, including shaft couplings. In the case of your interest in this service, use the detailed Drive or Coupling Calculation Form.
