SIT-LOCK 30 MONOLOCK - 45 × 70 mm (CAL30F45/70)
Locking Bush
Price without VAT: 10.97€
Price including VAT: 13.28€ with VAT
Catalogue price excluding VAT:
11.19€
At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Specifications
Outside diameter of the bush. It is commonly denoted as D.
Inside diameter of the clamping element. It is commonly denoted as d.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Bush Description

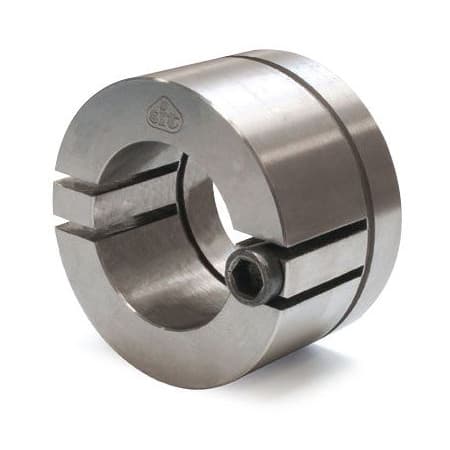

SIT-LOCK 30 MONOLOCK - 45 × 70 mm (CAL30F45/70) is a one-piece clamping element designed for quick and easy installation in applications with low to medium torque requirements.
It provides a secure, zero-backlash shaft-to-hub connection as an alternative to traditional connections using keys, keyways and splines.
The frictional connection is achieved by tightening a special screw with a tapered seating surface inside the conical bore of the single cylindrical ring. Once tightened, the component is capable of transmitting torque and is simultaneously secured against axial displacement.
Construction
- Cylindrical bush body
- Locking mechanism
- Keyless cylindrical bore
Typical Applications
SIT-LOCK 30 MONOLOCK elements are intended for general industrial use, particularly in applications that require quick installation, easy removal, and a compact design.

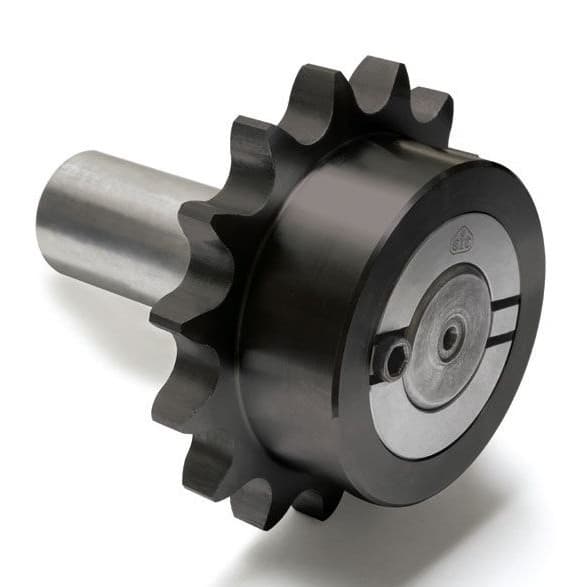

They are commonly used to mount V-belt, timing and flat pulleys, sprockets, flywheels, drums, and other components where a backlash-free shaft-to-hub connection is required without the use of keys or keyways.
Materials
Steel.
