SPB SUPER-T-LINK (with Metal Studs, Blue)

Link Open-Ended V-Belt

Price for you :

Price without VAT: 100.46

Price including VAT: 121.55 with VAT

Catalogue price excluding VAT:
102.47

At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Belt Parameters

Profile: SPB
Délka L2 (mm): role 30m Length L
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
Brand: Fenner Drives
Weight (kg): 0.400
Length Ld (mm): 1,00
Width (mm): 17,00
Material: Polyamide with Steel Tensile Fiber Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation PA+ST.

Belt Description

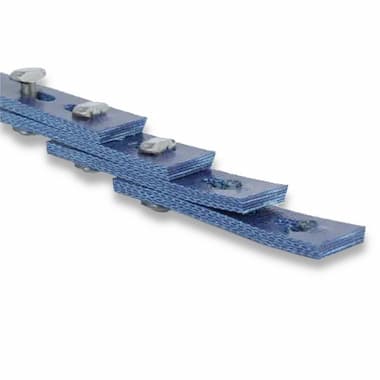

SPB SUPER-T-LINK (with Metal Studs, Blue) is a V-belt connected from individual links into endless belts of any length.

The belts have a special construction, the individual links are made of custom polyurethane elastomers reinforced with multiple plies of polyester fabric. The belts are characterized by long service life, high temperature and chemical resistance.

Belt Construction

Link V-Belts Structure

  1. Polyurethane elastomer
  2. Reinforced with multiple plies of polyester fabric

Belt Fields of Use

Link V-belts are used where conventional endless V-belts cannot be used due to technical reasons, where it is necessary to mount the belt directly on the machine. They are suitable as spare belts, which can replace any length of V-Belt.

They are also used in conveyor systems and equipment where specific temperature or chemical resistance is required.

Belt Characteristics

  • High power transmission
  • High durability, low maintenance costs
  • Use of standardized SPZ, SPA, SPB, SPC pulleys
  • Resistant to oil and various chemicals
  • Temperature resistance from −40 °C to +105 °C
  • Possibility of delivery of any length from the roll

Documents for Download

Dimensions and Parameters of Link Open-Ended V-Belts - Preview

Dimensions and Parameters of Link Open-Ended V-Belts

TYMA CZ Data Sheets

Czech and English (PDF 229.11 kB)

Drive Belts - Preview

Drive Belts

TYMA CZ Catalogue

Czech and English (PDF 4.54 MB)
