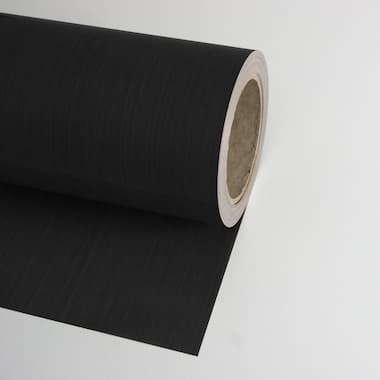

TF 25-59-490 AS (0.25 × 1000 mm) - Non-Adhesive (Antistatic)
PTFE Coated Fabric
Price without VAT: 75.54€
Price including VAT: 91.40€ with VAT
Catalogue price excluding VAT:
77.08€
The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.
At supplier,
we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
PTFE Foil Parameters
Multiple belts: profile – no. of ribs. Caution! The number of ribs refers to the number of belt protrusions = the number of teeth on the pulley!
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation PTFE+glassfa.
PTFE Foil Description
Non-self-adhesive PTFE foils are made of glass fabric, which is coated with highly resistant PTFE.
They are characterized by excellent temperature and chemical resistance and excellent sliding properties. They are also suitable for use in FDA food contact. In addition, black foils have antistatic properties.
The foils are supplied in many thicknesses in basic rolls that are 1.0 m wide (up to 2.0 m for some types). They can be cut into tapes or specific shapes.
PTFE Foil Construction
- Teflon bottom layer
- Glass or Kevlar fabric
- Teflon top layer
PTFE Foil Fields of Use
Non-self-adhesive PTFE foils are designed for use in all industries where non-stick properties, low coefficient of friction and at the same time high temperature and chemical resistance or health safety and food contact certificate are required.
They are used in the chemical, food, automotive industry, in stamping, welding, packaging machinery and in other equipment.
The use as a baking foil in bakeries or at home is also very well known and widespread.
PTFE foils can be joined into endless conveyor belts, which are used in many industries.
PTFE Foil Characteristics
- Temperature resistance from −170 °C to +260 °C
- Non-flammable
- High chemical resistance, resistance to acids, degreasers, gasoline, oil, etc.
- Mold resistance
- Resistance to UV radiation, infrared and high frequency radiation
- Possibility of use in contact with food
- Non-stick surface, low coefficient of friction
- Very long service life, resistance to aging
- Easy to wash, the surface does not get dirty
Documents for Download
Dimensions and Parameters of PTFE Glass Fabrics
TYMA CZ Data Sheets
Czech and English (PDF 137.27 kB)
