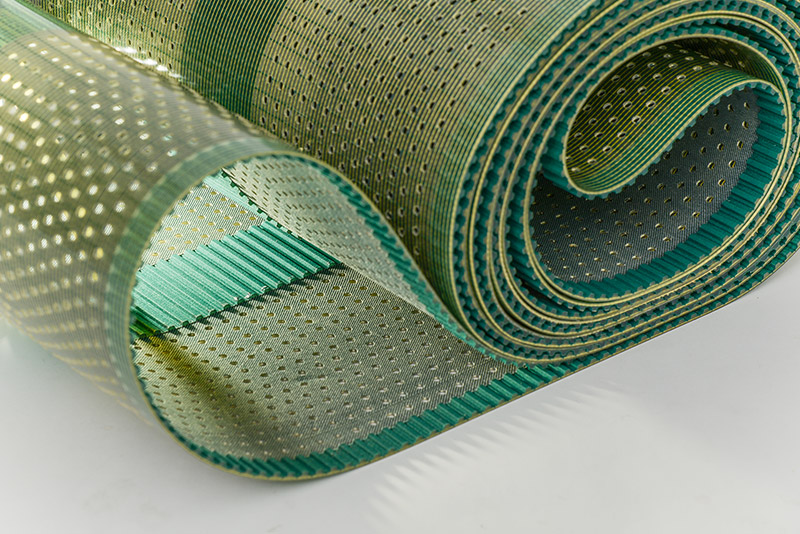

SYNCRO-MAX Extra-Wide Polyurethane Timing Belts
SYNCRO-MAX special extra-wide polyurethane timing belts are available with a width of up to 500 mm in T10 profile and H inch profile.
The base body is made of aramid tensile fiber. The teeth and back of the belt are made of thermoplastic polyurethane, which has high dimensional stability and wear resistance.
The open-ended belts can be welded into endless belts.
Typical Applications
SYNCRO-MAX polyurethane timing belts are used in special areas where it is necessary to ensure completely accurate transport of products or materials using wide conveyor belts.
They are mainly used in conveyors, packaging machines, in the production of hygiene products, tires and in many other industrial fields.
Belt Code Description
Example:
T10 - 300 - 8920 SYNCRO-MAX
| Code Part | Description |
|---|---|
| T |
Profile |
| 10 |
Tooth pitch in mm |
| 300 |
Belt width in mm |
| 8920 |
Belt length in mm |
| SYNCRO-MAX |
Type of belt (Extra-Wide) |
Optional Belt Surface Layers
The choice of the surface layer depends on the type of machine, the ambient temperature, the size of the pulleys, etc. Specifying the surface layer is determined by the material and the thickness of the layer.
| Layer Name | Material | Layer Illustration |
|---|---|---|
| PAZ (NFT) - nylon fabric on teeth Low coefficient of friction |
Nylon |  |
| PAR (NFB) – nylon fabric on back Surface protection |
Nylon |  |
| PAZ + PAR (NFT + NFB) – fabric on teeth and back Low coefficient of friction and surface protection |
Nylon |  |
The fabric on teeth and back can be combined with all other layers. A complete range of belt surface layers
