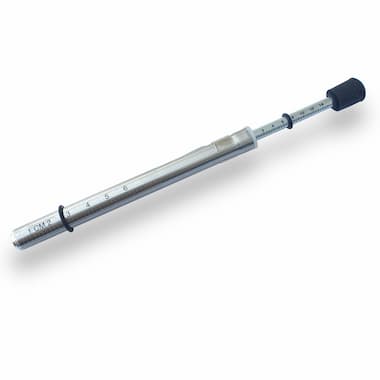

TYMA Belt Control 1 Belt Tension Tester
Measuring Instrument
Price without VAT: 23.54€
Price including VAT: 28.48€ with VAT
Catalogue price excluding VAT:
23.99€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Specifications
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Instrument Description
The TYMA BELT CONTROL 1 measuring instrument is mechanical. It is used for quick and easy measurement and check of V-belt or timing belt pretension.
The device works on the principle of a dynamometer, i.e. the mechanical action of force given according to the table in the middle of the measured branch and derivation of the deflection of the measured branch, which must correspond to the tabulated values or calculated data.
Proper belt tension is very important for the drive operation and for maintaining its expected service life. The exact values of the parameters for determining the correct preload are given by the calculation program or according to the belt calculation manuals.
Measurement Range
TYMA BELT CONTROL 1 is designed for measurements within the following ranges:
- Compression force range: 0–15.9 kg (0–35 lbs)
- Belt width range: up to 25.4 mm (1″ width)
- Belt pretension range: 0–255 kg (0–560 lbs)
