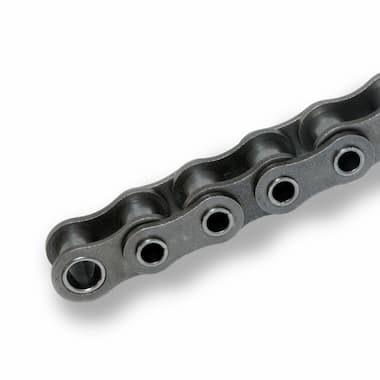

10A-1-SS-HP (Type A) KettenWulf HP SS (Stainless Steel, Hollow Pins, ASA 50-1, 5/8″ × 3/8″, DIN 8188) - 5 m Pack (+ 2 Connecting Links)
Hollow Pin Chain
INOX – Stainless SteelHigh-alloy steel with increased resistance to chemical and electrochemical corrosion.
Suitable especially for the food, chemical and pharmaceutical industries, demanding operating conditions and the outdoor environment, but also for all applications where the use of corrosion-resistant materials is required by law.
Specifications
In the TYMA Product Catalogues you can find this material also described with the abbreviation SS.
Chain Description
10A-1-SS-HP (Type A) KettenWulf HP SS (Stainless Steel, Hollow Pins, ASA 50-1, 5/8″ × 3/8″, DIN 8188) - 5 m Pack (+ 2 Connecting Links) is a special type of chain that combines driving and conveying functions. It is based on the standard construction of roller chains according to ISO 606, but with one key difference: each pin is hollow.
The design version is designated as Type A – it indicates that this is a bush chain consisting of outer links with pins and inner links with solid bushings, which ensure connection and movement between the links.
The hollow pins run through the entire width of the link and allow easy attachment of accessories – bolts, shafts, cross rods, or special carriers can be inserted through them.
The chain is made of stainless steel.
Construction
- Inner link
- Outer link
- Hollow Pin
- Bush
- Roller
Typical Applications
Hollow pin chains based on ISO 606 are intended primarily for conveying and handling applications where system flexibility and modularity are required.
They are most commonly used in smaller conveyors, typically in pairs as parallel chains connected by cross rods or other suitable attachments. They are also employed in packaging and filling machines, in the food and automotive industries, in woodworking lines, and in a wide range of special applications.
Materials
Stainless steel.
Documents for Download
Dimensions and Parameters of Hollow Pin Chains to DIN 8187 / DIN 8188
TYMA CZ Data Sheets
Czech and English (PDF 157.90 kB)
Related Products
Roller Chains with Attachments
Roller chains with plastic attachments, U-type attachments, vulcanised elastomer profiles and many other variants.
Sprockets and Plate Wheels
With hub or flat (discs) for roller chains according to DIN 8187 (06B, 08B, 10B...) and other non-standard sprockets made to order.
Universal Chain Tensioners
Sliding blocks, sprockets with screw and idler sprockets for tensioning of industrial roller chains during operation.
Sliding Chain Guides for Separate Mounting
Standard chain sliding guides fixed separately directly on the machines.
Questions about This Product?
Don’t hesitate to contact us – our specialists will be happy to help with any questions about this chain.
Chain Manufacturer Profile
KettenWulf is a German manufacturer of conveyor chains, drive chains, and sprockets. Its high-quality products are valued by customers worldwide across a wide range of industries – from mechanical engineering, automotive, and the steel industry to construction, water treatment, paper production, and wood processing.
Today, KettenWulf develops, manufactures, and distributes standard as well as custom solutions with more than 1,400 employees at ten sites across Europe, the Americas, and Asia.
We are an authorized distributor of conveyor chains and drive chains from KettenWulf Betriebs GmbH.
