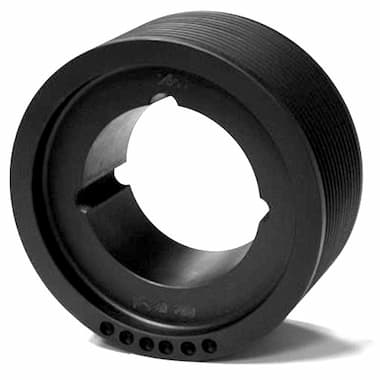

112 PL-12 TB 2012 (Widht of the Border B=62 mm)

Poly-V-Belt Pulley

Price for you :

Price without VAT: 52.49

Price including VAT: 63.51 with VAT

Catalogue price excluding VAT:
53.53

In Stock

Pulley Parameters

Profile: PL
Diameter Dm (mm): 112.00
No. of grooves: 12
Width L (mm): 67.00
Bore: TB 2012
Brand: -
Material: Grey Cast Iron
Weight (kg): 2.020

Pulley Description

112 PL-12 TB 2012 (Widht of the Border B=62 mm) is the basic type of poly-V-belt pulleys in PL profile. It is made from gray cast iron. Its design is based on the ISO 9982 (DIN 7867).

The standard pulleys are mounted on shafts using the Taper Lock bushes (TB 2012).

Pulley Fields of Use

The PL poly-V-belt pulleys are designed for all PL poly-V-belts with groove pitch of 4.7 mm.

They are typically used in compact compressor drives, blowers, machine tools, pumps, in the paper, chemical and automotive industries, garden technology and in many other machines.

Pulley Material

Steel, cast iron or other materials..

Other materials to order.

Parameter Standard
Surface roughness ISO 254
Balance quality grade VDI 2060, ISO 1940

Notice

The pulleys can be balanced dynamically in two planes on request.

Documents for Download

Dimensions and Parameters of PL Poly-V-Belt Pulleys

TYMA CZ Data Sheets

Czech and English (PDF 186.38 kB)

Pulleys and Clamping Bushes

TYMA CZ Catalogue

Czech and English (PDF 3.64 MB)

CONTI-V MULTIRIB

ContiTech Product Overview

English and German (PDF 4.17 MB)
