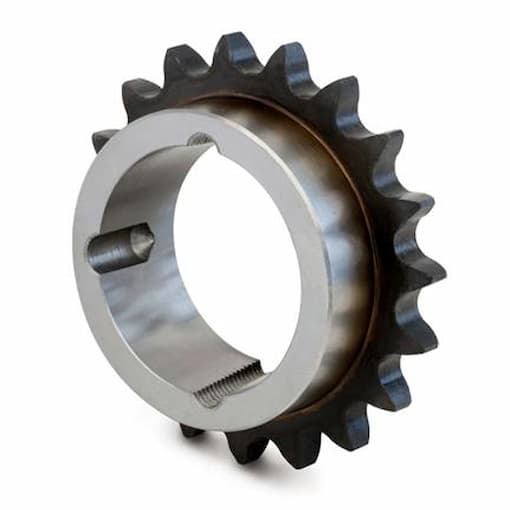

12B-1-17-TK (3/4” × 7/16”) - 17 Teeth, TB 1610, Hardened Teeth (Steel)
Sprocket
Price without VAT: 12.59€
Price including VAT: 15.24€ with VAT
Catalogue price excluding VAT:
12.84€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Sprocket Parameters
Overall width of the sprocket. For sprockets with a tapered bore and hardened teeth, it is commonly denoted as H.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Sprocket Description
12B-1-17-TK (3/4” × 7/16”) - 17 Teeth, TB 1610, Hardened Teeth (Steel) sprockets are designed for drives with all types of 12B-1 (3/4″ × 7/16″) simplex roller chains of the so-called European series (B-series), standardized to ISO 606 (DIN 8187).
The sprockets are mounted on the shaft using Taper Lock bushes, which ensure a secure and precise fit. Additionally, the keyway provides reliable axial fixation against displacement.
Sprocket Fields of Use
12B taper bored sprockets with hardened teeth for DIN 8187 chains are designed for general use in light and medium-duty industries.
They are primarily used in drives but can also be utilized for lifting or material transport.
Sprocket Material
C43 steel.
Other materials available on request.
Documents for Download
Dimensions and Parameters of Taper Bored Sprockets with Hardened Teeth for DIN 8187 Roller Chains
TYMA CZ Data Sheets
Czech and English (PDF 262.51 kB)
